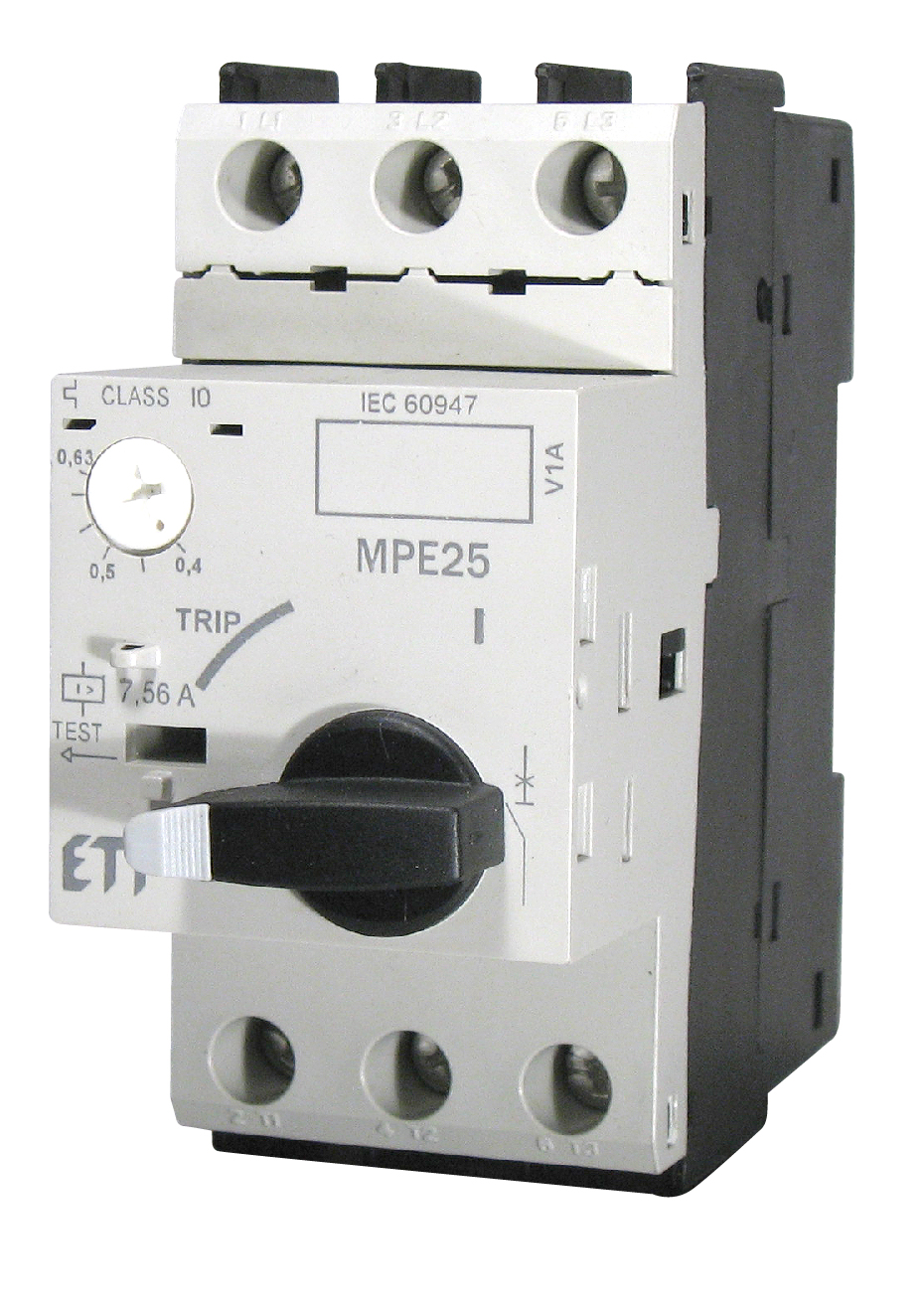

MPE25-40 Wyłącznik silnikowy
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ETICON |
| Symbol | 004648015 |
| GTIN(EAN) | 7899058055550 |
| Price unit | piece |
| Catalog price | 591,91 zł (481,23 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 340,8 g |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 32 - 40 A |
| Adjustment range undelayed short-circuit release: | 520 - 520 A |
| With thermal overload protection: | yes |
| Phase failure sensitive: | yes |
| Switch off technique: | Thermomagnetic |
| Rated operating voltage: | 400 - 690 V |
| Rated permanent current Iu: | 40 A |
| Rated operation power at AC-3, 230 V: | 11 kW |
| Rated operation power at AC-3, 400 V: | 18.5 kW |
| Type of electrical connection of main circuit: | Frame clamp |
| Type of control element: | Turn button |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 30 kA |
| Degree of protection (IP): | IP20 |
| Height: | 97 mm |
| Width: | 45 mm |
| Depth: | 98 mm |
