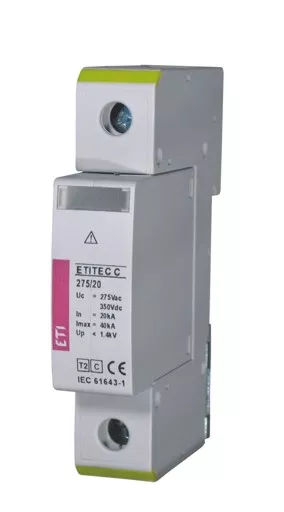

ETITEC C 275/20 (4P) Ogranicznik przepięć klasy C

Information Value
Supplier ETI-POLAM Sp. z o.o.
Symbol 002441512
GTIN(EAN) 3838757000809
Price unit piece
Product withdrawn This product is not produced any more. It might still be available if some wholesaler has it in it's stock
Sale price from 221,40 zł / szt. (180,00 zł + 23 % VAT)
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

Additional features:

Information Value
Net weight: 465 g
ETIM class: Surge protection device for power supply systems
Nominal discharge surge current (8/20): 20 kA
Nominal voltage AC: 230 V
Max. continuous voltage AC: 275 V
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 4 modular spacing
Voltage protection level: 1.5 kV
Max. conductor cross section solid (solid, stranded): 25 mm²
Max. conductor cross section flexible (fine-strand): 25 mm²
Integrated backup fuse: no
Signalling at the device: Optical
Category type 2: yes
System configuration DC: no
System configuration IT: no
System configuration TN-C: no
System configuration TN-S: yes
System configuration TT: no
System configuration other: no
Short-circuit breaking capacity (Isccr): 25 kA
Max. discharge surge current (8/20): 40 kA
With remote signalling contact: no
Degree of protection (IP): IP20
