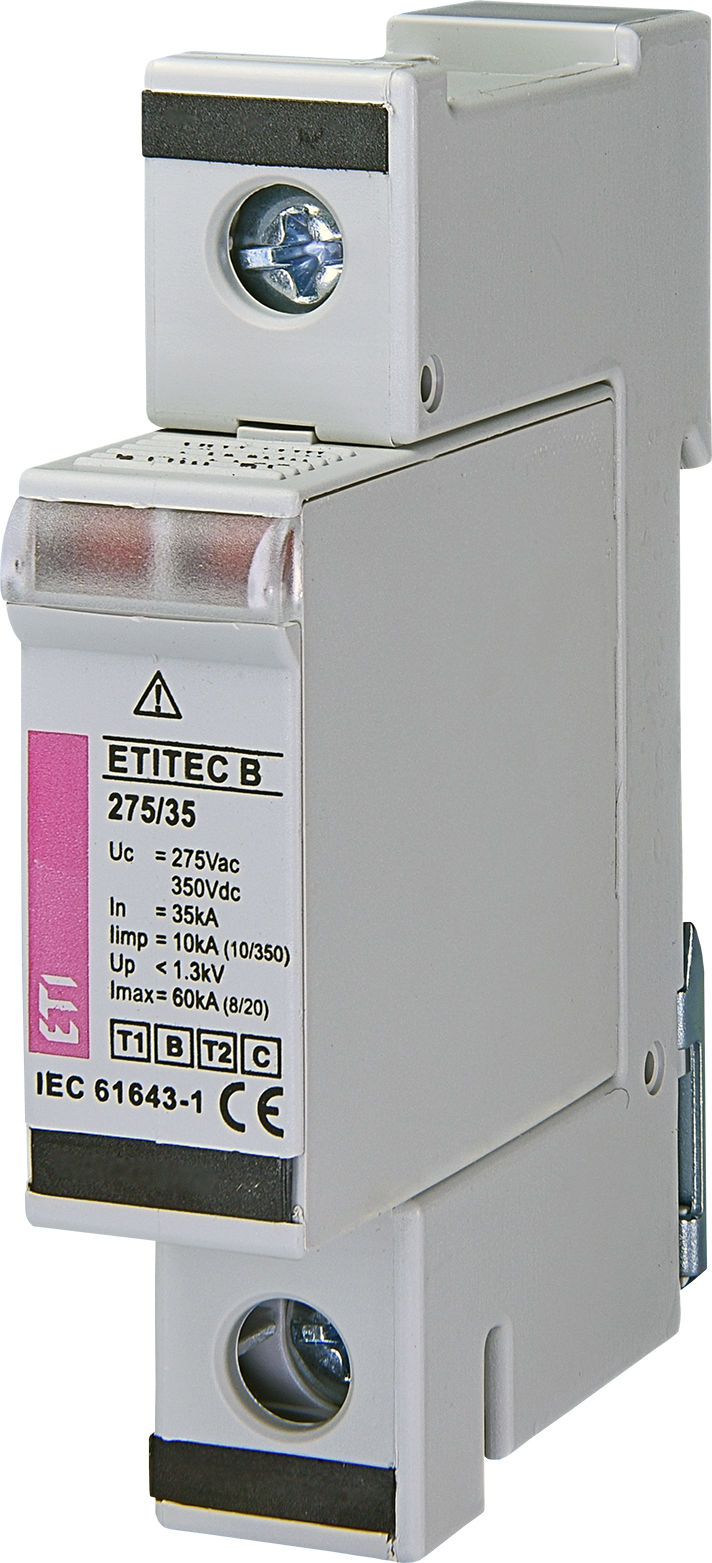

ETITEC B 275/35 (8/20) Ogranicznik przepięć Typ 1 (kl. B)
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Symbol | 002441460 |
| GTIN(EAN) | 3838757221907 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 92,99 zł / szt. (75,60 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Do wyczerpania zapasów magazynowych. Może być zastąpiony przez ETITEC B T12 275/7 1+0.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 141 g |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | yes |
| System configuration TN-S: | yes |
| System configuration TT: | no |
| System configuration other: | no |
| Number of poles: | 1 |
| Specific energy (W/R): | 306 kJ/Ω |
| Remote signalling: | no |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | no |
| Lightning impulse current (10/350 µs): | 35 kA |
| Max. continuous voltage AC: | 275 V |
| Nominal voltage AC: | 230 V |
| Voltage protection level: | 1,4 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 2 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Signalling at the device: | Optical |
| Degree of protection (IP): | IP20 |
