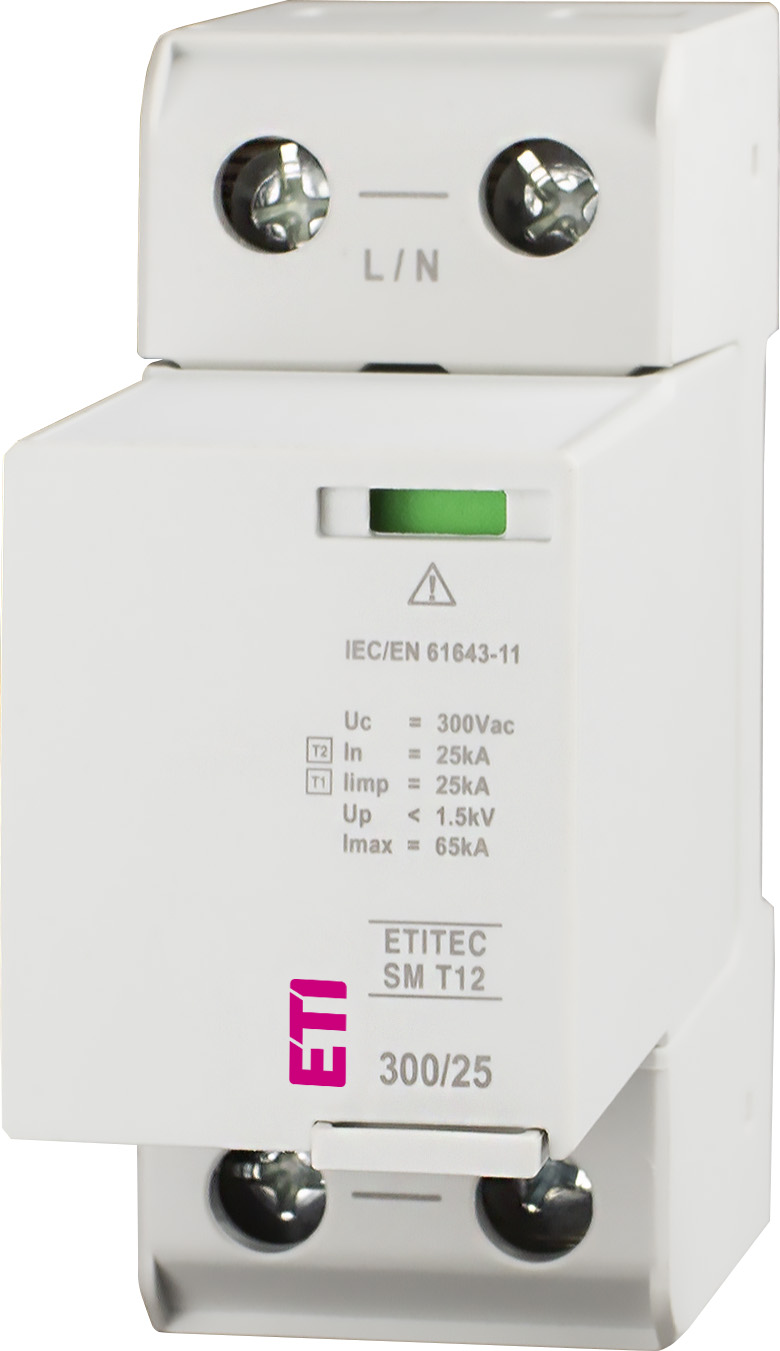

ETITEC SM T12 300/25 1+0 Ogranicznik przepięć T1, T2 (B, C) - bez prądu upływu
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ETITEC |
| Symbol | 002440738 |
| GTIN(EAN) | 3838895966333 |
| Price unit | piece |
| Catalog price | 894,68 zł (727,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 295 g |
| ETIM class: | Combined arrester for power supply systems |
| Number of poles: | 1 |
| Lightning impulse current (10/350 µs): | 25 kA |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Signalling at the device: | Optical |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | yes |
| System configuration TN-S: | yes |
| System configuration TT: | no |
| System configuration other: | no |
| Max. continuous voltage AC: | 300 V |
| Nominal voltage AC: | 240 V |
| Voltage protection level: | 1.5 kV |
| Specific energy (W/R): | 156.2 kJ/Ω |
| Construction size: | 2 modular spacing |
| Remote signalling: | no |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | no |
| Degree of protection (IP): | IP20 |
