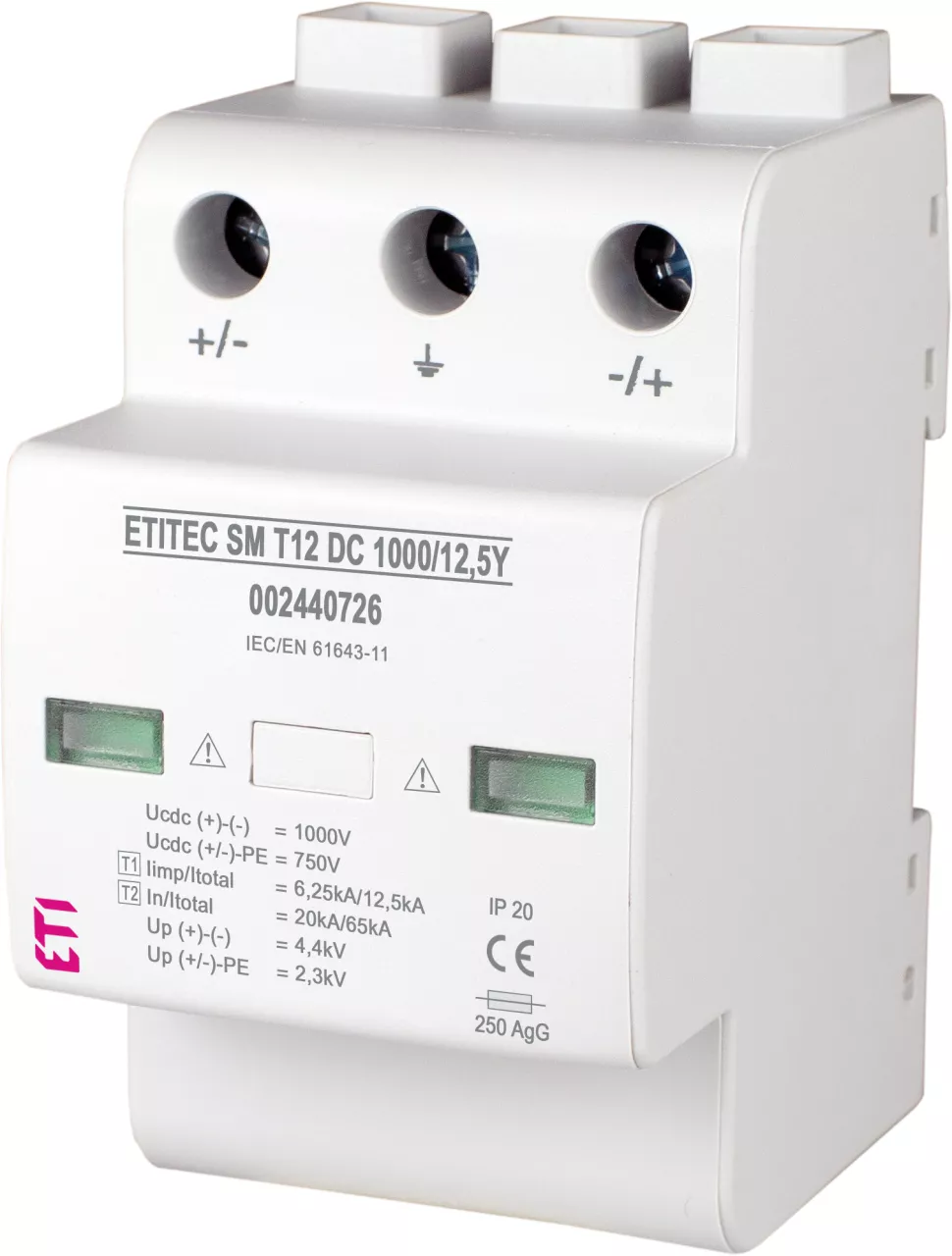

ETITEC SM T12 DC 1000/12,5 Y Ogranicznik przepięć T1, T2 (B, C) - DC - bez prądu upływu
Information | Value |
---|---|
Supplier | ETI-POLAM Sp. z o.o. |
Series | ETITEC |
Symbol | 002440726 |
GTIN(EAN) | 3838895966098 |
Price unit | piece |
Catalog price | 1 184,15 zł (962,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 388 g |
ETIM class: | Combined arrester for power supply systems |
Lightning impulse current (10/350 µs): | 6.25 kA |
Max. continuous voltage DC: | 1000 V |
Nominal voltage DC: | 900 V |
Voltage protection level (DC+ - DC-): | 4.4 kV |
Voltage protection level (DC+/DC- - PE): | 2.3 kV |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 3 modular spacing |
Remote signalling: | no |
Signalling at the device: | Optical |
System configuration DC: | yes |
System configuration IT: | no |
System configuration TN-C: | no |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | no |
Number of poles: | 3 |
Specific energy (W/R): | 9.77 kJ/Ω |
Test class: | Type 1 + 2 |
Integrated backup fuse: | no |
