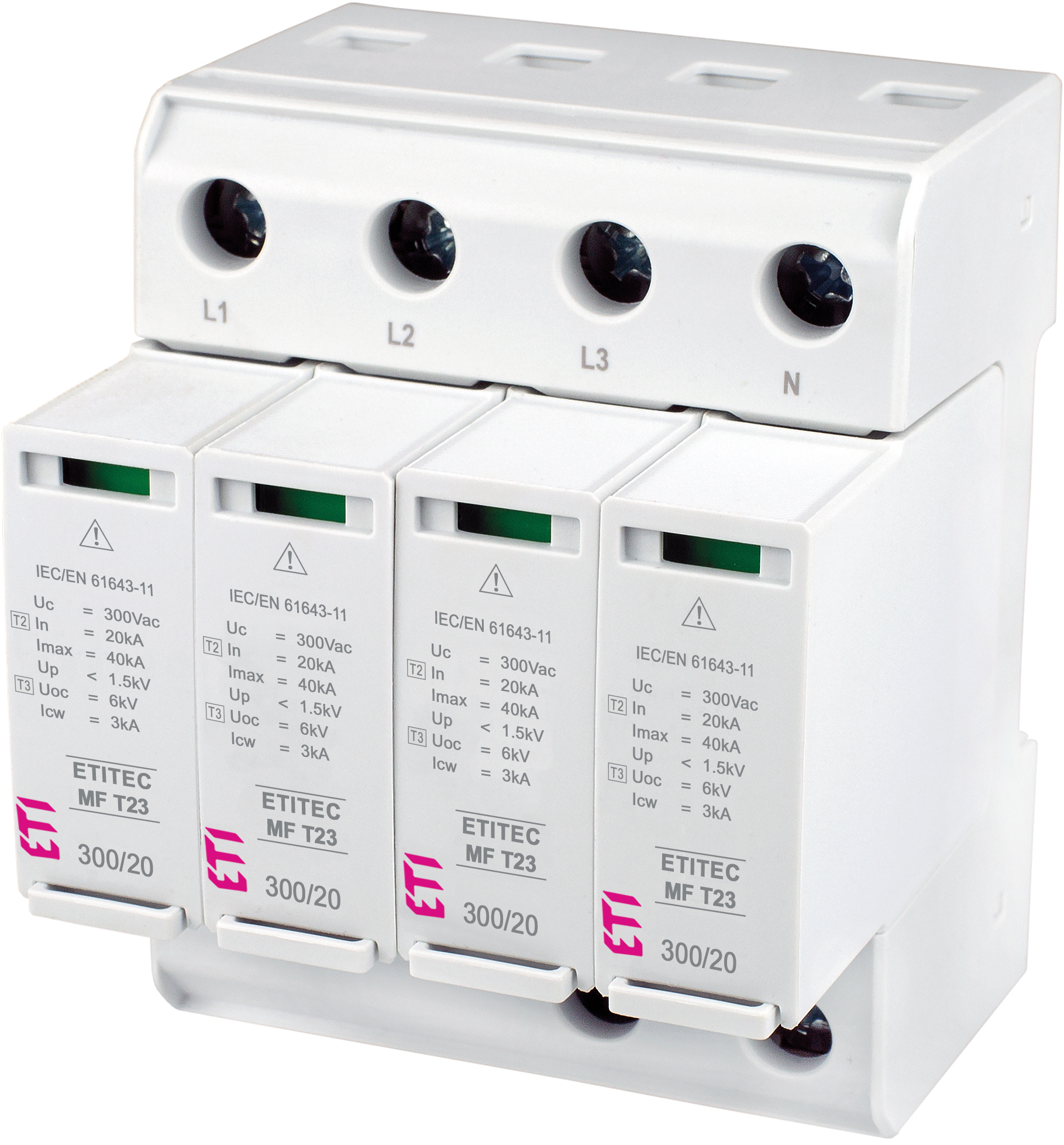

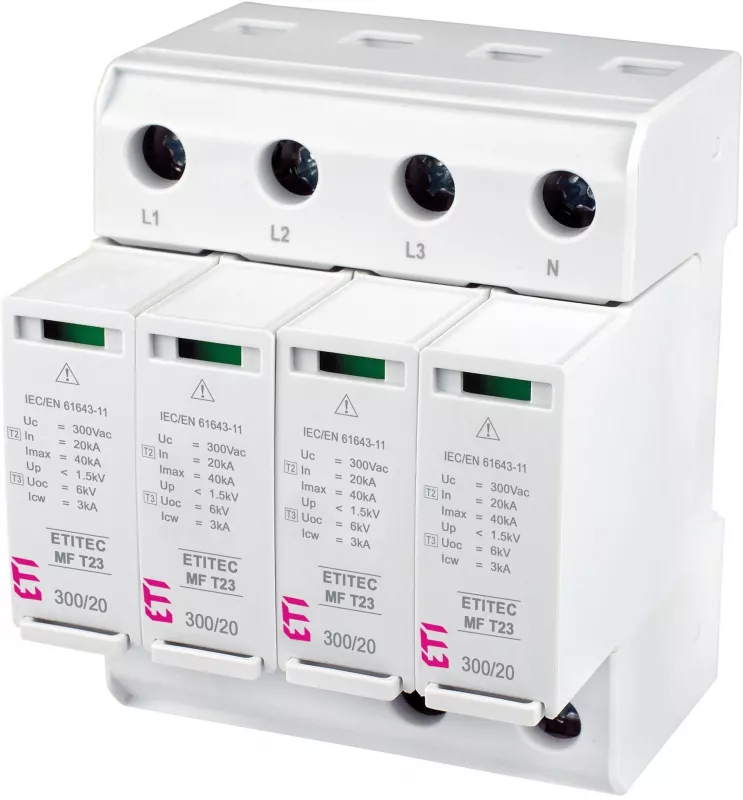

ETITEC MF T23 300/20 2+0 Ogranicznik przepięć T2, T3 (C, D) - z wkładką topikową
Information | Value |
---|---|
Supplier | ETI-POLAM Sp. z o.o. |
Series | ETITEC |
Symbol | 002440702 |
GTIN(EAN) | 3838895965619 |
Price unit | piece |
Catalog price | 1 010,46 zł (821,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 268 g |
ETIM class: | Surge protection device for power supply systems |
Nominal discharge surge current (8/20): | 20 kA |
Max. continuous voltage AC: | 300 V |
Max. discharge surge current (8/20): | 40 kA |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
Degree of protection (IP): | IP20 |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN-C: | no |
System configuration TN-S: | yes |
System configuration TT: | no |
System configuration other: | no |
Nominal voltage AC: | 240 V |
Short-circuit breaking capacity (Isccr): | 50 kA |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 2 modular spacing |
Voltage protection level: | 1.5 kV |
With remote signalling contact: | no |
Integrated backup fuse: | yes |
Signalling at the device: | Optical |
Category type 2: | yes |
