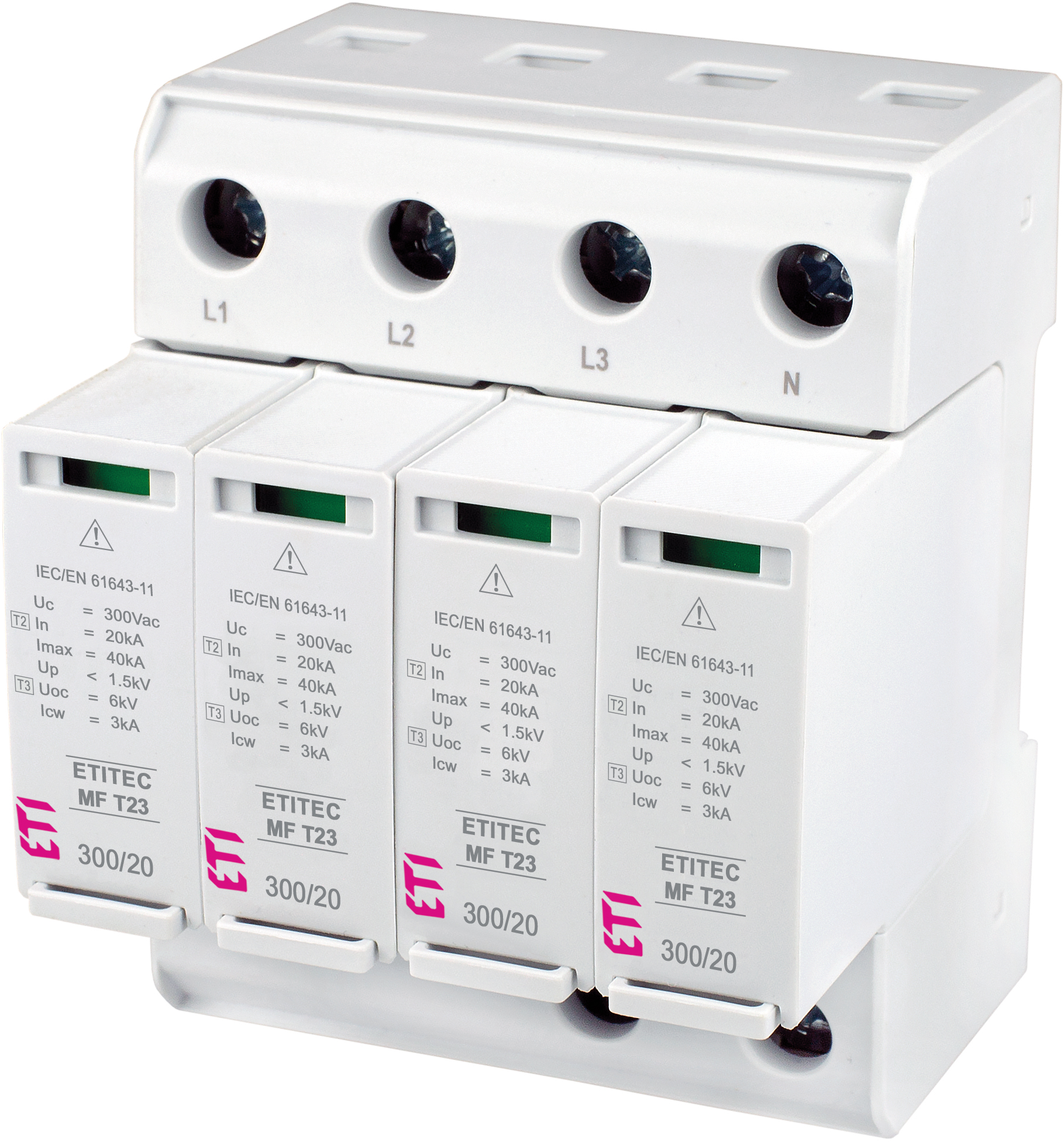

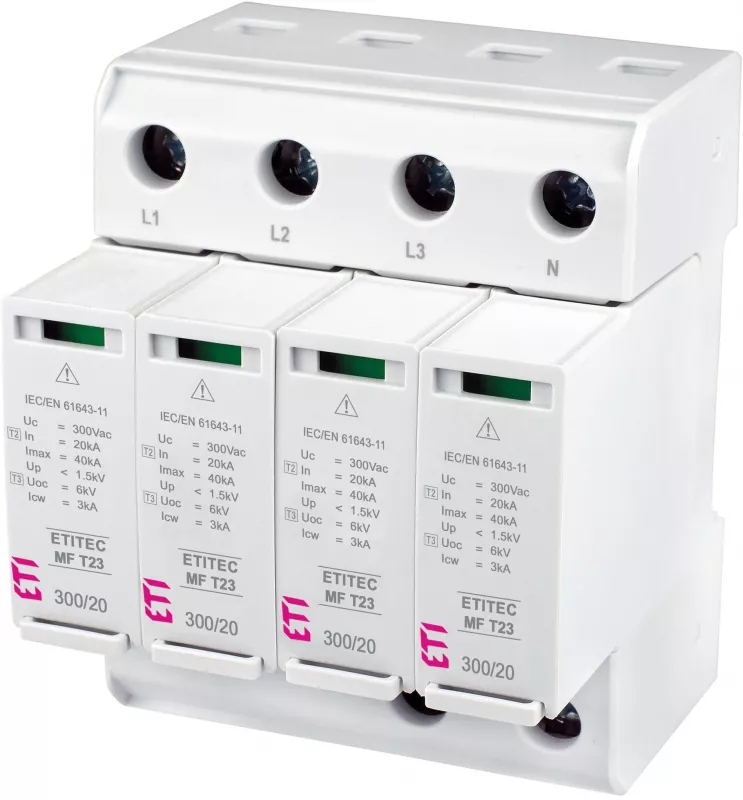

ETITEC MF T23 300/20 1+0 RC Ogranicznik przepięć T2, T3 (C, D) - z wkładką topikową
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ETITEC |
| Symbol | 002440701 |
| GTIN(EAN) | 3838895965596 |
| Price unit | piece |
| Catalog price | 571,02 zł (464,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 155 g |
| ETIM class: | Surge protection device for power supply systems |
| Nominal discharge surge current (8/20): | 20 kA |
| Max. continuous voltage AC: | 300 V |
| Max. discharge surge current (8/20): | 40 kA |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Degree of protection (IP): | IP20 |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | yes |
| System configuration TN-C: | yes |
| System configuration TN-S: | yes |
| System configuration TT: | no |
| System configuration other: | no |
| Nominal voltage AC: | 240 V |
| Short-circuit breaking capacity (Isccr): | 50 kA |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 1 modular spacing |
| Voltage protection level: | 1.5 kV |
| With remote signalling contact: | yes |
| Integrated backup fuse: | yes |
| Signalling at the device: | Optical |
| Category type 2: | yes |
