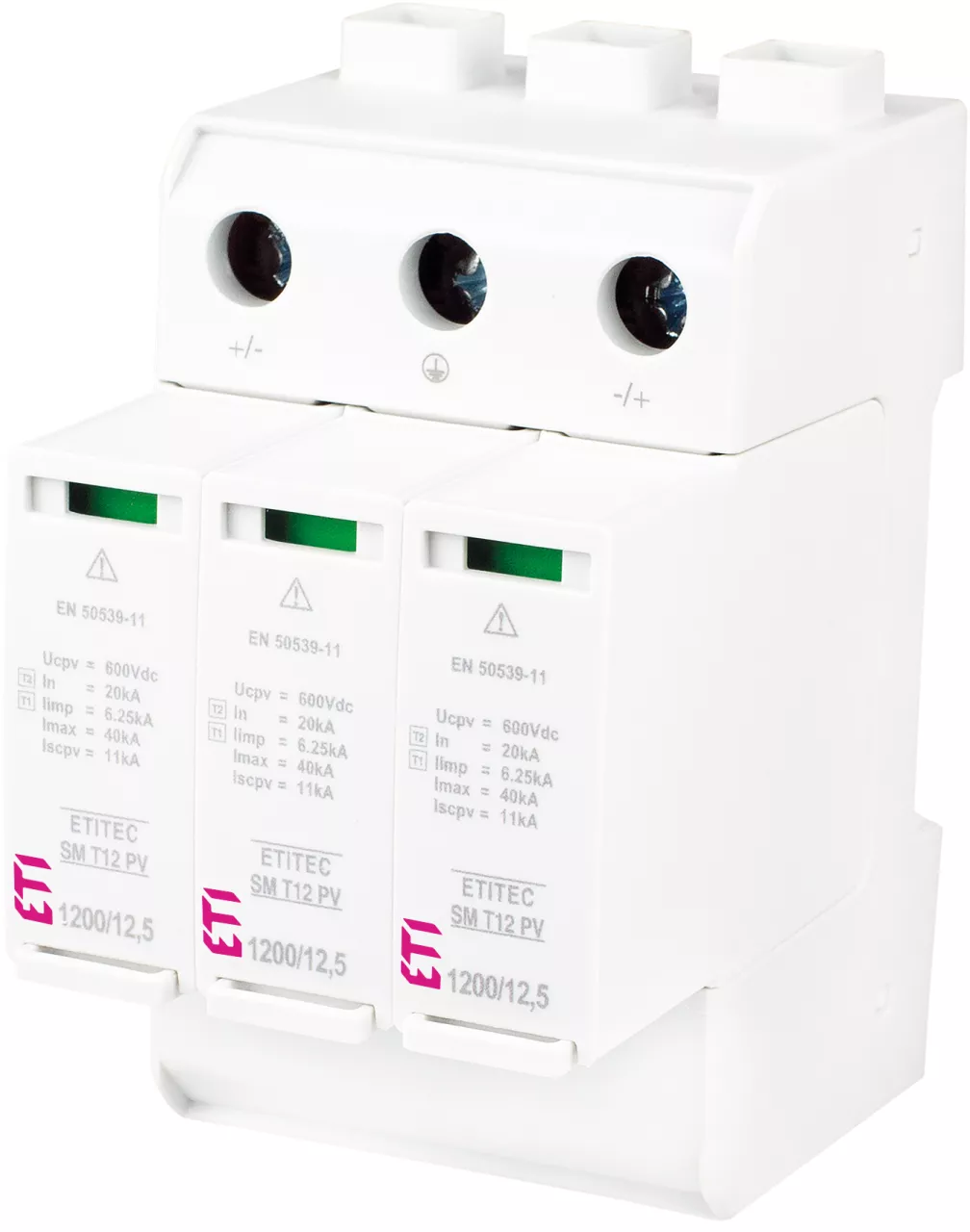

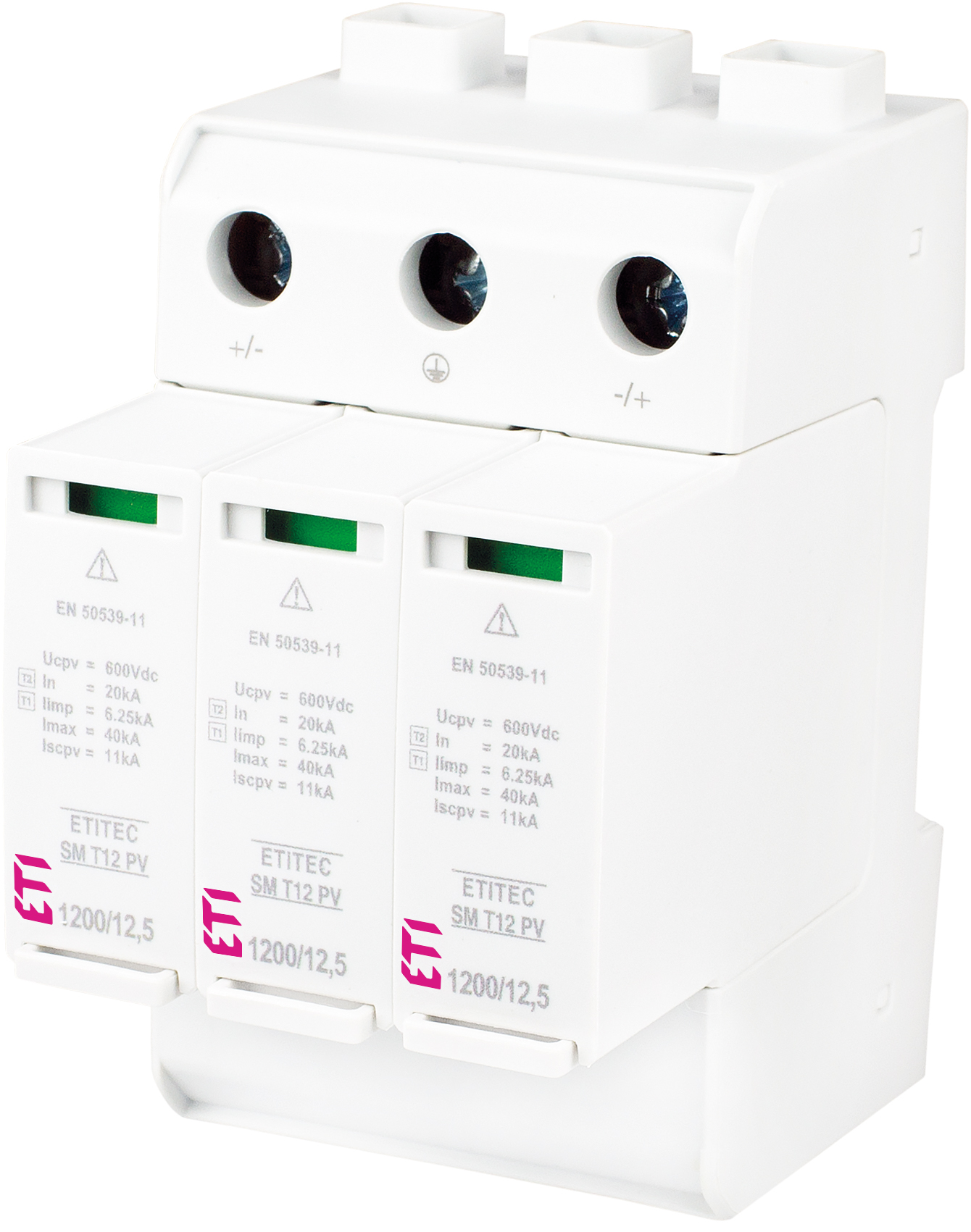

ETITEC SM T12 PV 1200/12,5 Y Ogranicznik przepięć T1, T2 (B, C) - do systemów PV
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | Green Protect |
| Symbol | 002440630 |
| GTIN(EAN) | 3838895878124 |
| Price unit | piece |
| Catalog price | 707,80 zł (575,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 374 g |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | yes |
| Number of poles: | 3 |
| Lightning impulse current (10/350 µs): | 6.25 kA |
| Max. continuous voltage DC: | 1200 V |
| Voltage protection level: | 4.4 kV |
| Voltage protection level (DC+/DC- - PE): | 2.2 kV |
| Specific energy (W/R): | 9.77 kJ/Ω |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 3 modular spacing |
| Remote signalling: | no |
| Signalling at the device: | Optical |
| Degree of protection (IP): | IP20 |
