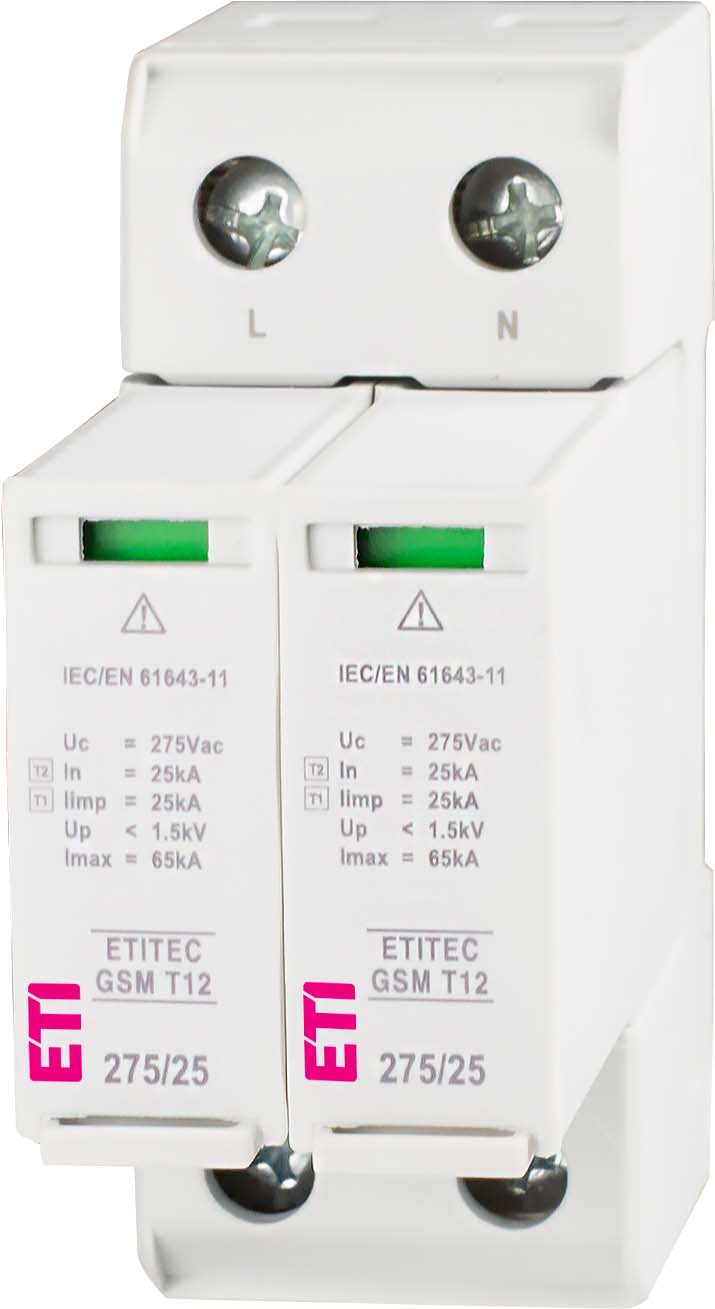

ETITEC GSM T12 275/25 2+0 Ogranicznik przepięć T1, T2 (B, C) - iskiernik
Information | Value |
---|---|
Supplier | ETI-POLAM Sp. z o.o. |
Series | ETITEC |
Symbol | 002440604 |
GTIN(EAN) | 3838895877721 |
Price unit | piece |
Catalog price | 2 163,98 zł (1 759,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 340 g |
ETIM class: | Combined arrester for power supply systems |
Number of poles: | 2 |
Lightning impulse current (10/350 µs): | 25 kA |
Max. continuous voltage AC: | 275 V |
Nominal voltage AC: | 230 V |
Voltage protection level: | 1.55 kV |
Specific energy (W/R): | 156.2 kJ/Ω |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 2 modular spacing |
Signalling at the device: | Optical |
Integrated backup fuse: | no |
Degree of protection (IP): | IP20 |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN-C: | no |
System configuration TN-S: | yes |
System configuration TT: | no |
System configuration other: | no |
Follow current extinguishing capability: | 50 kA |
Remote signalling: | no |
Test class: | Type 1 + 2 |
