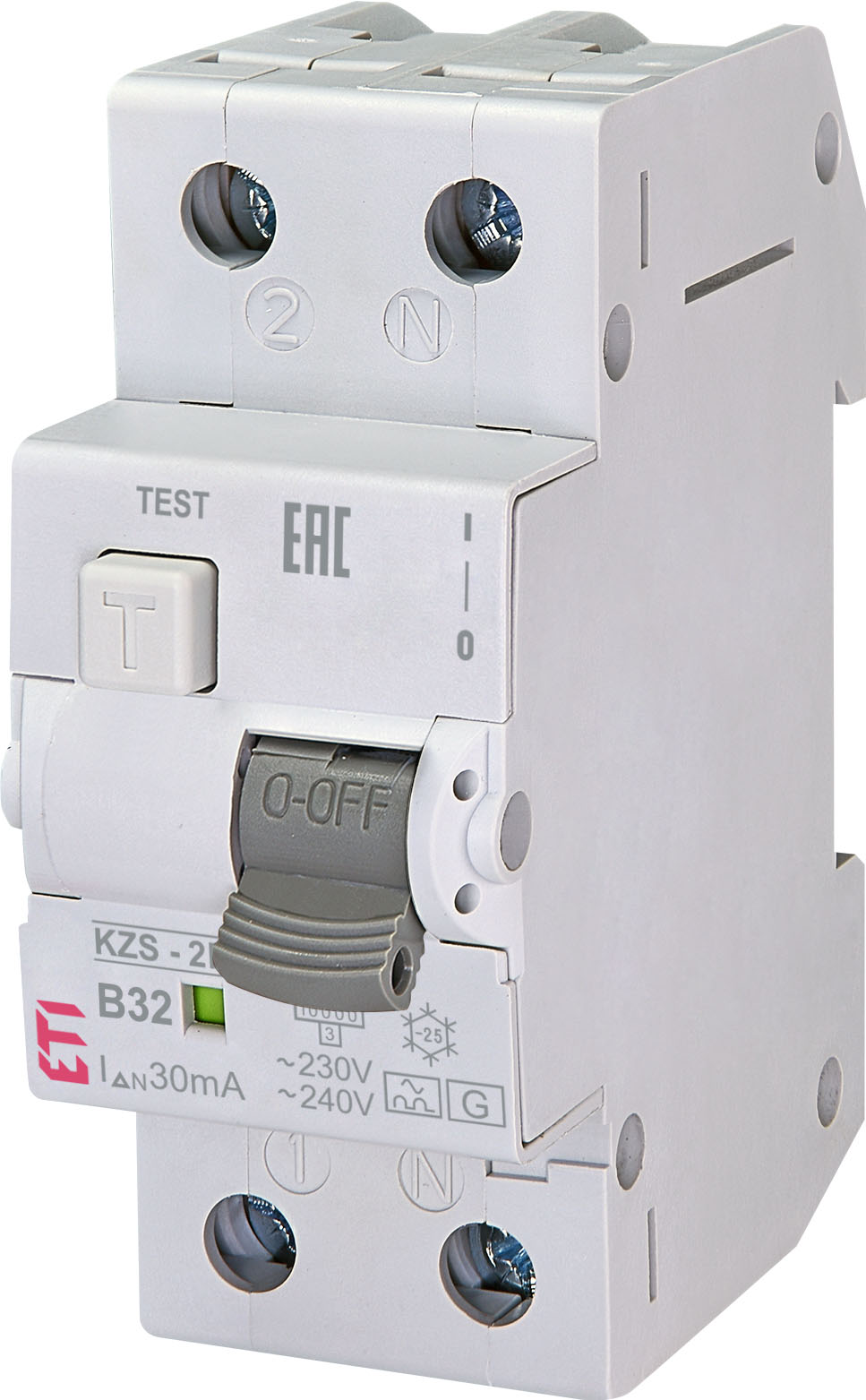

KZS-2M A G/KV B32/0.03 Wyłącznik różnicowoprądowy z zabezpieczeniem nadprądowym
Information | Value |
---|---|
Supplier | ETI-POLAM Sp. z o.o. |
Series | ASTI |
Symbol | 002174107 |
GTIN(EAN) | 3838895804277 |
Price unit | piece |
Catalog price | 783,13 zł (636,69 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 225 g |
ETIM class: | Earth leakage circuit breaker |
Number of poles (total): | 2 |
Number of protected poles: | 1 |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 500 V |
Rated current: | 32 A |
Rated fault current: | 0.03 A |
Leakage current type: | A |
Current limiting class: | 3 |
Rated short-circuit breaking capacity according to EN 61009: | 10 kA |
Surge current capacity: | 3 kA |
Frequency: | 50 Hz |
Release characteristic: | B |
Concurrently switching neutral conductor: | yes |
Ambient temperature during operating: | -25 - 40 °C |
Width in number of modular spacings: | 2 |
Built-in depth: | 69 mm |
Degree of protection (IP): | IP20 |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
