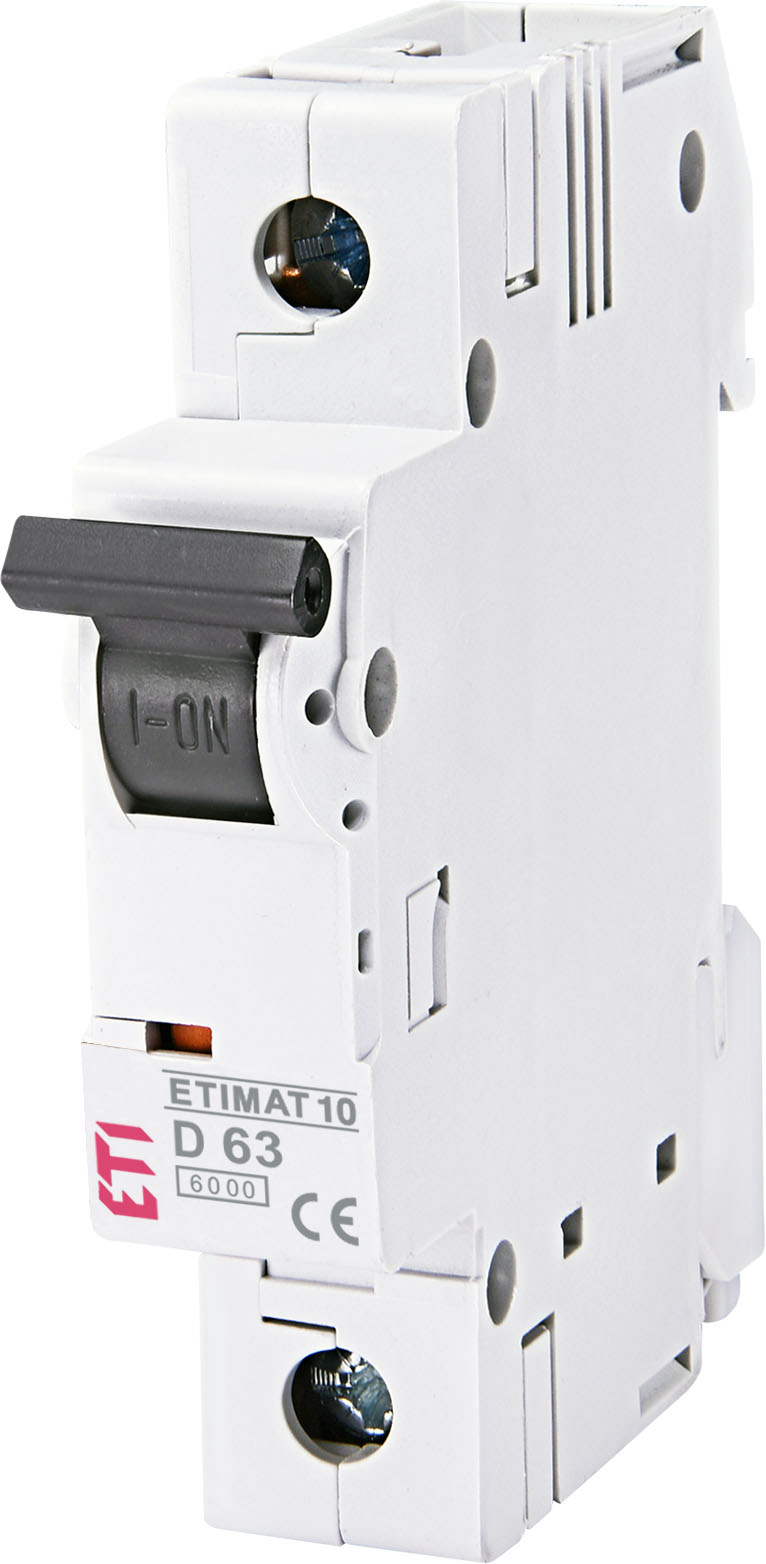

ETIMAT 10 1p D63 6kA Wyłącznik nadprądowy
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ASTI - ETIMAT |
| Symbol | 002151722 |
| GTIN(EAN) | 3838895327202 |
| Price unit | piece |
| Catalog price | 136,31 zł (110,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 134,4 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Release characteristic: | D |
| Number of poles (total): | 1 |
| Number of protected poles: | 1 |
| Rated current: | 63 A |
| Rated insulation voltage Ui: | 500 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Voltage type: | Other |
| Frequency: | 50 - 60 Hz |
| Over voltage category: | 3 |
| Pollution degree: | 3 |
| Additional equipment possible: | yes |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 68 mm |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -25 - 55 °C |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
