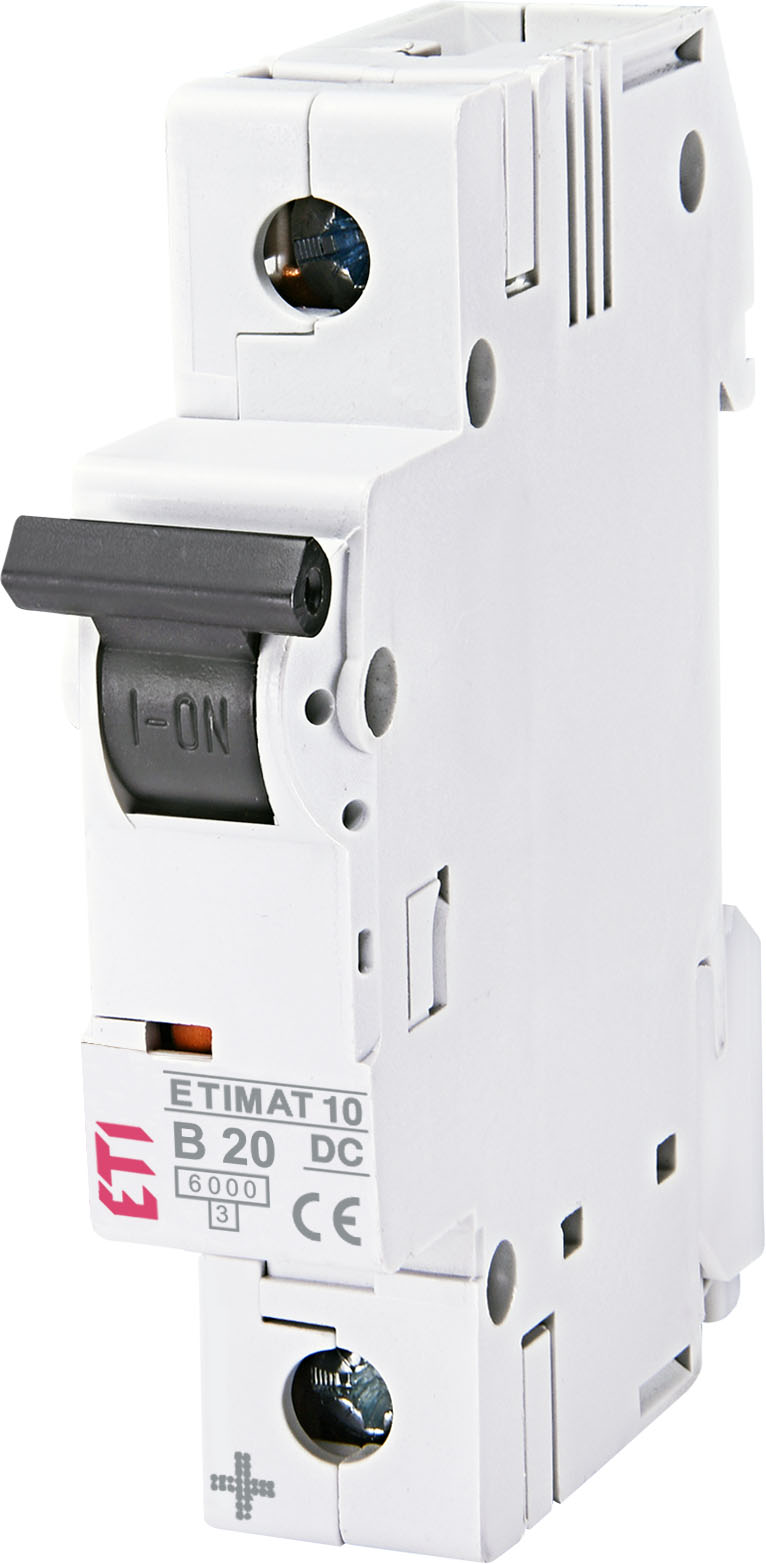

ETIMAT 10-DC 1p B20 6kA Wyłącznik nadprądowy DC
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ASTI - ETIMAT |
| Symbol | 002127717 |
| GTIN(EAN) | 3838895307150 |
| Price unit | piece |
| Catalog price | 128,94 zł (104,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 134,4 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Release characteristic: | B |
| Number of poles (total): | 1 |
| Number of protected poles: | 1 |
| Rated current: | 20 A |
| Rated voltage: | 220 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Voltage type: | DC |
| Current limiting class: | 3 |
| Additional equipment possible: | yes |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 68 mm |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -25 - 55 °C |
