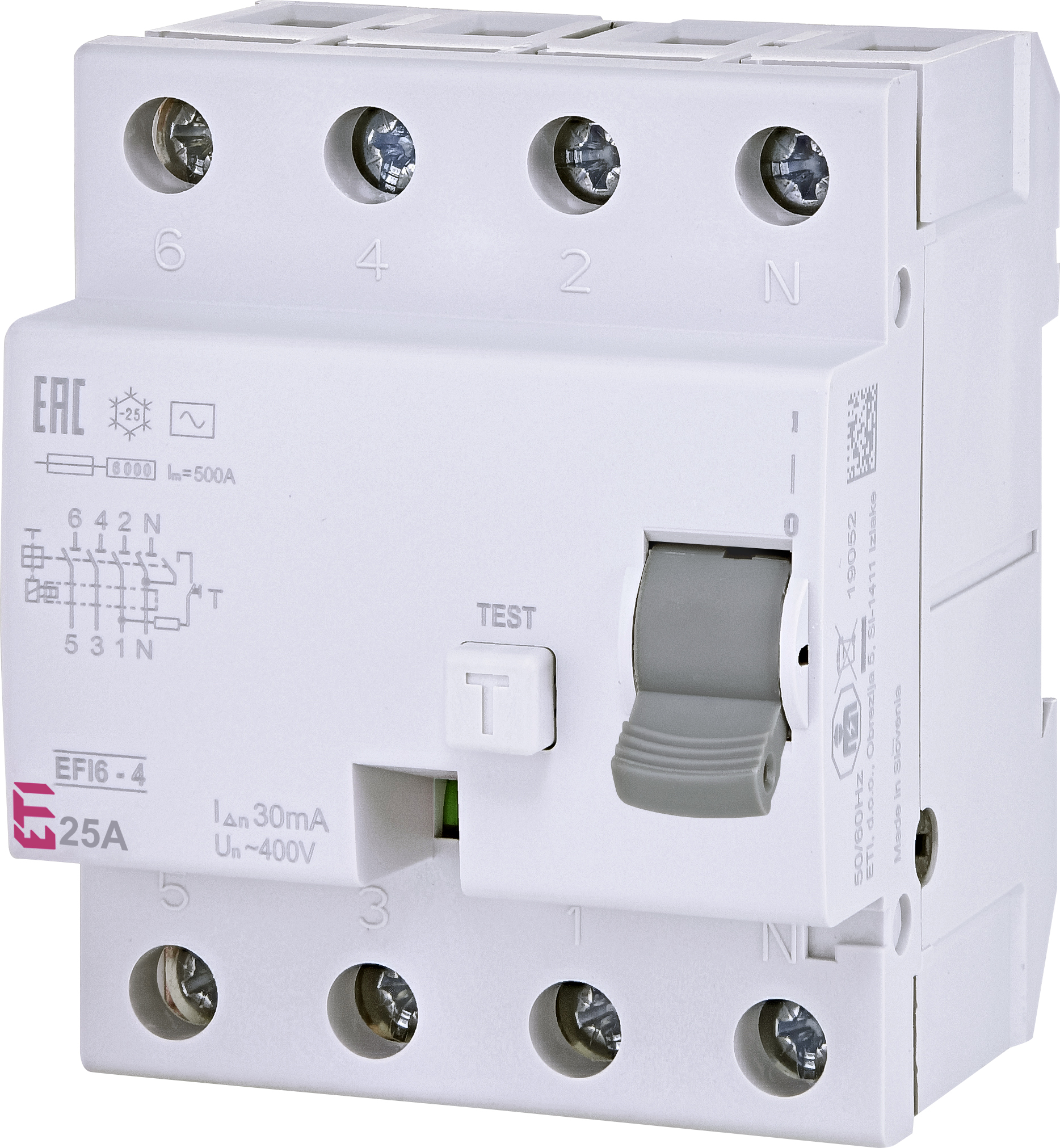

EFI6-4 AC 25/0.03 Wyłącznik różnicowoprądowy - 6 kA
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Symbol | 002062137 |
| GTIN(EAN) | 3838895548195 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 67,65 zł / szt. (55,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 305 g |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 4 |
| Rated current: | 25 A |
| Rated fault current: | 30 A |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Leakage current type: | AC |
| Short-circuit breaking capacity (Icw): | 6 kA |
| Surge current capacity: | 5 kA |
| Frequency: | 50/60 Hz |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 4 |
| Built-in depth: | 69 mm |
| Ambient temperature during operating: | -25 - 55 °C |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
