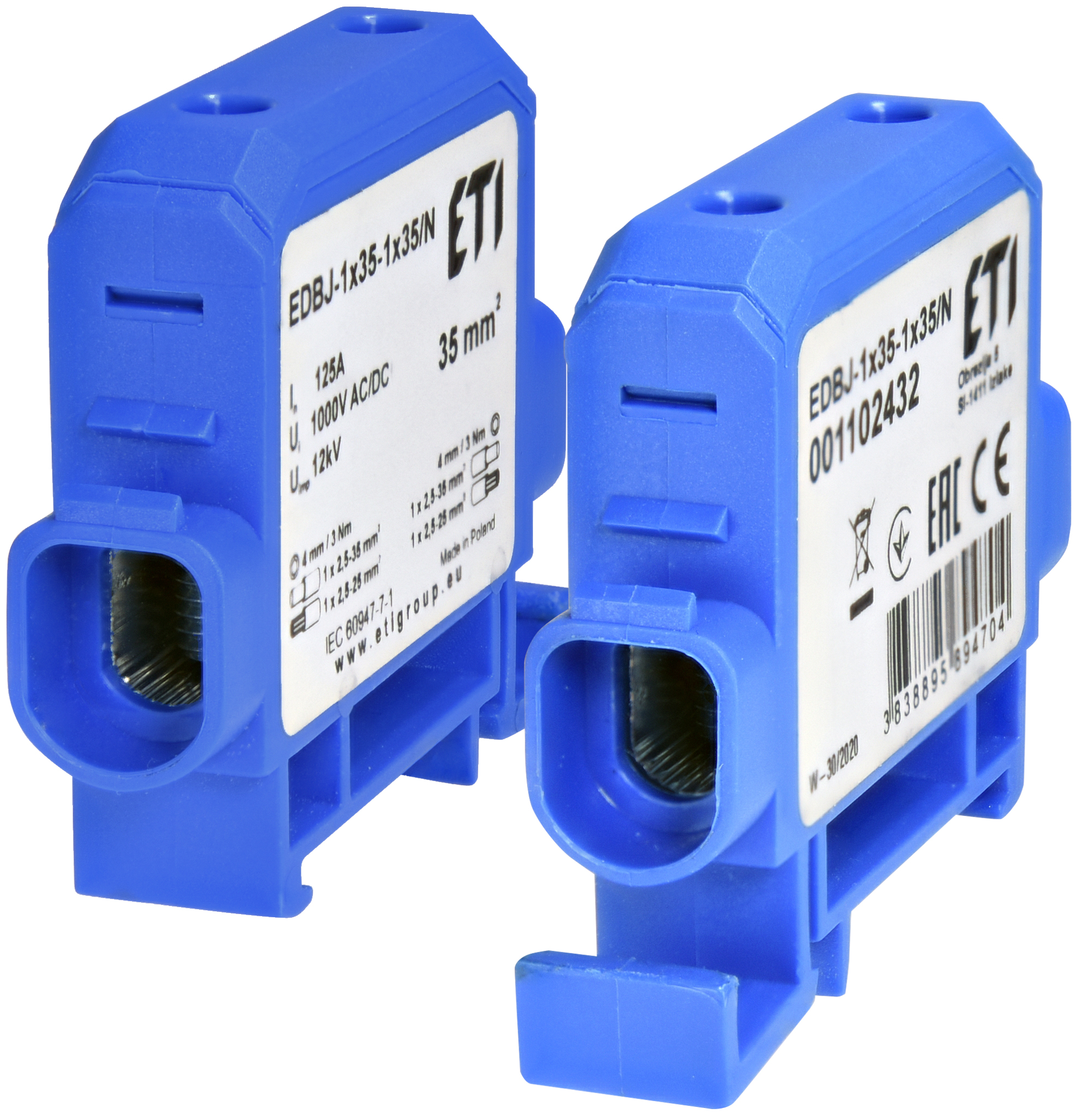

EDBJ-1x35-1x35/N Zacisk 125A 1-torowy (1,5-35mm2 - 1,5-35mm2) do przewodów Al/Cu niebieski
| Information | Value |
|---|---|
| Supplier | ETI-POLAM Sp. z o.o. |
| Series | ETIBOX |
| Symbol | 001102432 |
| GTIN(EAN) | 3838895894704 |
| Price unit | piece |
| Catalog price | 10,07 zł (8,19 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 27 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Connectable conductor cross section solid-core: | 1.5 - 35 mm² |
| Rated current In: | 125 A |
| Rated voltage: | 415 V |
| Type of electrical connection 1: | Clip connection |
| Number of poles: | 1 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -30 - 80 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Colour: | Blue |
