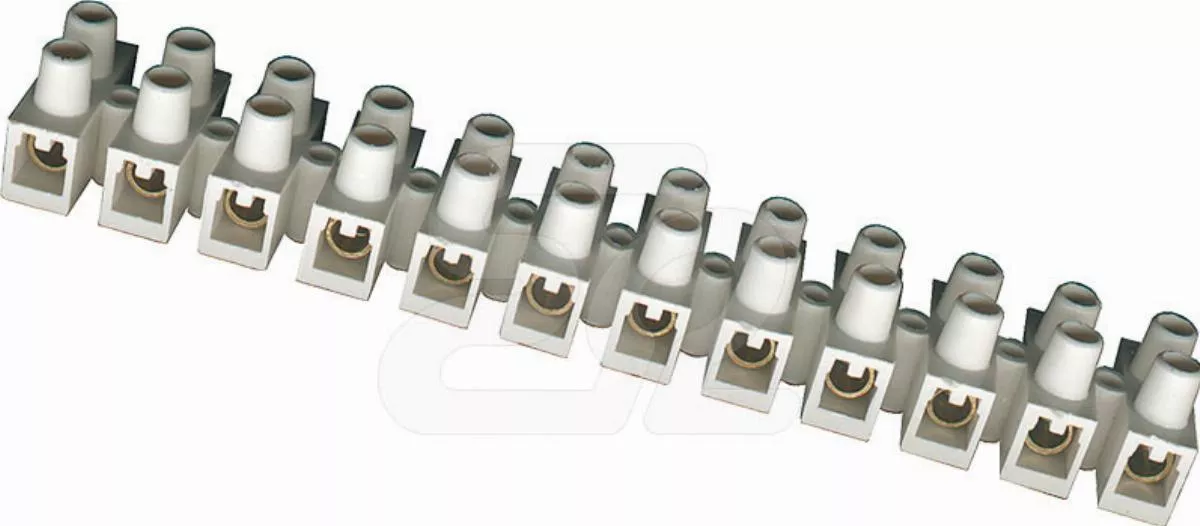

ELZ-10 (10 SZT.) ZŁĄCZKA
| Information | Value |
|---|---|
| Supplier | ERGOM Zakład Aparatury Elektrycznej Sp. z o.o. |
| Symbol | R35RW-02010100403 |
| Price unit | piece |
| Catalog price | 13,65 zł (11,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 12 mm |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 10 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 10 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 10 mm² |
| Rated current In: | 57 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of poles: | 12 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Direct mounting |
| Material insulation body: | Other |
| Operating temperature: | -25 - 55 °C |
| Inflammability class of insulation material according to with UL94: | Other |
| Closing plate required: | no |
| Colour: | White |
| Transparent: | no |
