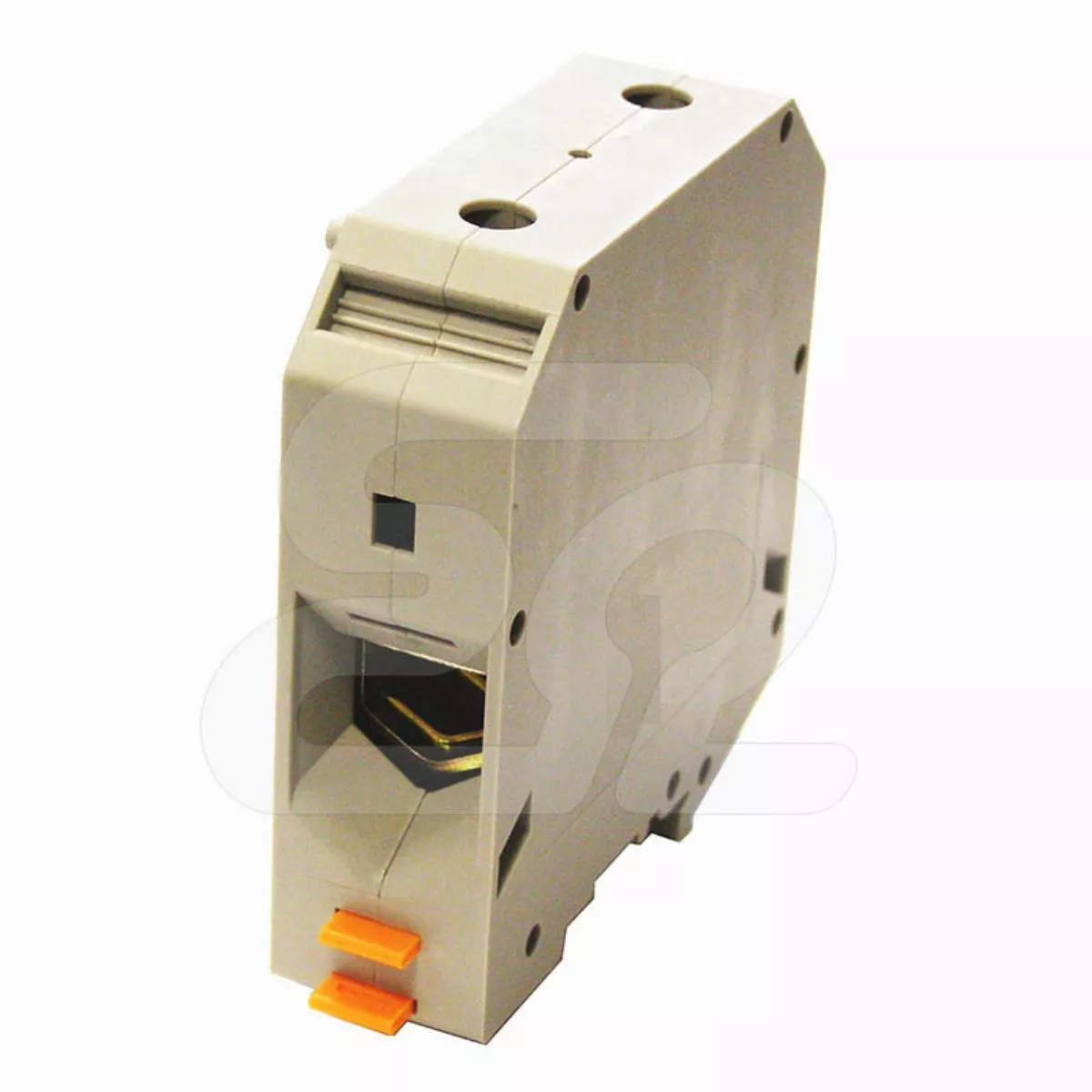

ZJU-95 (5 SZT.) ZŁĄCZKA
| Information | Value |
|---|---|
| Supplier | ERGOM Zakład Aparatury Elektrycznej Sp. z o.o. |
| Symbol | R34RR-07010000803 |
| Price unit | piece |
| Catalog price | 40,31 zł (32,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Panel feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 35 - 95 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 35 - 95 mm² |
| Connectable conductor cross section solid-core: | 25 - 95 mm² |
| Rated current In: | 232 A |
| Rated voltage: | 1000 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Atop |
| Number of poles: | 1 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 55 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 26.8 mm |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | no |
| Colour: | Grey |
| With integrated feed-through flange: | no |
| Connectable conductor cross section multi-wired: | 35 - 95 mm² |
