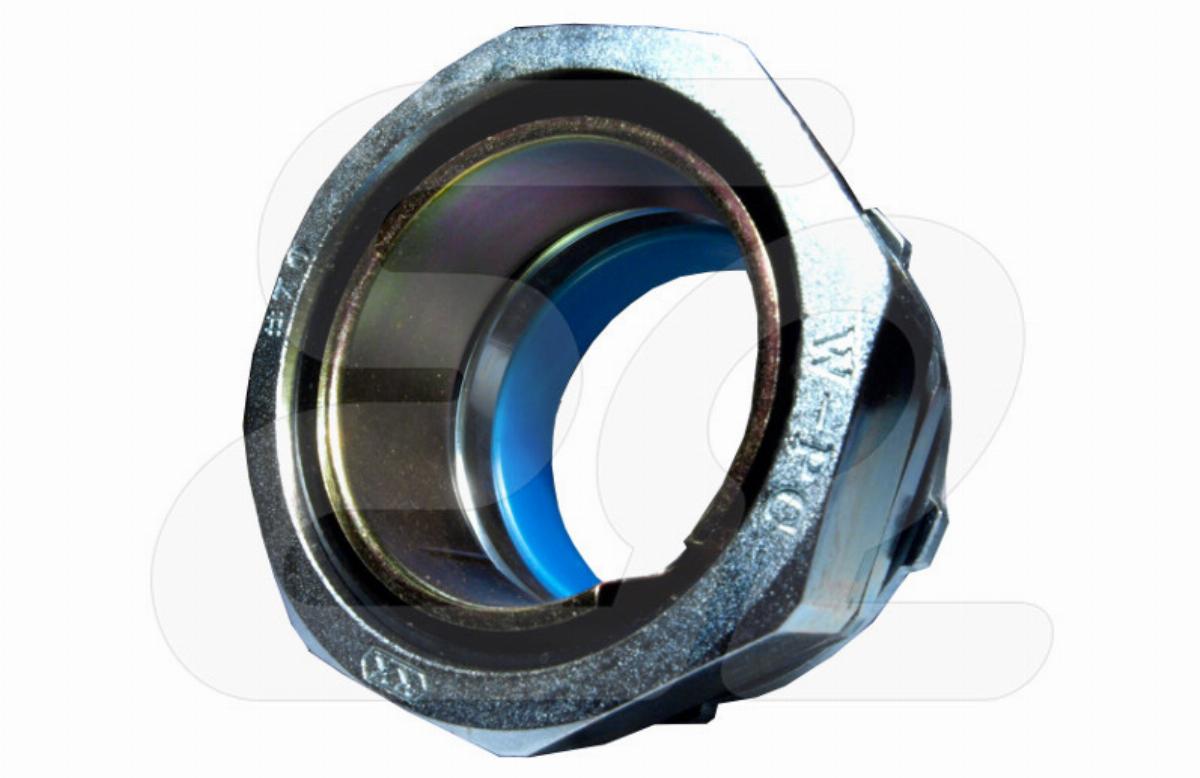

MWE G4"/100 ŁĄCZNIK RURY
Information | Value |
---|---|
Supplier | ERGOM Zakład Aparatury Elektrycznej Sp. z o.o. |
Symbol | E03DK-08010300301 |
GTIN(EAN) | 5900003361335 |
Price unit | piece |
Catalog price | 737,39 zł (599,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Screw connection for protective metallic hose |
Thread connection size: | Other |
Construction type: | External thread |
Max. outer diameter hose: | 112 mm |
Total height: | 78 mm |
Surface protection: | Untreated |
Connection type screw connection to housing: | Thread |
Degree of protection (IP) conduit dependant: | 66 - 66 |
Model: | Straight |
Lowest inner diameter hose: | 102 mm |
Housing material: | Zinc die-cast |
Thread length: | 28 mm |
Revolving thread: | no |
One-piece: | no |
Approved in combination with protective conduit according to DIN EN 61386-23: | no |
Approved in combination with protective conduit CSA: | no |
Approved in combination with protective conduit UL: | no |
Approved in combination with protective conduit FI: | no |
Thread type: | Other |
Operating temperature: | -30 - 80 °C |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-08 10:48:21 |
