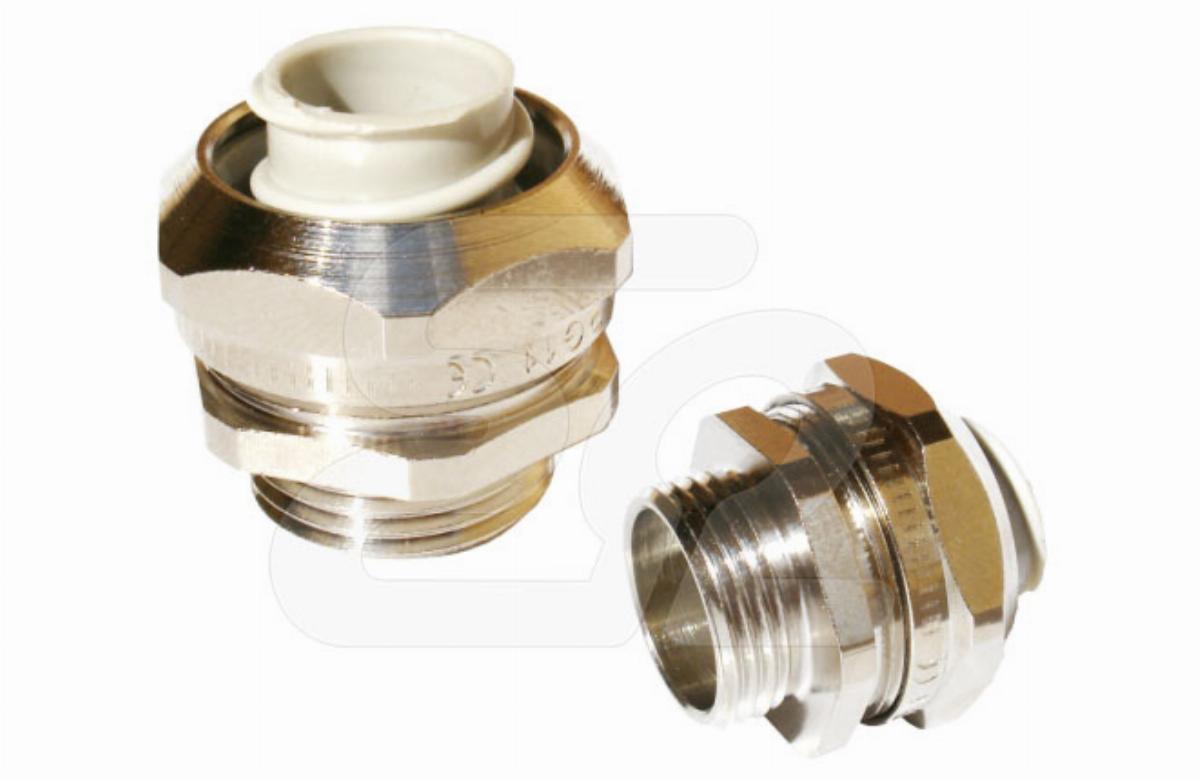

MWO 40M/36 (10 SZT.) ŁĄCZNIK RURY
| Information | Value |
|---|---|
| Supplier | ERGOM Zakład Aparatury Elektrycznej Sp. z o.o. |
| Symbol | E03DK-08010201001 |
| Price unit | piece |
| Catalog price | 156,67 zł (127,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Screw connection for protective metallic hose |
| Thread connection size: | M40 x 1.5 |
| Construction type: | External thread |
| Max. outer diameter hose: | 47 mm |
| Total height: | 40 mm |
| Surface protection: | Nickel-plated |
| Connection type screw connection to housing: | Thread |
| Degree of protection (IP) conduit dependant: | 66 - 66 |
| Model: | Straight |
| Lowest inner diameter hose: | 39 mm |
| Housing material: | Brass |
| Thread length: | 8.5 mm |
| Revolving thread: | no |
| One-piece: | no |
| Approved in combination with protective conduit according to DIN EN 61386-23: | no |
| Approved in combination with protective conduit CSA: | no |
| Approved in combination with protective conduit UL: | no |
| Approved in combination with protective conduit FI: | no |
| Thread type: | Metric |
| Operating temperature: | -30 - 80 °C |
