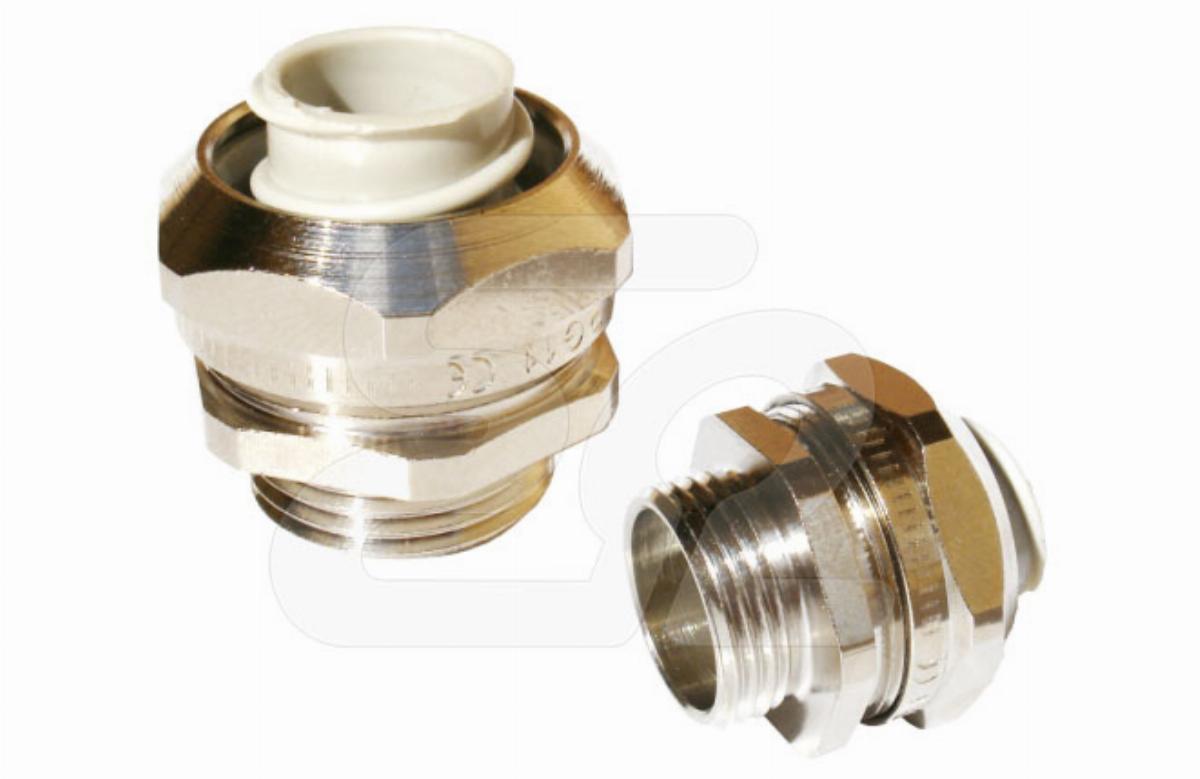

MWO 32M/21 (25 SZT.) ŁĄCZNIK RURY
Information | Value |
---|---|
Supplier | ERGOM Zakład Aparatury Elektrycznej Sp. z o.o. |
Symbol | E03DK-08010200701 |
Price unit | piece |
Catalog price | 48,15 zł (39,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Screw connection for protective metallic hose |
Thread connection size: | M32 x 1.5 |
Construction type: | External thread |
Max. outer diameter hose: | 28 mm |
Total height: | 24.5 mm |
Surface protection: | Nickel-plated |
Connection type screw connection to housing: | Thread |
Degree of protection (IP) conduit dependant: | 66 - 66 |
Model: | Straight |
Lowest inner diameter hose: | 22 mm |
Housing material: | Brass |
Thread length: | 8 mm |
Revolving thread: | no |
One-piece: | no |
Approved in combination with protective conduit according to DIN EN 61386-23: | no |
Approved in combination with protective conduit CSA: | no |
Approved in combination with protective conduit UL: | no |
Approved in combination with protective conduit FI: | no |
Thread type: | Metric |
Operating temperature: | -30 - 80 °C |
