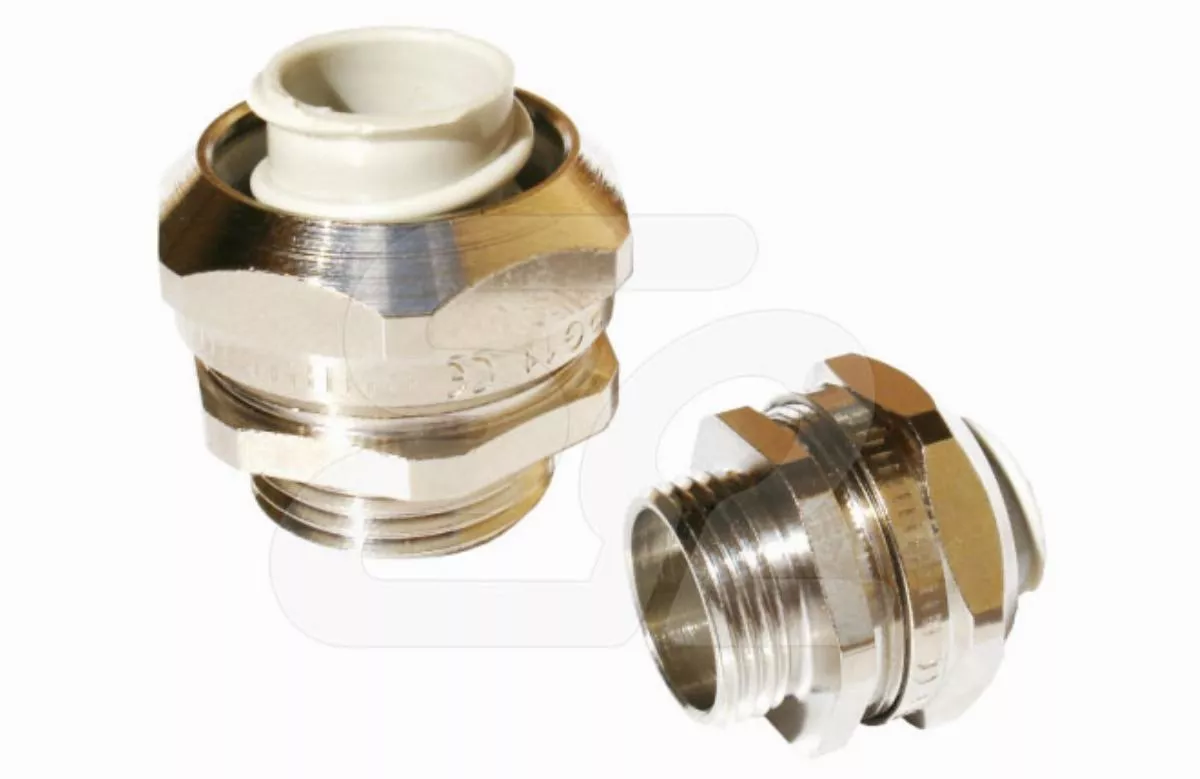

MWO 20M/13 (10 SZT.) ŁĄCZNIK RURY
| Information | Value |
|---|---|
| Supplier | ERGOM Zakład Aparatury Elektrycznej Sp. z o.o. |
| Symbol | E03DK-08010200403 |
| Price unit | piece |
| Catalog price | 27,75 zł (22,56 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Screw connection for protective metallic hose |
| Degree of protection (IP) conduit dependant: | 66 - 66 |
| Model: | Straight |
| Revolving thread: | no |
| Construction type: | External thread |
| Connection type screw connection to housing: | Thread |
| Thread connection size: | M20 x 1.5 |
| One-piece: | no |
| Housing material: | Brass |
| Surface protection: | Nickel-plated |
| Lowest inner diameter hose: | 15 mm |
| Max. outer diameter hose: | 20 mm |
| Thread length: | 7 mm |
| Total height: | 22.7 mm |
| Approved in combination with protective conduit according to DIN EN 61386-23: | no |
| Approved in combination with protective conduit CSA: | no |
| Approved in combination with protective conduit UL: | no |
| Approved in combination with protective conduit FI: | no |
| Thread type: | Metric |
| Operating temperature: | -30 - 80 °C |
