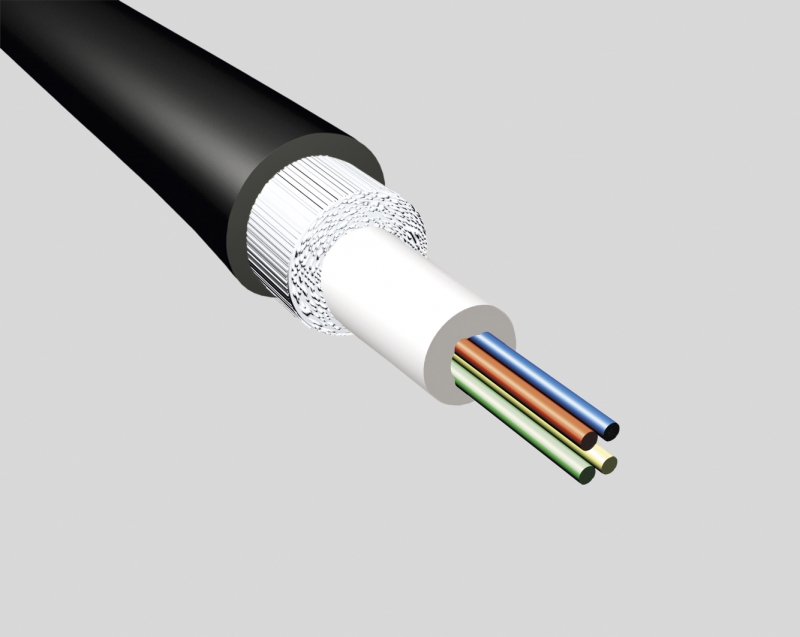

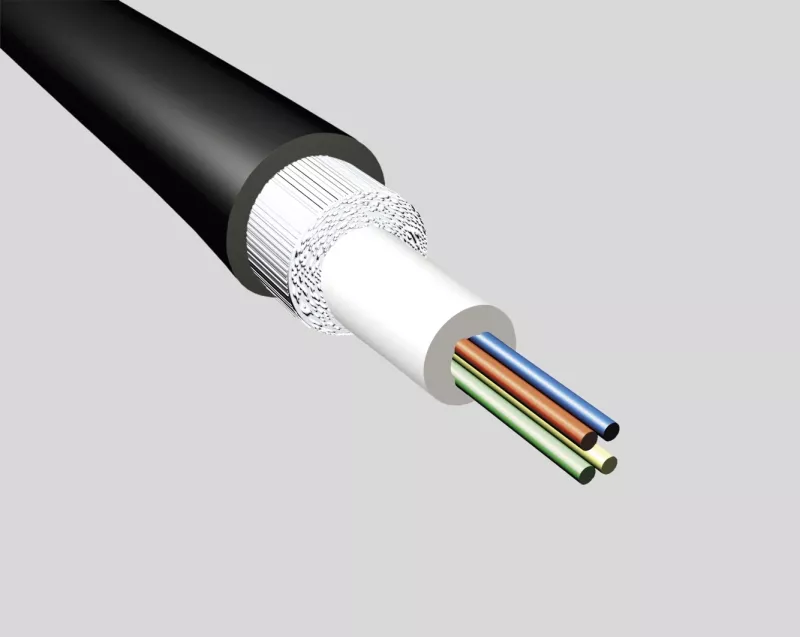

Kabel optyczny uniwersalny EmiterNet J/A-DQ(BN)H 4G 50/125 OM2 AE02 LSZH
Information
Value
Supplier
Emiter Sp. z o.o. Katowice
Symbol
KOEAE02004B5
GTIN(EAN)
5906764109315
Price unit
kilometer
Catalog price
6 199,20 zł (5 040,00 zł + 23% VAT)
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Kable światłowodowe uniwersalne typu J/A-DQ(BN)H wykorzystywane są w telekomunikacji, komputerowych sieciach transmisji danych, sieciach CATV. Światłowód nadaje się do kładzenia - z wykorzystaniem specjalnych rur - w ziemi (dzięki zabezpieczeniu żelem i w ten sposób chroniącym włókna, jak i zabezpieczeniu przed uszkodzeniami mechanicznymi, np. poprzez zastosowane włókno szklane). Kable optyczne można prowadzić we wszystkich płaszczyznach sieci telekomunikacyjnych, wykorzystując prowadnice i kanały kablowe jak i betonowe, zaś doskonałe parametry mechaniczne takie jak wytrzymałość i promień gięcia nie powodują problemów przy prowadzeniu światłowodów wewnątrz budynków.
Information
Value
Net weight:
35 kg
Gross weight:
35 kg
ETIM class:
Fibre optic cable
Number of fibres:
4
Type of tube:
Loose tube
Number of fibres per tube:
4
Fibre type:
Multi mode 50/125
Category:
OM2
With strain relief:
no
With rodent protection:
yes
Material outer sheath:
Other
Specification material outer sheath:
Polyethylene (PE)
Colour outer sheath:
Black
Longitudinal water blocking cable:
yes
Cable metal free:
yes
Reaction-to-fire according to EN 13501-6: Class:
Fca
Oil resistant according to EN IEC 60811-404:
no
Resistant to chemicals:
no
UV resistant:
yes
Outer diameter approx.:
5.4 mm
Min. permitted bending radius, stationary application/permanent installation:
81 mm
Suitable for underground installation:
yes
Blow in:
no
Cable geometry:
Round
Max. tensile strength during installation:
1.1 kN
Weight:
35 kg/km
Low smoke according to EN IEC 61034-2:
yes
