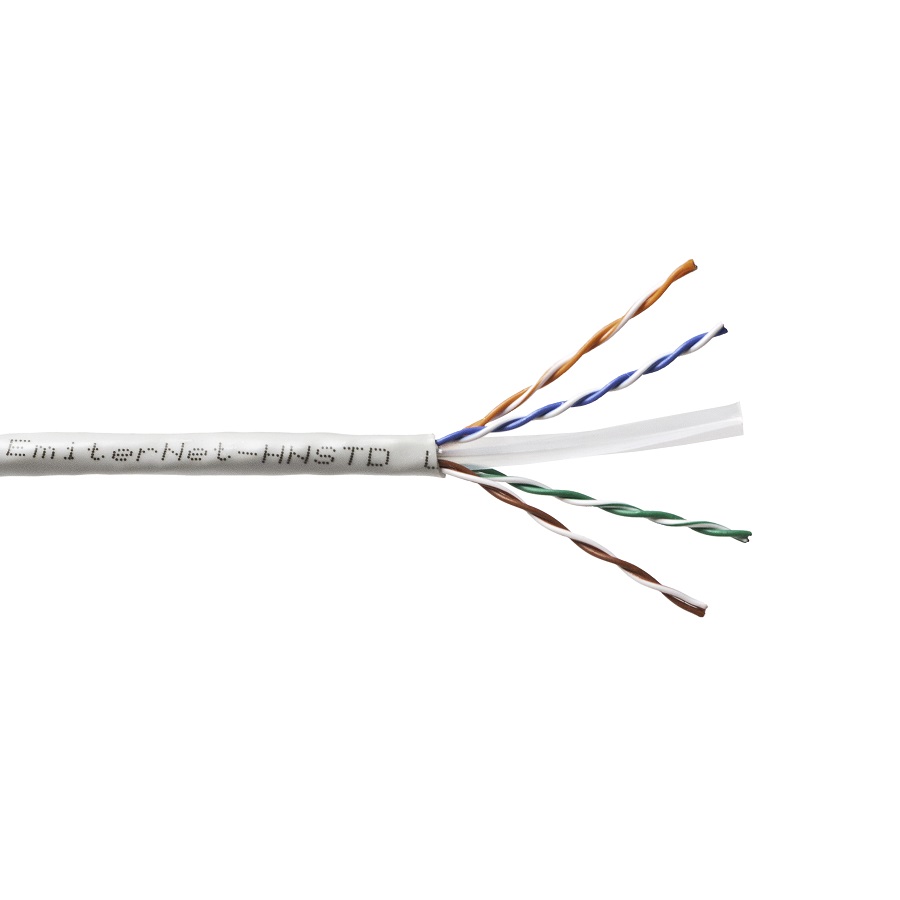

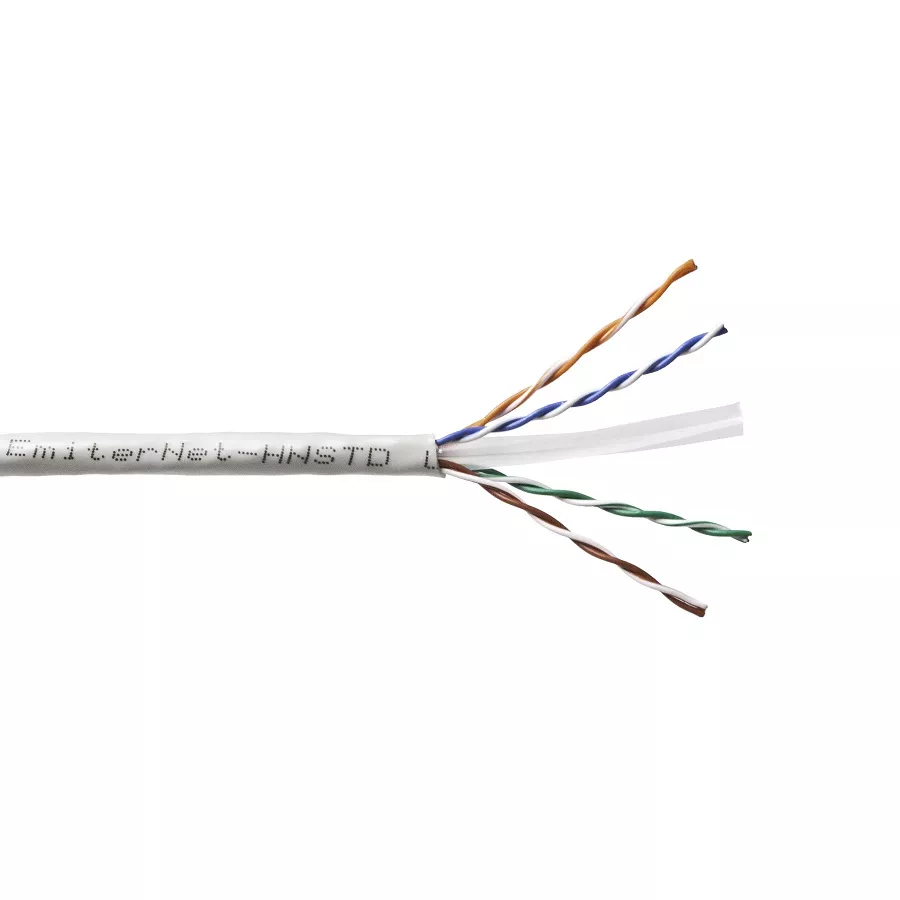

Kabel Emiter Net UTP (U/UTP) kat. 6 450 MHz, drut, standard, PVC, szary
Information | Value |
---|---|
Supplier | Emiter Sp. z o.o. Katowice |
Symbol | K/EMITERNET-UTP6PVC-STD. |
GTIN(EAN) | 5906764102897 |
Price unit | kilometer |
Catalog price | 3 541,17 zł (2 879,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czteroparowy kabel nieekranowany kategorii 6 jest przeznaczony do teleinformatycznych systemów transmisji danych w instalacjach wewnątrzbudynkowych. Konstrukcja kabla opiera się na centralnym separatorze rozdzielającym poszczególne pary w celu zredukowania przesłuchów międzyparowych. Separator wykonany jest z PCV i ma postać krzyża. Kabel posiada 4 pary drutów skręconych wzajemnie ze sobą w taki sposób, aby zredukować przesłuchy międzyparowe. Dzięki temu można osiągnąć - stosując ten kabel - połączenie w standardzie GigabitEthernet. Kabel testowany do 450MHz. Powłoka zewnętrzna kabla wykonana z PCV. Kabel posiada 4 pary drutów z oznaczeniem kolorowym. Na kablu nadrukowane jest oznaczenie producenta, zgodność z normami, oraz znacznik długości (EmiterNet -HNSTD U/UTP cat.6 PCV 4PR, Verified to EN/PL 50173 ISO/IEC 11801 EIA/TIA 568-C.2 Reakcja na ogien: Eca MM/RR xxxm), gdzie MM/RR to miesiąc/rok, xx znacznik długości.
Additional features:
Information | Value |
---|---|
Net weight: | 12,4 kg |
Gross weight: | 12,3 kg |
ETIM class: | Data and communication cable |
Conductor surface: | Bare |
Diameter conductor: | 0.57 mm |
Conductor category: | Class 1 = solid |
Number of cores: | 8 |
Number of stranding elements: | 4 |
Stranding element: | Pairs |
Material core insulation: | Other |
Specification core insulation: | Polyethylene (PE) |
Core identification: | Colour |
Screen over stranding element: | None |
Stranding: | Bundle |
Screen over stranding: | None |
Longitudinal water blocking cable: | no |
Radial water blocking cable: | no |
Suitable for underground installation: | no |
Material outer sheath: | Polyvinyl chloride (PVC) |
Specification material outer sheath: | Other |
Colour outer sheath: | Grey |
Reaction-to-fire according to EN 13501-6: Class: | Eca |
Reaction-to-fire according to EN 13501-6: Smoke production: | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
Reaction-to-fire according to EN 13501-6: Acidity: | None |
Halogen free according to EN IEC 60754-2: | no |
Low smoke according to EN IEC 61034-2: | no |
Oil resistant according to EN IEC 60811-404: | no |
Outer diameter approx.: | 6 mm |
Min. permitted bending radius, moving application with forced guidance: | 60 mm |
Min. permitted bending radius, moving application/free movement: | 60 mm |
Min. permitted bending radius, stationary application/permanent installation: | 30 mm |
Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
Category: | 6 |
NVP value: | 69 % |
UV resistant: | no |
Conductor material: | Copper |
AWG size: | 23 |
Core identification according to HD 308 S2: | no |
Protective sheath: | Polyvinyl chloride (PVC) |
Armouring/reinforcement: | None |
Cable geometry: | Round |
Certified for shipboard application: | no |
Suitable as telephone cable: | yes |
Suitable as computer data cable: | yes |
Suitable as signalling cable: | no |
Weight: | 40.7 kg/km |
