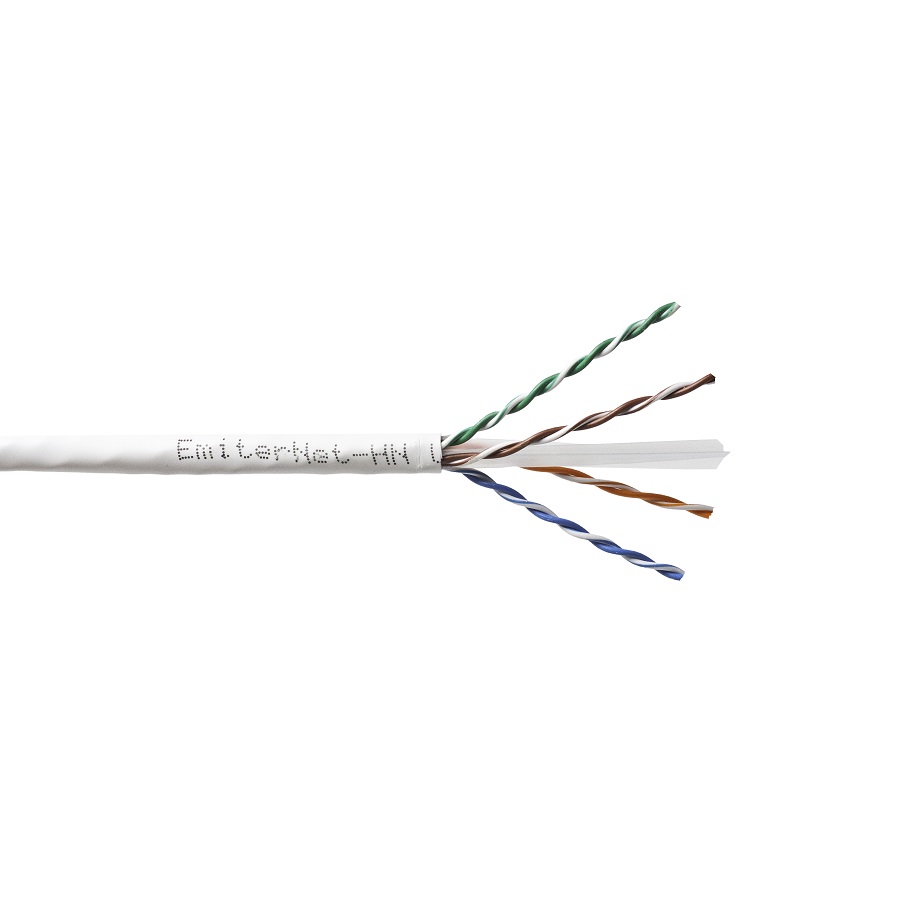

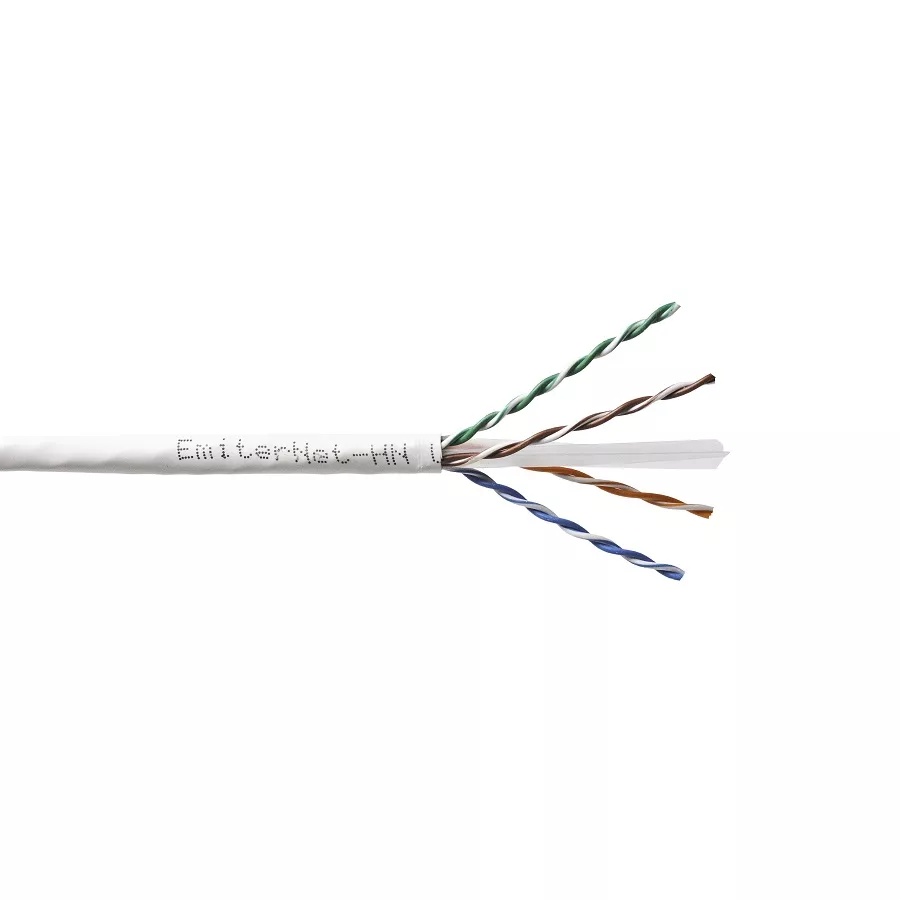

Kabel Emiter Net UTP (U/UTP) kat. 6 450 MHz, drut 4 x 2 x 23 AWG,LS0H
| Information | Value |
|---|---|
| Supplier | Emiter Sp. z o.o. Katowice |
| Symbol | K/EMITERNET-UTP6LSOH. |
| GTIN(EAN) | 5906764102088 |
| Price unit | kilometer |
| Catalog price | 3 605,13 zł (2 931,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czteroparowy kabel nieekranowany kategorii 6 jest przeznaczony do szerokopasmowych systemów transmisji danych. Konstrukcja kabla opiera się na centralnym separatorze rozdzielający poszczególne pary w celu zredukowania przesłuchów międzyparowych (tzw. skrętka). Separator wykonany jest z PCV i ma postać krzyża. Kabel ten jest dostępny w powłoce zewnętrznej LS0H - kabel bezhalogenowy. Kabel posiada 4 pary drutów z oznaczeniem kolorowym. Kabel testowany do czestotliwości 450MHz. Na kablu nadrukowane jest oznaczenie producenta, zgodność z normami oraz znacznik długości: EmiterNet -HN U/UTP cat.6 450MHz LS0H 23AWG x 4PR, Verified to EN/PL 50173 ISO/IEC 11801 EIA/TIA 568-C.2 CE Reakcja na ogien: Dca-s2-d2-a2 MM/YY xxxm, gdzie MM/YY to miesiąc i rok, xxx – długość kabla.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 12,2 kg |
| Gross weight: | 12,2 kg |
| ETIM class: | Data and communication cable |
| Conductor surface: | Bare |
| Diameter conductor: | 0.6 mm |
| Conductor category: | Class 1 = solid |
| Number of cores: | 8 |
| Number of stranding elements: | 4 |
| Stranding element: | Pairs |
| Material core insulation: | Other |
| Specification core insulation: | Polyethylene (PE) |
| Core identification: | Colour |
| Screen over stranding element: | None |
| Stranding: | Bundle |
| Screen over stranding: | None |
| Longitudinal water blocking cable: | no |
| Radial water blocking cable: | no |
| Suitable for underground installation: | no |
| Protective sheath: | Other |
| Material outer sheath: | Other |
| Specification material outer sheath: | Other |
| Colour outer sheath: | White |
| Reaction-to-fire according to EN 13501-6: Class: | Dca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d2 |
| Reaction-to-fire according to EN 13501-6: Acidity: | a2 |
| Halogen free according to EN IEC 60754-2: | no |
| Low smoke according to EN IEC 61034-2: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 6.5 mm |
| Min. permitted bending radius, moving application with forced guidance: | 65 mm |
| Min. permitted bending radius, moving application/free movement: | 65 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 35 mm |
| Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 70 °C |
| Category: | 6 |
| NVP value: | 69 % |
| UV resistant: | no |
| Conductor material: | Copper |
| AWG size: | 23 |
| Core identification according to HD 308 S2: | no |
| Armouring/reinforcement: | None |
| Cable geometry: | Round |
| Certified for shipboard application: | no |
| Suitable as telephone cable: | yes |
| Suitable as computer data cable: | yes |
| Suitable as signalling cable: | no |
| Weight: | 44.2 kg/km |
