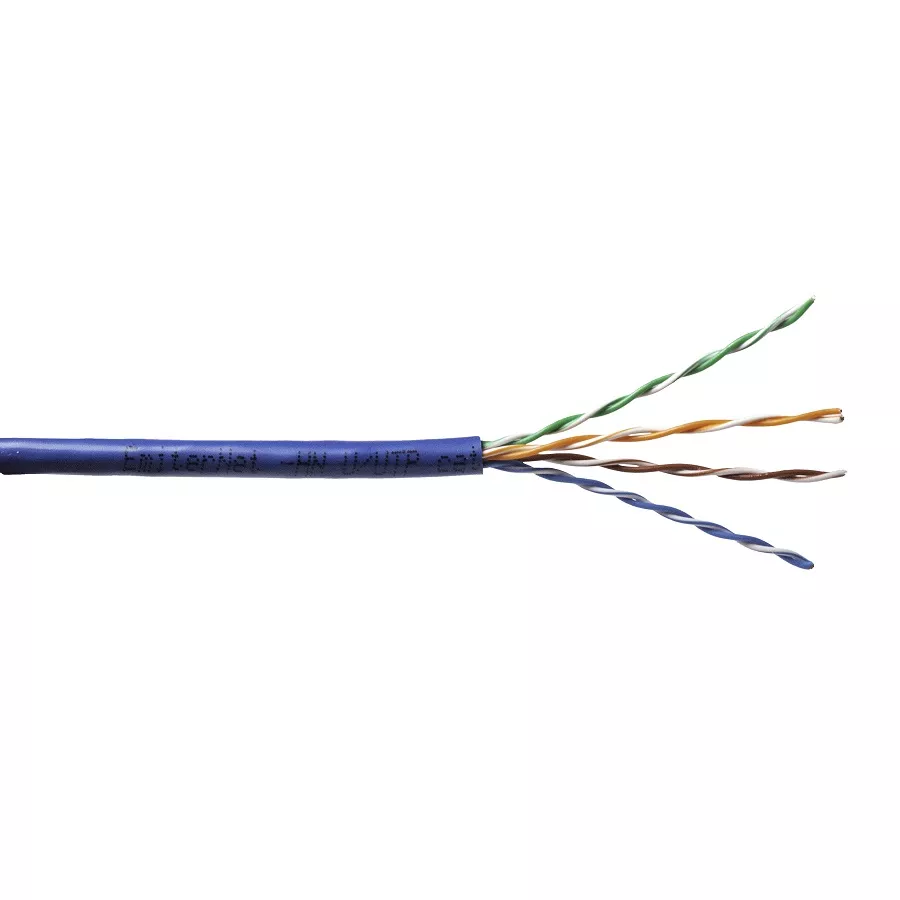

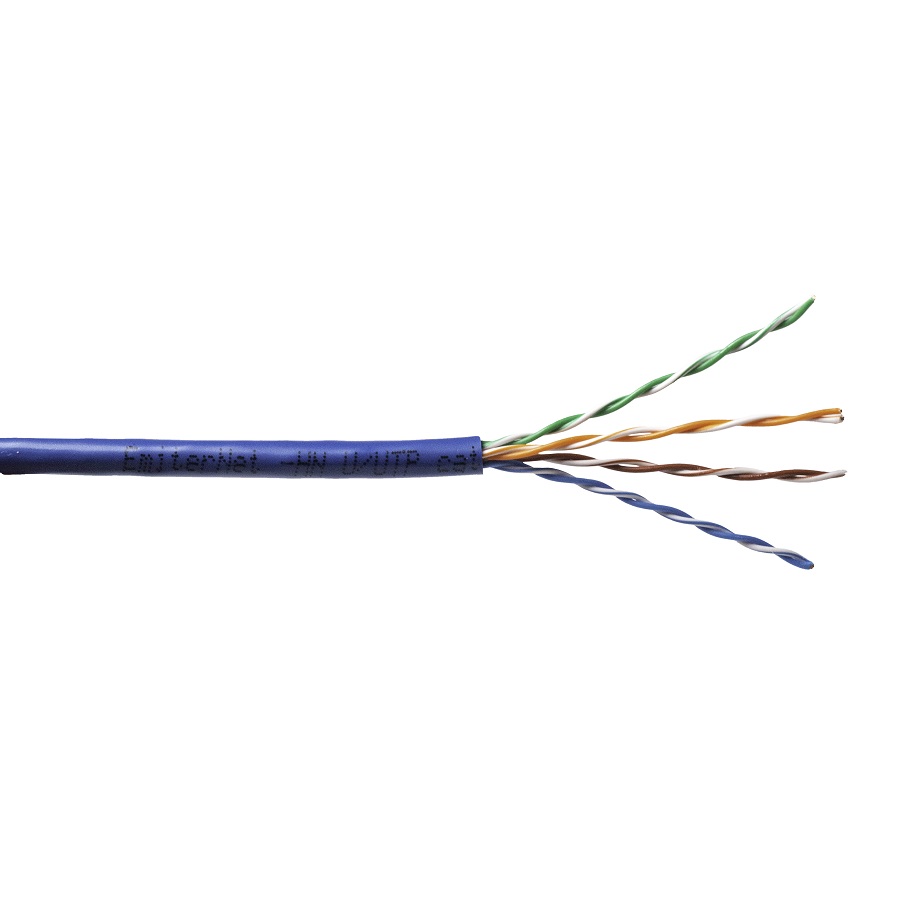

Kabel Emiter Net UTP (U/UTP) kat. 5e, linka 4 x 2x 24 AWG PCW, niebieski
| Information | Value |
|---|---|
| Supplier | Emiter Sp. z o.o. Katowice |
| Symbol | K/EMITERNET-UTP5ELINKA. |
| GTIN(EAN) | 5906764102071 |
| Price unit | kilometer |
| Catalog price | 3 387,42 zł (2 754,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czteroparowy kabel nieekranowany kategorii 5e jest przeznaczony do teleinformatycznych systemów transmisji danych, szczególnie - ze względu na swoją elastyczność - do wykonywania kabli krosowych i przyłączeniowych. Konstrukcja kabla opiera się na 4 parach linek skręconych wzajemnie ze sobą w taki sposób aby zredukować przesłuchy międzyparowe. Dzięki temu, używając tego kabla, można osiągnąć połączenie nawet w standardzie GigabitEthernet. Kabel ten jest dostępny w powłoce zewnętrznej PVC. Kabel posiada 4 pary przewodników z oznaczeniem kolorowym. Na kablu nadrukowane jest oznaczenie producenta, zgodność z normami oraz znacznik długości: EmiterNet -HN UTP cat.5e LINKA PVC 4PR, Verified to EN/PL 50173 ISO/IEC 11801 EIA/TIA 568-C.2 MM/YY xxx m.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 9 kg |
| Gross weight: | 10,5 kg |
| ETIM class: | Data and communication cable |
| Conductor surface: | Bare |
| Diameter conductor: | 0.205 mm |
| Conductor category: | Class 1 = solid |
| Number of cores: | 8 |
| Number of stranding elements: | 4 |
| Stranding element: | Pairs |
| Material core insulation: | Other |
| Specification core insulation: | Other |
| Core identification: | Colour |
| Screen over stranding element: | None |
| Stranding: | Bundle |
| Screen over stranding: | None |
| Longitudinal water blocking cable: | no |
| Radial water blocking cable: | no |
| Suitable for underground installation: | no |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Blue |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Halogen free according to EN IEC 60754-2: | no |
| Low smoke according to EN IEC 61034-2: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 5.2 mm |
| Min. permitted bending radius, moving application with forced guidance: | 40 mm |
| Min. permitted bending radius, moving application/free movement: | 40 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 20 mm |
| Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
| Permitted cable outer temperature after assembling without vibration: | -20 - 70 °C |
| Category: | 5E |
| NVP value: | 69 % |
| UV resistant: | no |
| Conductor material: | Copper |
| AWG size: | 24 |
| Core identification according to HD 308 S2: | no |
| Protective sheath: | Polyvinyl chloride (PVC) |
| Armouring/reinforcement: | None |
| Cable geometry: | Round |
| Certified for shipboard application: | no |
| Suitable as telephone cable: | yes |
| Suitable as computer data cable: | yes |
| Suitable as signalling cable: | no |
| Weight: | 30 kg/km |
