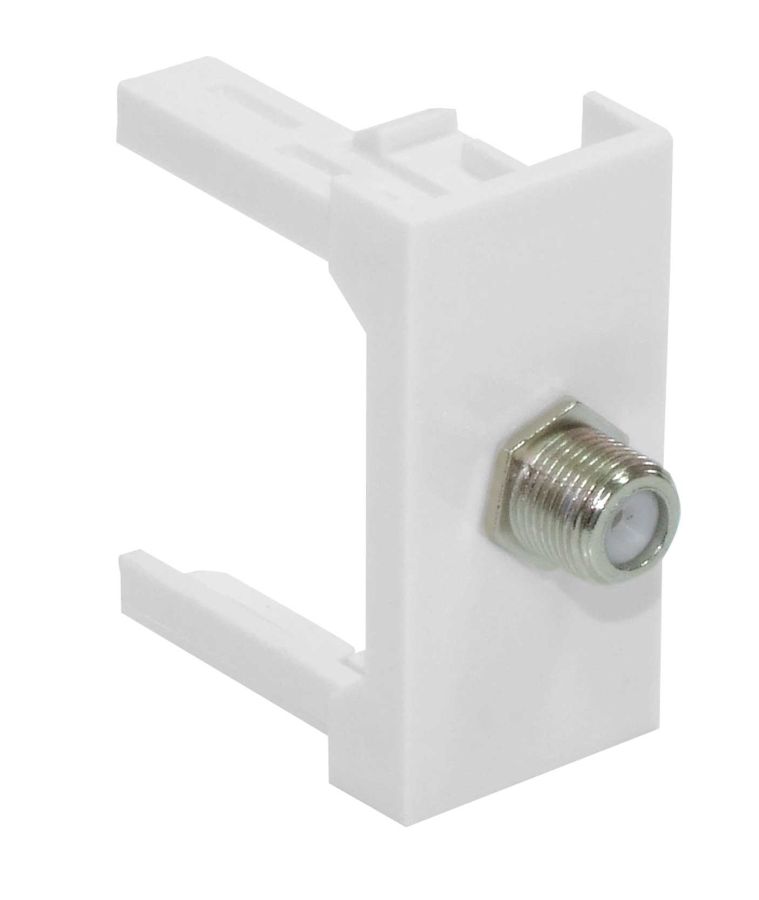

Gniazdo F (F/F) 22,5x45mm
| Information | Value |
|---|---|
| Supplier | Emiter Sp. z o.o. Katowice |
| Symbol | FU/FA-2420-RF |
| GTIN(EAN) | 5906764108646 |
| Price unit | piece |
| Catalog price | 15,28 zł (12,42 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gniazdo F żeńskie (antenowe) w adapterze 22,5x45 (1 moduł), montaż w standardzie mosaic 45x45, podłączenie przewodu do złącza F żeńskiego. Charakteryzuje się zwartą kompaktową budową dzięki czemu można je używać w kanałach kablowych o głębokości już od 40mm. Przeznaczone do zastosowania w systemach teleinformatycznych, audio/video, TV i CCTV. Montaż przez zatrzaśnięcie w uchwycie szybkiego montażu UCHKP, obudowie natynkowej OBUK, ramce maskującej RAMK.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 18 g |
| Gross weight: | 28 g |
| ETIM class: | Insert/cover for communication technology |
| Assembly arrangement: | Basic element |
| Support ring: | no |
| With dust cover: | no |
| With hinged lid: | no |
| Outlet direction: | Straight |
| Imprintable label: | Without indication field |
| With imprint: | no |
| Mounting method: | Wall duct |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface protection: | Untreated |
| Surface finishing: | Matt |
| Colour: | White |
| RAL-number (similar): | 9003 |
| Transparent: | no |
| Type of fastening: | Engage (snap) |
| Number of modules (module system): | 1 |
| With buses/couplings: | yes |
| Suitable for number of connectors: | 1 |
| With strain relief: | no |
| Shielded housing: | no |
| Luster terminal: | no |
| Device width: | 22.5 mm |
| Device height: | 45 mm |
| Device depth: | 33 mm |
| Utilization: | Coaxial antenna socket outlet |
| With lighting: | no |
