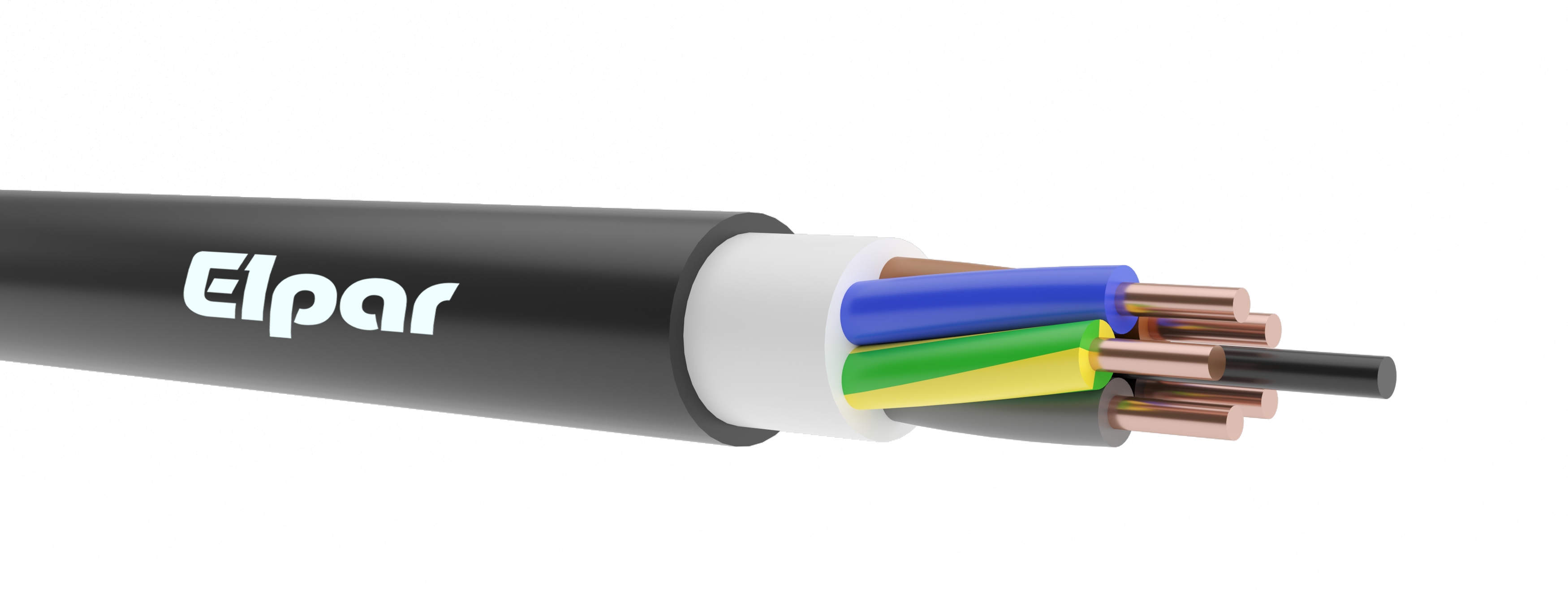

N2XH-J 0,6/1kV 5x2,5 RE mm2 (B2ca); Kabel
| Information | Value |
|---|---|
| Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
| Symbol | 5901854434841 |
| GTIN(EAN) | 5901854434841 |
| Price unit | kilometer |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price |
from 12,32 zł
/ m from 12 316,67 zł / km (10 013,55 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 243,3 kg |
| ETIM class: | Power cable < 1 kV, for permanent installation |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 2,5 mm² |
| Diameter conductor: | 11,4 mm |
| Conductor category: | Class 1 = solid |
| Number of cores: | 5 |
| Twisted cores: | yes |
| Material core insulation: | Other |
| Specification core insulation: | Crosslinked polyethylene (XLPE) |
| Core identification: | Colour |
| Core colour: | Several |
| Max. conductor temperature: | 90 °C |
| Screen: | no |
| Drain wire: | no |
| Protective barrier: | None |
| Armouring/reinforcement: | None |
| Material outer sheath: | Polyolefin |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Black |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | B2ca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | s1b |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d0 |
| Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
| Low temperature resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 11,4 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 136,8 mm |
| Nominal voltage U0: | 600 V |
| Nominal voltage U: | 1 000 V |
| Shape of conductor: | Round |
| Suitable as installation cable: | no |
| Certified for shipboard application: | no |
| Certified as airport lighting cable: | no |
| Low smoke according to EN IEC 61034-2: | yes |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
DORIAN DKL Sp. z o.o. - oddział Łomianki
Łomianki Kiełpin Poduchowny, Warszawska 380
Łomianki Kiełpin Poduchowny, Warszawska 380
Distance:
0.318 kilometra
12,32 zł/m
(12 316,67 zł/km)
(12 316,67 zł/km)
Buy / order
Wholesaler
Address
Distance
Available
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
Fabryka Kabli ELPAR sp. z o.o.
Laskowska 1, 21-200 Parczew, Polska
mail: info@elpar.pl
|
| Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
| Updated: | 2025-04-03 15:22:04 |
| Files to download: |
