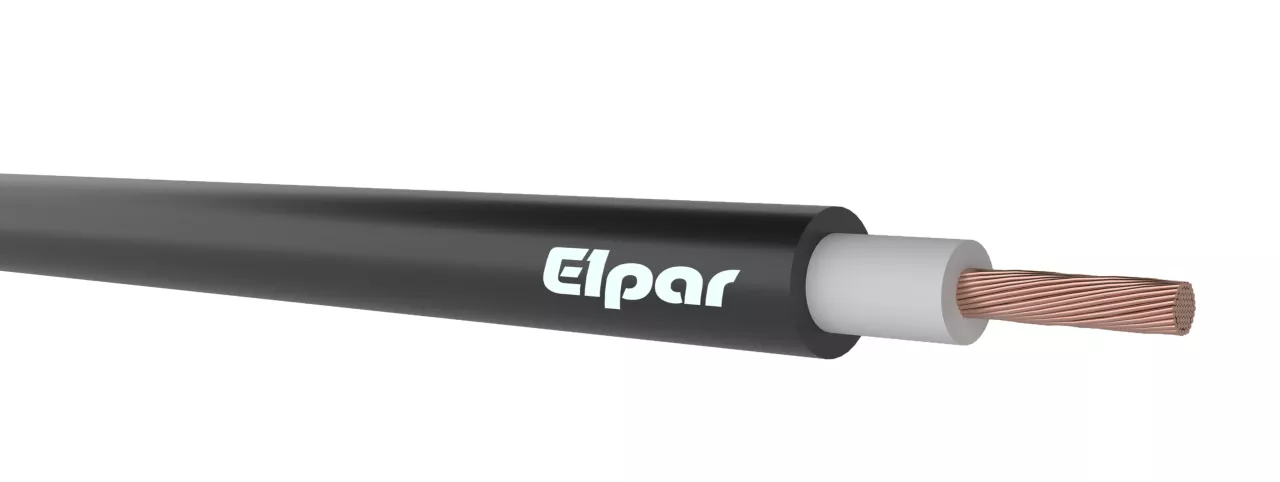

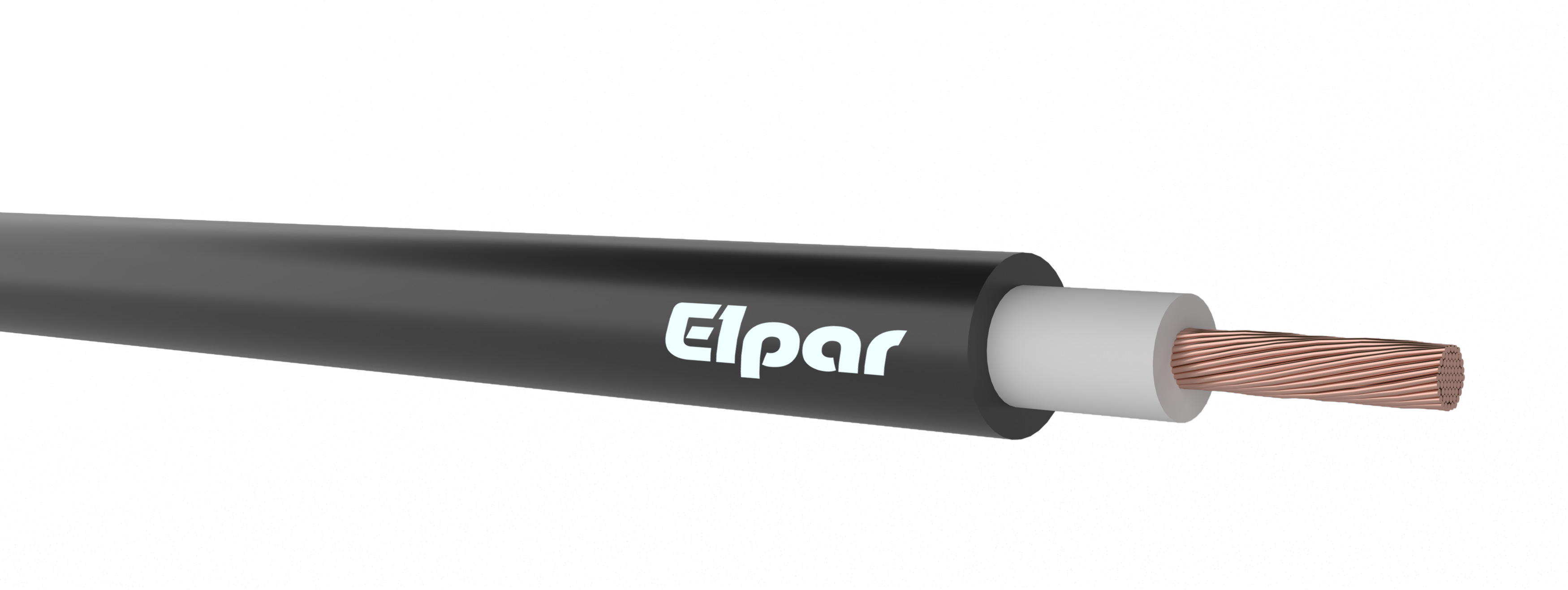

LgYcyw 3,6/6kV 1x95 mm2; Przewód
| Information | Value |
|---|---|
| Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
| Symbol | 5901854427133 |
| GTIN(EAN) | 5901854427133 |
| Price unit | kilometer |
| Catalog price | 209 100,00 zł (170 000,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,13 t |
| ETIM class: | Power cable >= 1 kV, for permanent installation |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 95 mm² |
| Conductor category: | Class 5 = flexible |
| Shape of conductor: | Round |
| Number of cores: | 1 |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Specification core insulation: | Other |
| Core identification: | Colour |
| Laminated sheath: | no |
| Fibre optic elements: | no |
| Inner semi-conducting layer: | no |
| Outer semi-conducting layer: | no |
| Screen: | no |
| Drain wire: | no |
| Lead sheath: | no |
| Number of pilot/reduced conductors: | 0 |
| Concentric conductor: | None |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Black |
| Conductive coating: | no |
| Longitudinal water blocking conductors: | no |
| Longitudinal water blocking screen: | no |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Halogen free according to EN IEC 60754-2: | no |
| Outer diameter approx.: | 26.4 mm |
| Max. conductor temperature: | 90 °C |
| Nominal voltage U0: | 3.6 kV |
| Nominal voltage U: | 6 kV |
| Oil resistant according to EN IEC 60811-404: | no |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-06-19 10:18:12 |
| Files to download: |
