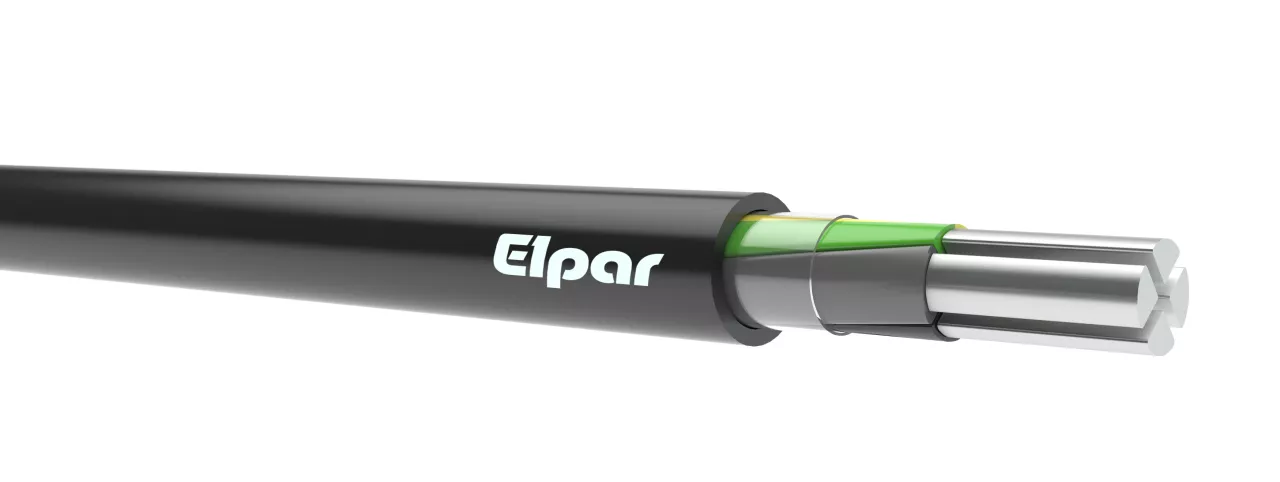

YAKXSżo 0,6/1kV 4x35 SE mm2; Kabel
Information | Value |
---|---|
Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
Symbol | 5901854411262 |
GTIN(EAN) | 5901854411262 |
Price unit | kilometer |
Catalog price | 20 619,72 zł (16 764,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 604,5 kg |
ETIM class: | Power cable < 1 kV, for permanent installation |
Conductor material: | Aluminium |
Conductor surface: | Bare |
Nominal cross section conductor: | 35 mm² |
Conductor category: | Class 1 = solid |
Number of cores: | 4 |
Twisted cores: | yes |
Material core insulation: | Other |
Specification core insulation: | Crosslinked polyethylene (XLPE) |
Core identification: | Colour |
Core colour: | Several |
Max. conductor temperature: | 90 °C |
Screen: | no |
Drain wire: | no |
Protective barrier: | None |
Armouring/reinforcement: | None |
Material outer sheath: | Polyvinyl chloride (PVC) |
Specification material outer sheath: | Other |
Colour outer sheath: | Black |
Cable geometry: | Round |
Reaction-to-fire according to EN 13501-6: Class: | Eca |
Reaction-to-fire according to EN 13501-6: Smoke production: | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
Reaction-to-fire according to EN 13501-6: Acidity: | None |
Low temperature resistant according to EN 60811-504+505+506: | no |
Oil resistant according to EN IEC 60811-404: | no |
Outer diameter approx.: | 22.8 mm |
Min. permitted bending radius, stationary application/permanent installation: | 273.6 mm |
Nominal voltage U0: | 600 V |
Nominal voltage U: | 1000 V |
Shape of conductor: | Round |
Suitable as installation cable: | no |
Certified for shipboard application: | no |
Certified as airport lighting cable: | no |
Low smoke according to EN IEC 61034-2: | no |
