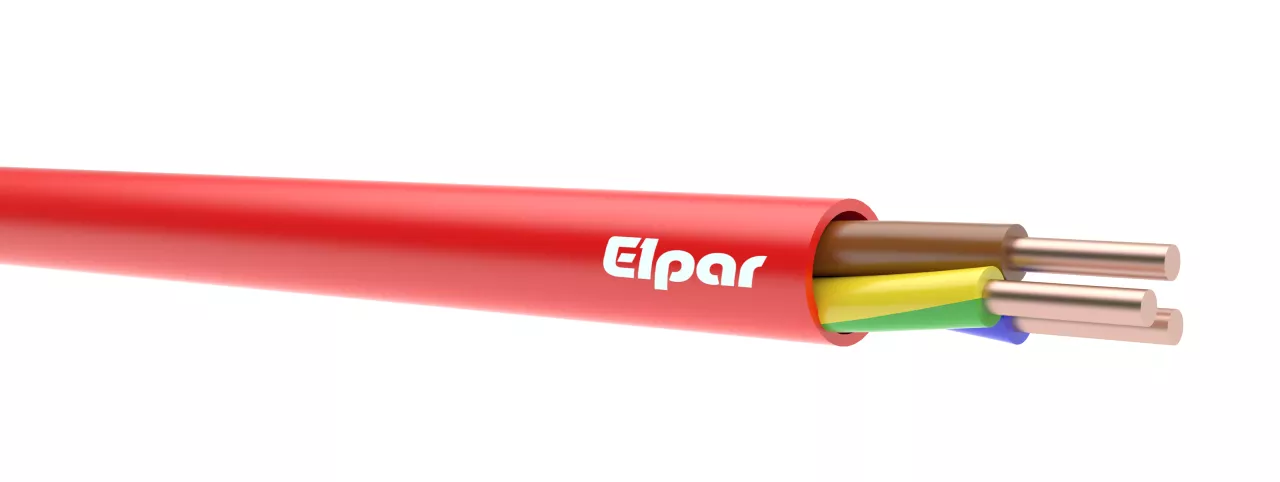

HDGsżo 300/500V FE180 PH90/E90 3x1,5 mm2; Kabel
| Information | Value |
|---|---|
| Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
| Symbol | 5901854407180 |
| GTIN(EAN) | 5901854407180 |
| Price unit | kilometer |
| Catalog price | 8 114,31 zł (6 597,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 87,84 kg |
| ETIM class: | Power cable < 1 kV, for permanent installation |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 1.5 mm² |
| Diameter conductor: | 7.9 mm |
| Conductor category: | Class 1 = solid |
| Number of cores: | 3 |
| Twisted cores: | yes |
| Material core insulation: | Other |
| Core identification: | Colour |
| Core colour: | Several |
| Max. conductor temperature: | 90 °C |
| Screen: | no |
| Drain wire: | no |
| Protective barrier: | None |
| Armouring/reinforcement: | None |
| Material outer sheath: | Polyolefin |
| Specification material outer sheath: | Other |
| Colour outer sheath: | Red |
| Cable geometry: | Round |
| Reaction-to-fire according to EN 13501-6: Class: | None |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Low temperature resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 7.9 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 47.4 mm |
| Nominal voltage U0: | 300 V |
| Nominal voltage U: | 500 V |
| Shape of conductor: | Round |
| Suitable as installation cable: | no |
| Certified for shipboard application: | no |
| Certified as airport lighting cable: | no |
| Low smoke according to EN IEC 61034-2: | yes |
