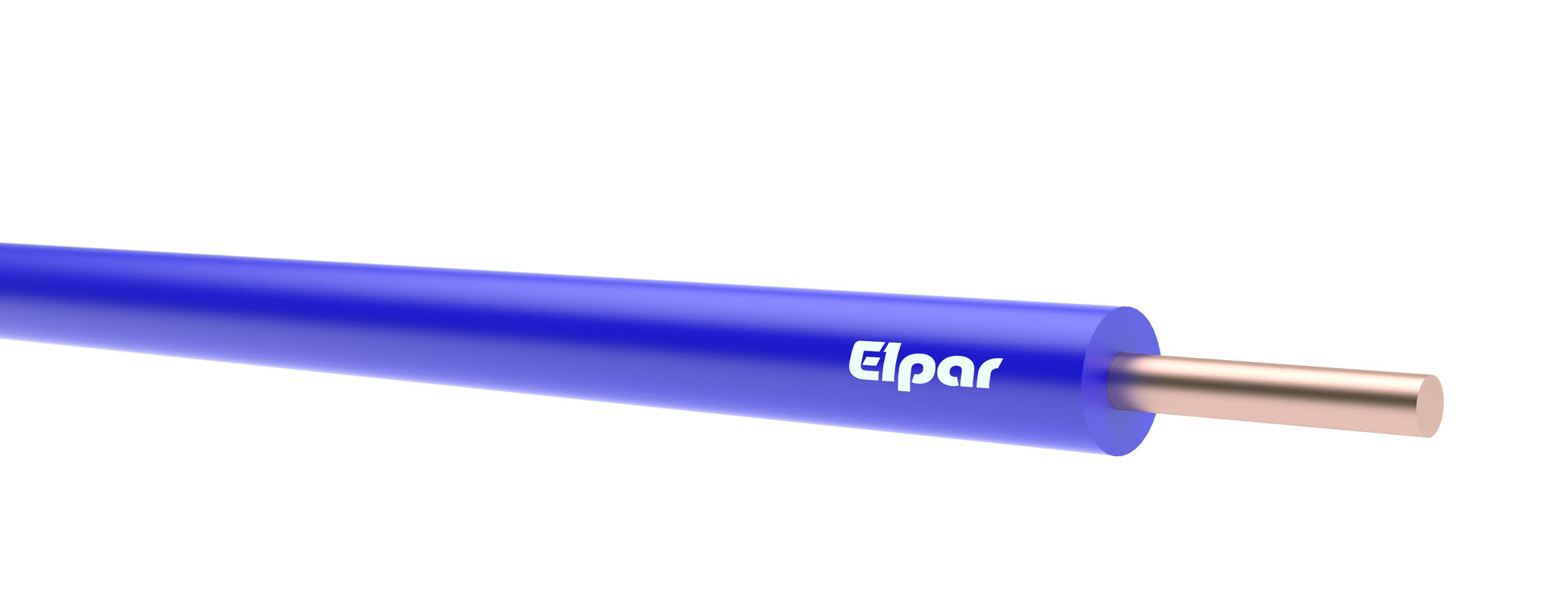

H07V-U 450/750V 1x4 mm2 brąz; Przewód
Information | Value |
---|---|
Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
Symbol | 5901854406978 |
GTIN(EAN) | 5901854406978 |
Price unit | kilometer |
Catalog price | 4 003,65 zł (3 255,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 43,1 kg |
ETIM class: | Power cable < 1 kV, for permanent installation |
Conductor material: | Copper |
Conductor surface: | Bare |
Nominal cross section conductor: | 4 mm² |
Diameter conductor: | 3.8 mm |
Conductor category: | Class 1 = solid |
Number of cores: | 1 |
Twisted cores: | no |
Material core insulation: | Polyvinyl chloride (PVC) |
Specification core insulation: | Other |
Core identification: | Colour |
Core colour: | Several |
Max. conductor temperature: | 70 °C |
Screen: | no |
Drain wire: | no |
Protective barrier: | None |
Armouring/reinforcement: | None |
Material outer sheath: | Polyvinyl chloride (PVC) |
Specification material outer sheath: | Other |
Colour outer sheath: | Brown |
Cable geometry: | Round |
Reaction-to-fire according to EN 13501-6: Class: | Eca |
Reaction-to-fire according to EN 13501-6: Smoke production: | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
Reaction-to-fire according to EN 13501-6: Acidity: | None |
Low temperature resistant according to EN 60811-504+505+506: | no |
Oil resistant according to EN IEC 60811-404: | no |
Outer diameter approx.: | 3.8 mm |
Min. permitted bending radius, stationary application/permanent installation: | 15.2 mm |
Nominal voltage U0: | 450 V |
Nominal voltage U: | 750 V |
Shape of conductor: | Round |
Suitable as installation cable: | no |
Certified for shipboard application: | no |
Certified as airport lighting cable: | no |
Low smoke according to EN IEC 61034-2: | no |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
DORIAN DKL Sp. z o.o. - centrala Legionowo
Legionowo Michałów-Reginów, Warszawska 10B
Legionowo Michałów-Reginów, Warszawska 10B
Distance:
0.009 kilometra
1 072,83 zł/km
DORIAN DKL Sp. z o.o. - oddział Ciechanów
Ciechanów, Niechodzka 3
Ciechanów, Niechodzka 3
Distance:
0.048 kilometra
2 149,43 zł/km
DORIAN DKL Sp. z o.o. - oddział Łomianki
Łomianki Kiełpin Poduchowny, Warszawska 380
Łomianki Kiełpin Poduchowny, Warszawska 380
Distance:
0.068 kilometra
1 312,67 zł/km
Buy online
Buy / order
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-06-19 10:18:11 |
Files to download: |
