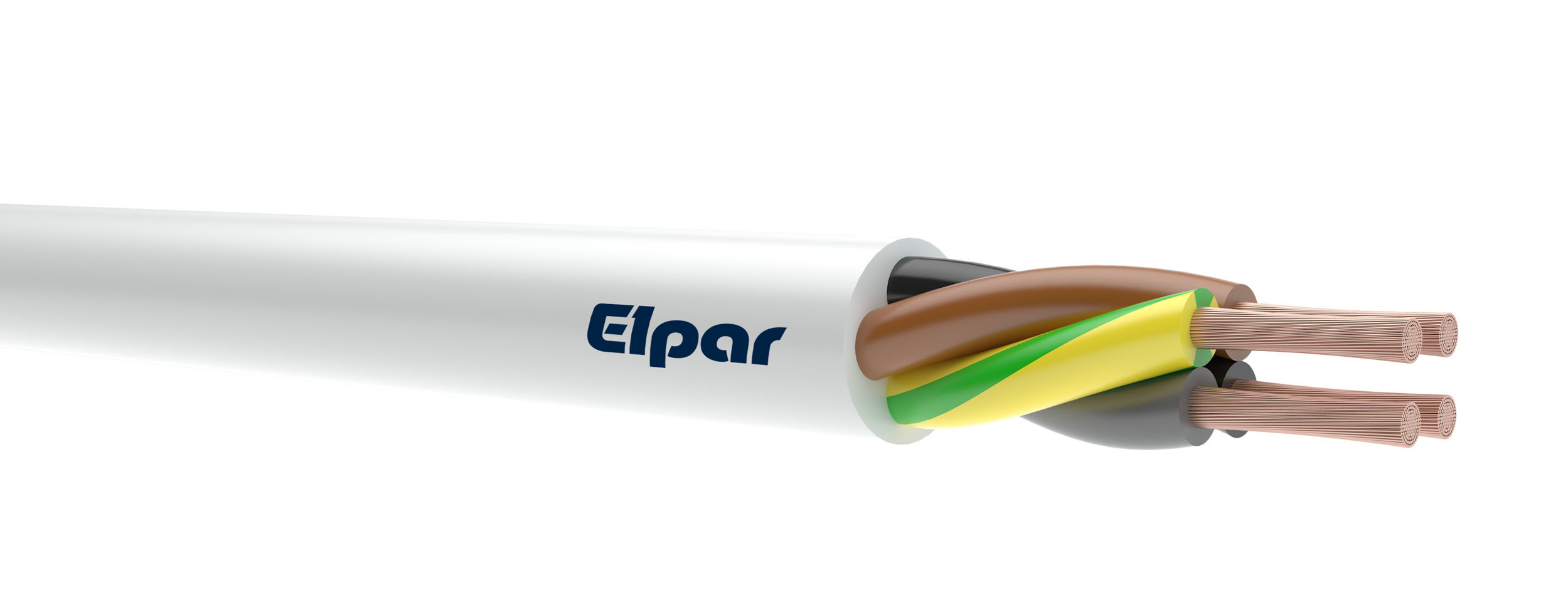

H05VV-F 300/500V 4G4 mm2; Przewód
| Information | Value |
|---|---|
| Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
| Symbol | 5901854404578 |
| GTIN(EAN) | 5901854404578 |
| Price unit | kilometer |
| Catalog price | 15 783,36 zł (12 832,00 zł + 23% VAT) |
| Sale price |
from 4,83 zł
/ m from 4 833,90 zł / km (3 930,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 269,5 kg |
| ETIM class: | Power cable < 1 kV, for moving application |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 4 mm² |
| Conductor category: | Class 5 = flexible |
| Number of cores: | 4 |
| Stranding element: | No |
| Material core insulation: | Polyvinyl chloride (PVC) |
| Specification core insulation: | Other |
| Core identification: | Colour |
| Screen over stranding element: | None |
| Screen over stranding: | None |
| Suspension element: | None |
| Material outer sheath: | Polyvinyl chloride (PVC) |
| Specification material outer sheath: | Other |
| Colour outer sheath: | White |
| Cable geometry: | Round |
| Torsion resistant: | no |
| Reaction-to-fire according to EN 13501-6: Class: | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Low temperature resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 12.2 mm |
| Min. permitted bending radius, stationary application/permanent installation: | 73.2 mm |
| Nominal voltage U0: | 300 V |
| Nominal voltage U: | 500 V |
| Shape of conductor: | Round |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
DORIAN DKL Sp. z o.o. - centrala Legionowo
Legionowo Michałów-Reginów, Warszawska 10B
Legionowo Michałów-Reginów, Warszawska 10B
Distance:
0.005 kilometra
6,18 zł/m
(6 179,52 zł/km)
(6 179,52 zł/km)
DORIAN DKL Sp. z o.o. - oddział Płock
Płock, Przemysłowa 18
Płock, Przemysłowa 18
Distance:
0.001 kilometra
4,83 zł/m
(4 833,90 zł/km)
(4 833,90 zł/km)
Buy / order
Wholesaler
Address
Distance
Available
Actions
Piaseczno,
Jana Pawła II 62
Distance:
Dostępność:
0.392 km
Myślenice,
Słowackiego 96b
Distance:
Dostępność:
0.2 km
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-11-04 11:20:13 |
| Files to download: |
