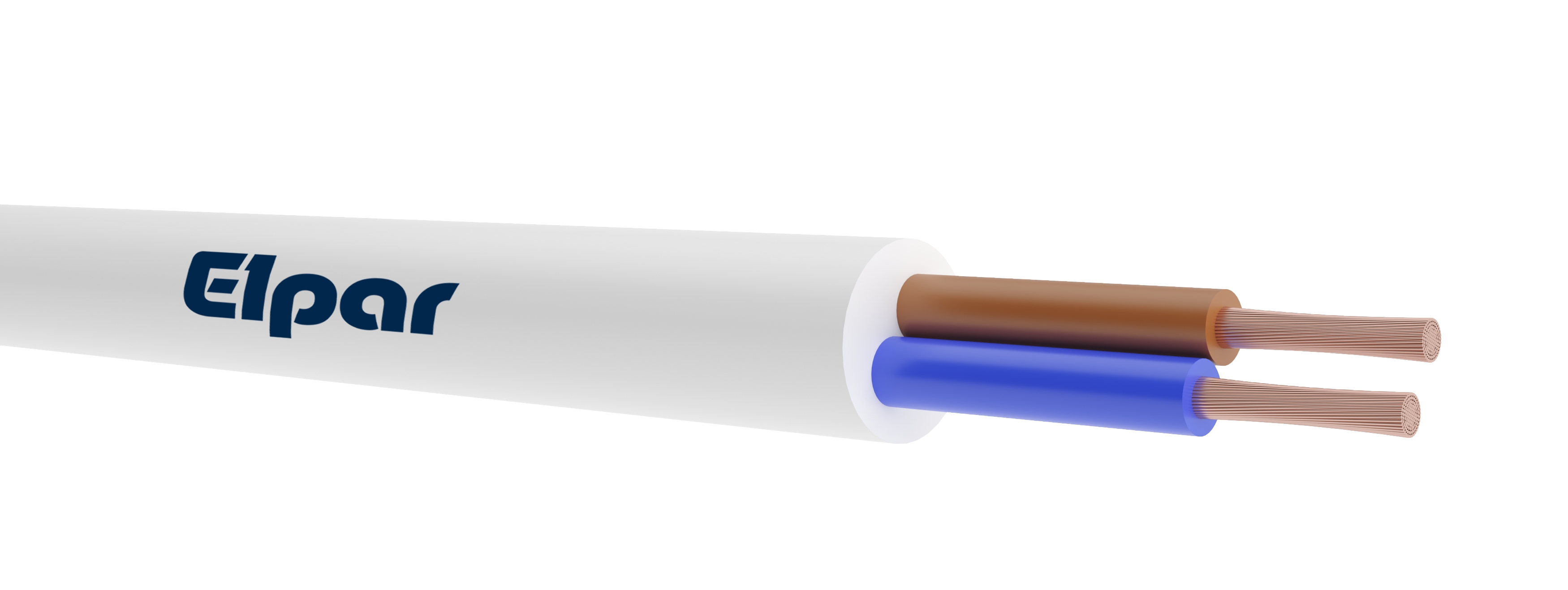

H03VV-F 300/300V 2x0,75 mm2; Przewód
Information | Value |
---|---|
Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
Symbol | 5901854402956 |
GTIN(EAN) | 5901854402956 |
Price unit | kilometer |
Catalog price | 2 086,08 zł (1 696,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 43,05 kg |
ETIM class: | Power cable < 1 kV, for moving application |
Conductor material: | Copper |
Conductor surface: | Bare |
Nominal cross section conductor: | 0.75 mm² |
Conductor category: | Class 5 = flexible |
Number of cores: | 2 |
Stranding element: | No |
Material core insulation: | Polyvinyl chloride (PVC) |
Specification core insulation: | Other |
Core identification: | Colour |
Screen over stranding element: | None |
Screen over stranding: | None |
Suspension element: | None |
Material outer sheath: | Polyvinyl chloride (PVC) |
Specification material outer sheath: | Other |
Colour outer sheath: | White |
Cable geometry: | Round |
Torsion resistant: | no |
Reaction-to-fire according to EN 13501-6: Class: | Eca |
Reaction-to-fire according to EN 13501-6: Smoke production: | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
Reaction-to-fire according to EN 13501-6: Acidity: | None |
Low temperature resistant according to EN 60811-504+505+506: | no |
Oil resistant according to EN IEC 60811-404: | no |
Outer diameter approx.: | 5.4 mm |
Min. permitted bending radius, moving application/free movement: | 27 mm |
Nominal voltage U0: | 300 V |
Nominal voltage U: | 300 V |
Shape of conductor: | Round |
