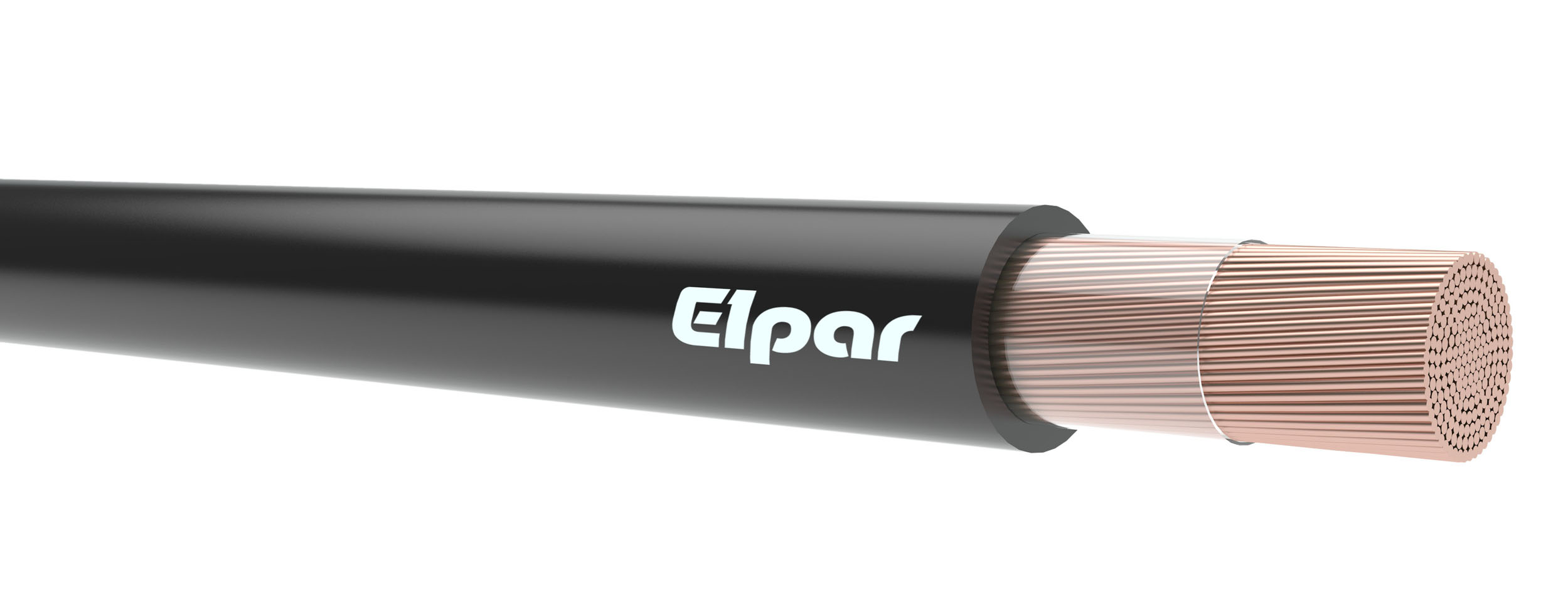

H01N2-D 100/100V 1x16 mm2 czerwony; Przewód
| Information | Value |
|---|---|
| Supplier | ELPAR Fabryka Kabli Sp. z o.o. |
| Symbol | 5901854402840 |
| GTIN(EAN) | 5901854402840 |
| Price unit | kilometer |
| Catalog price | 16 060,11 zł (13 057,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 195,3 kg |
| ETIM class: | Power cable < 1 kV, for moving application |
| Conductor material: | Copper |
| Conductor surface: | Bare |
| Nominal cross section conductor: | 16 mm² |
| Conductor category: | Class 6 = very flexible |
| Number of cores: | 1 |
| Stranding element: | No |
| Core identification: | None |
| Screen over stranding element: | None |
| Screen over stranding: | None |
| Suspension element: | None |
| Material outer sheath: | Rubber |
| Colour outer sheath: | Black |
| Cable geometry: | Round |
| Torsion resistant: | no |
| Reaction-to-fire according to EN 13501-6: Class: | None |
| Reaction-to-fire according to EN 13501-6: Smoke production: | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
| Reaction-to-fire according to EN 13501-6: Acidity: | None |
| Low temperature resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN IEC 60811-404: | no |
| Outer diameter approx.: | 9 mm |
| Min. permitted bending radius, moving application/free movement: | 36 mm |
| Nominal voltage U0: | 100 V |
| Nominal voltage U: | 100 V |
| Shape of conductor: | Round |
