RURA GIĘTKA KARB.20/14,5PVC/PIL/25M/750N
| Information | Value |
|---|---|
| Supplier | ELEKTROPLAST Sp. z o.o. Stróża |
| Symbol | 05.64 |
| GTIN(EAN) | 5907760071989 |
| Price unit | meter |
| Catalog price | 3,16 zł (2,57 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

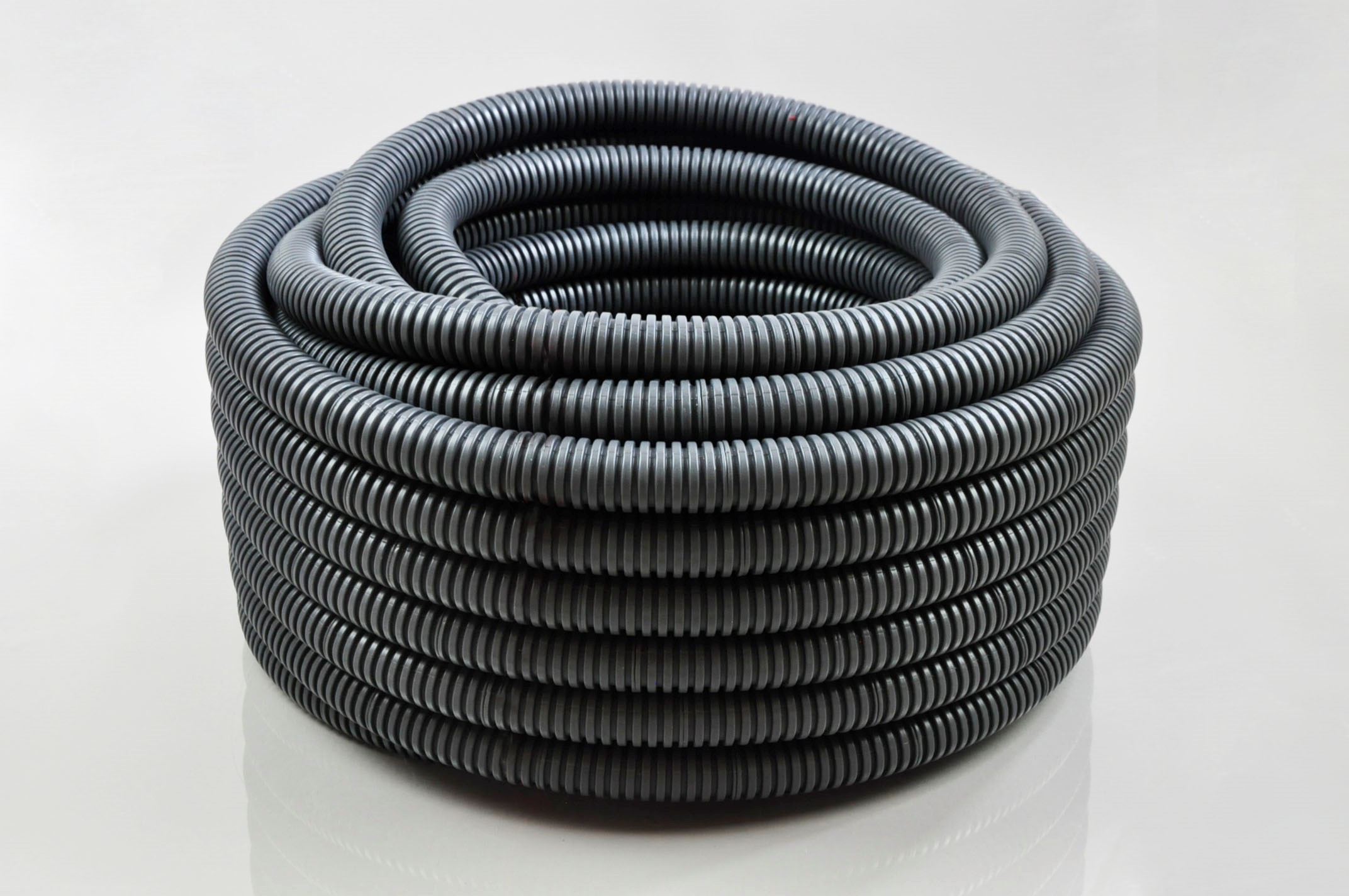

Rury giętkie karbowane RKSG z PVC modyfikowanego przeznaczone są do ochrony i prowadzenia przewodów izolowanych lub kabli w instalacjach elektrycznych. Mają zastosowanie w miejscach o podwyższonym zagrożeniu pożarowym (strychy, poddasza) oraz w instalacjach prowadzonych na zewnątrz budynków pod warunkiem prowadzenia instalacji w bruzdach pod tynkiem.
Najczęstsze zastosowanie typu RKSG do prowadzenia instalacji w budownictwie na mokro (w szalunkach i stropach zalewanych betonem wibrowanym).
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Corrugated plastic hose |
| Nominal diameter: | 20 mm |
| Nominal size in inch: | Other |
| Outer diameter: | 20 mm |
| Inner diameter: | 14.5 mm |
| Material: | Polyvinyl chloride (PVC) |
| Compressive strength: | 750 N |
| Operating temperature: | -25 - 60 °C |
| Degree of protection (IP): | Other |
| Fire resistance according to UL94: | HB |
| UV resistant: | no |
| Oil resistant: | yes |
| Colour: | Grey |
| Sheathing material: | Not sheathed |
| Flame accelerating: | yes |
| Bending strength: | Pliable |
| Lengthwise slotted: | no |
| Closable (two-part): | no |
| Halogen free: | no |
| With draw wire: | no |
| High conducting inner coating: | no |
| Approved according to DIN EN 61386-23: | no |
| Approved according to UR: | no |
| Approved according to CSA: | no |
| Approved according to LUL/British Standard: | no |
| Approved according to Lloyd's Register TA: | no |
| Approved according to UTAC: | no |
| Approved according to NF F 16-101: | no |
