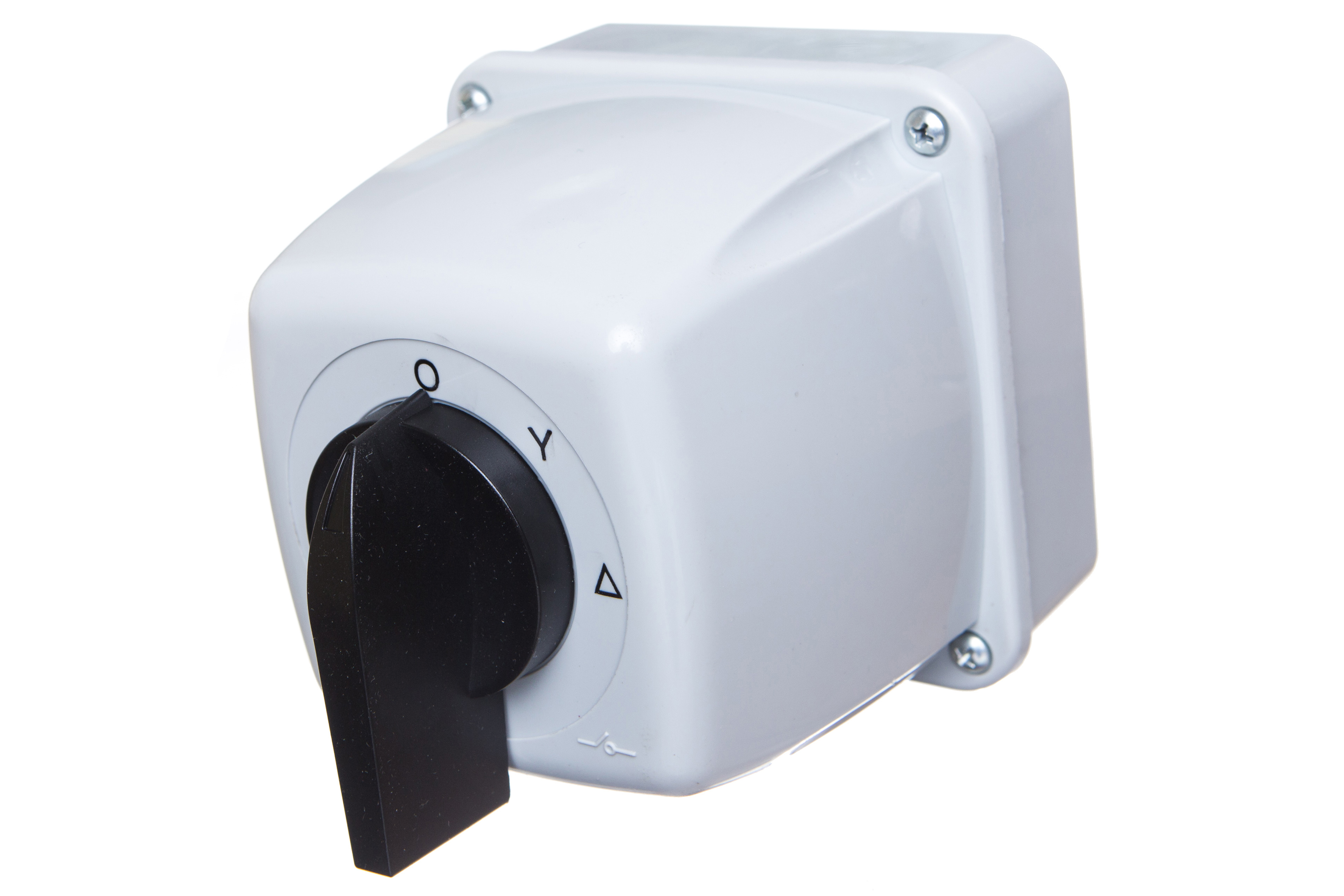

Łącznik krzywkowy Łuk 25-23 Gwiazda-trójkąt 0-Y-Δ IP-65
| Information | Value |
|---|---|
| Supplier | ELEKTROMET Dzierżoniów |
| Symbol | 922514 |
| GTIN(EAN) | 5906197481224 |
| Price unit | piece |
| Catalog price | 180,67 zł (146,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Off-load switch |

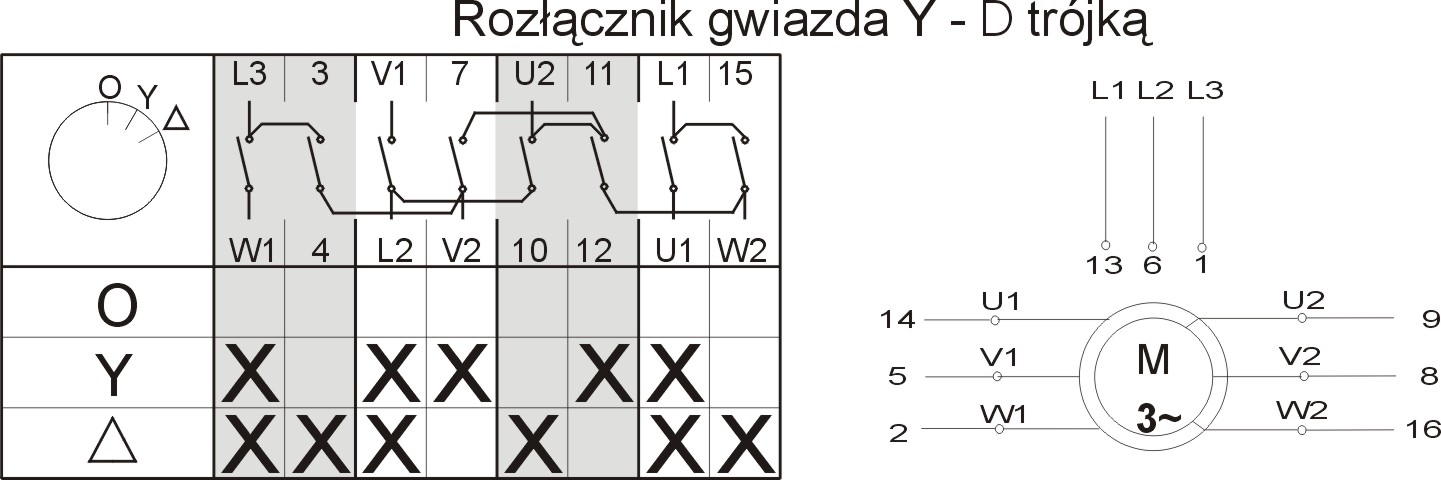

| Model: | Star-delta switch |
| Number of poles: | 3 |
| With zero (off) position: | yes |
| With retraction in 0-position: | no |
| Rated permanent current Iu: | 25 A |
| Rated operation current Ie at AC-3, 400 V: | 14 A |
| Rated operation power at AC-3, 400 V: | 7 kW |
| Degree of protection (IP), front side: | IP65 |
| Suitable for front mounting: | no |
| Complete device in housing: | yes |
| Housing material: | Plastic |
| Type of control element: | Turn button |
| Type of electrical connection of main circuit: | Screw connection |
