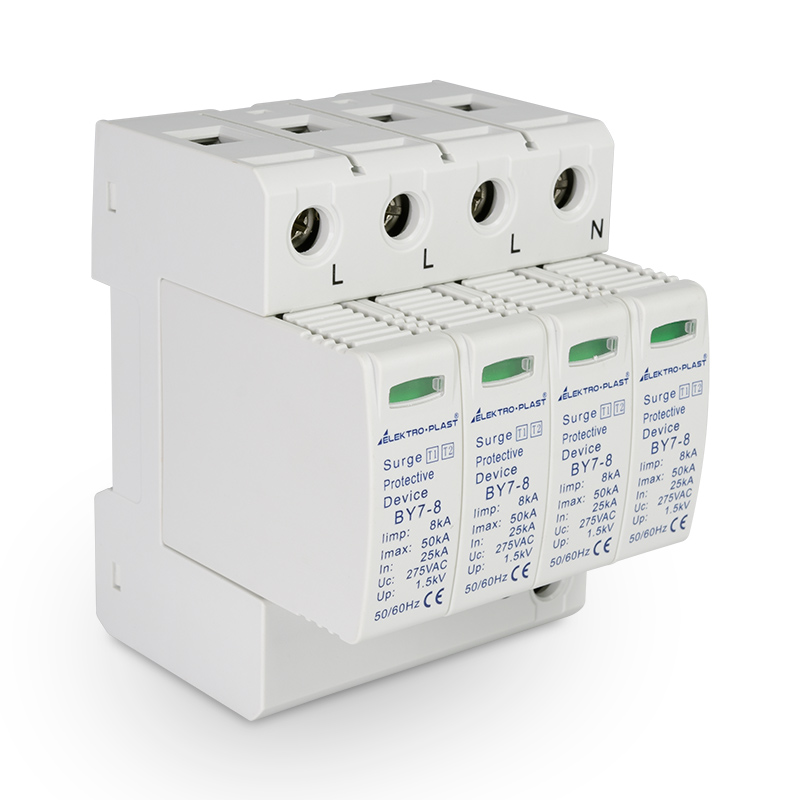

Ogranicznik przepięć B+C 4P (T1+T2 AC) 8kA BY7-8 biały
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 87.786 |
| GTIN(EAN) | 5901769010987 |
| Price unit | piece |
| Catalog price | 236,04 zł (191,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 478 g |
| Gross weight: | 520 g |
| ETIM class: | Combined arrester for power supply systems |
| System configuration TN-S: | yes |
| Number of poles: | 4 |
| Lightning impulse current (10/350 µs): | 8 kA |
| Nominal voltage AC: | 230 V |
| Voltage protection level: | 1.2 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Degree of protection (IP): | IP20 |
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-29 12:51:11 |
| Files to download: |
