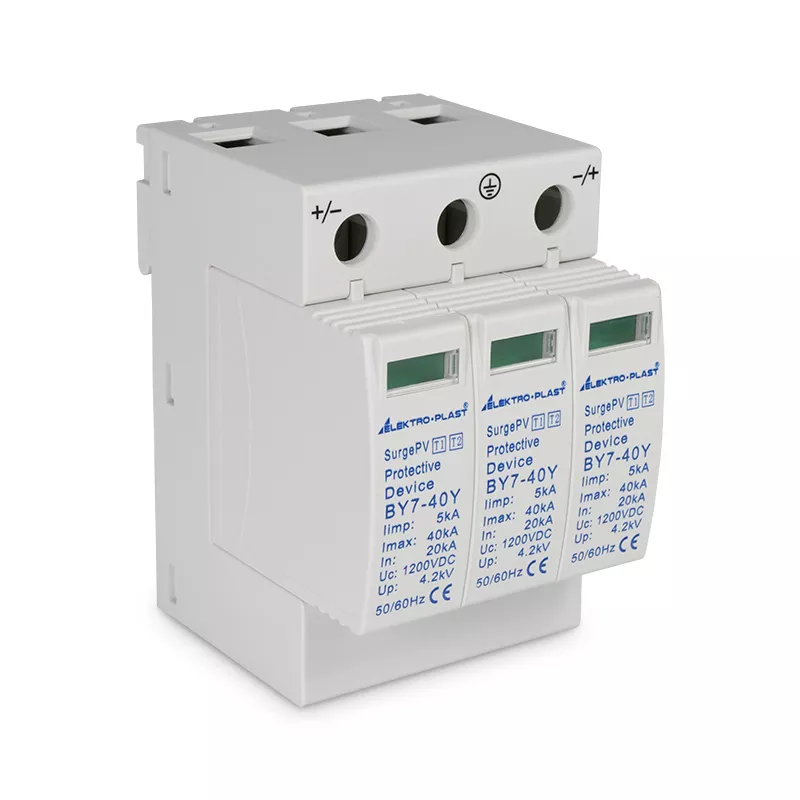

Ogranicznik przepięć PV 3P (T1+T2 DC) BY7-40Y-DC 1200VDC biały
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 87.741 |
GTIN(EAN) | 5901769010932 |
Price unit | piece |
Catalog price | 211,19 zł (171,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 278 g |
Gross weight: | 300 g |
ETIM class: | Combined arrester for power supply systems |
System configuration DC: | yes |
Number of poles: | 3 |
Lightning impulse current (10/350 µs): | 5 kA |
Nominal voltage DC: | 1200 V |
Max. PV-voltage: | 1200 V |
Voltage protection level: | 4.2 kV |
Follow current extinguishing capability: | 20 kA |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 3 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
Remote signalling: | no |
Signalling at the device: | Optical |
Test class: | Type 1 + 2 |
Degree of protection (IP): | IP20 |
