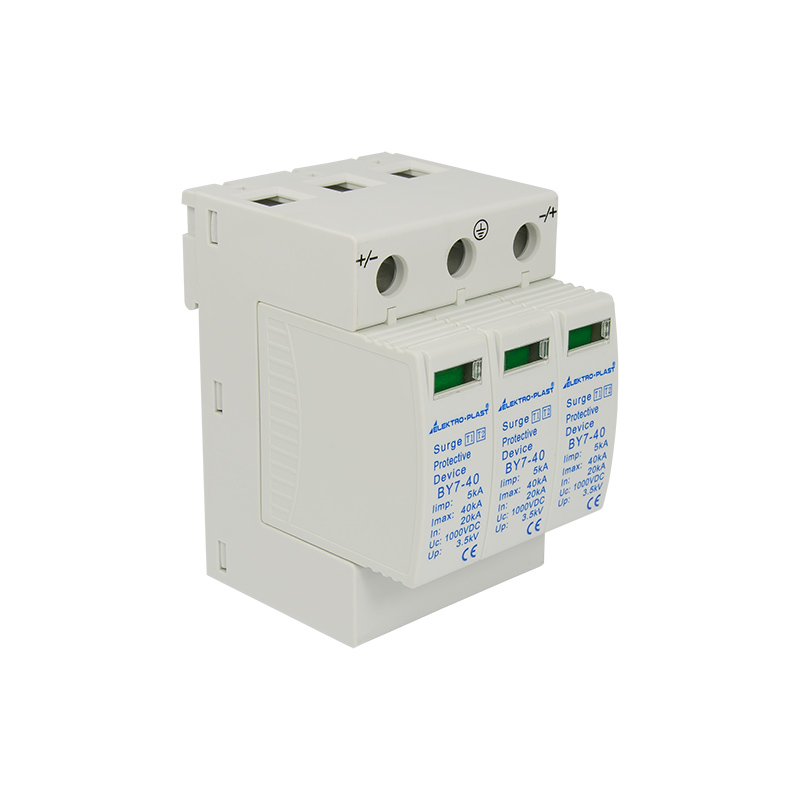

Ogranicznik przepięć PV 3P (T1+T2 DC) BY7-40 1000VDC biały
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 87.740 |
| GTIN(EAN) | 5905548287980 |
| Price unit | piece |
| Catalog price | 192,56 zł (156,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 274 g |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | yes |
| Number of poles: | 3 |
| Lightning impulse current (10/350 µs): | 5 kA |
| Max. continuous voltage DC: | 3500 V |
| Nominal voltage DC: | 1000 V |
| Max. PV-voltage: | 1000 V |
| Voltage protection level: | 4 kV |
| Follow current extinguishing capability: | 20 kA |
| Mounting method: | DIN rail (top hat rail) 35 mm |

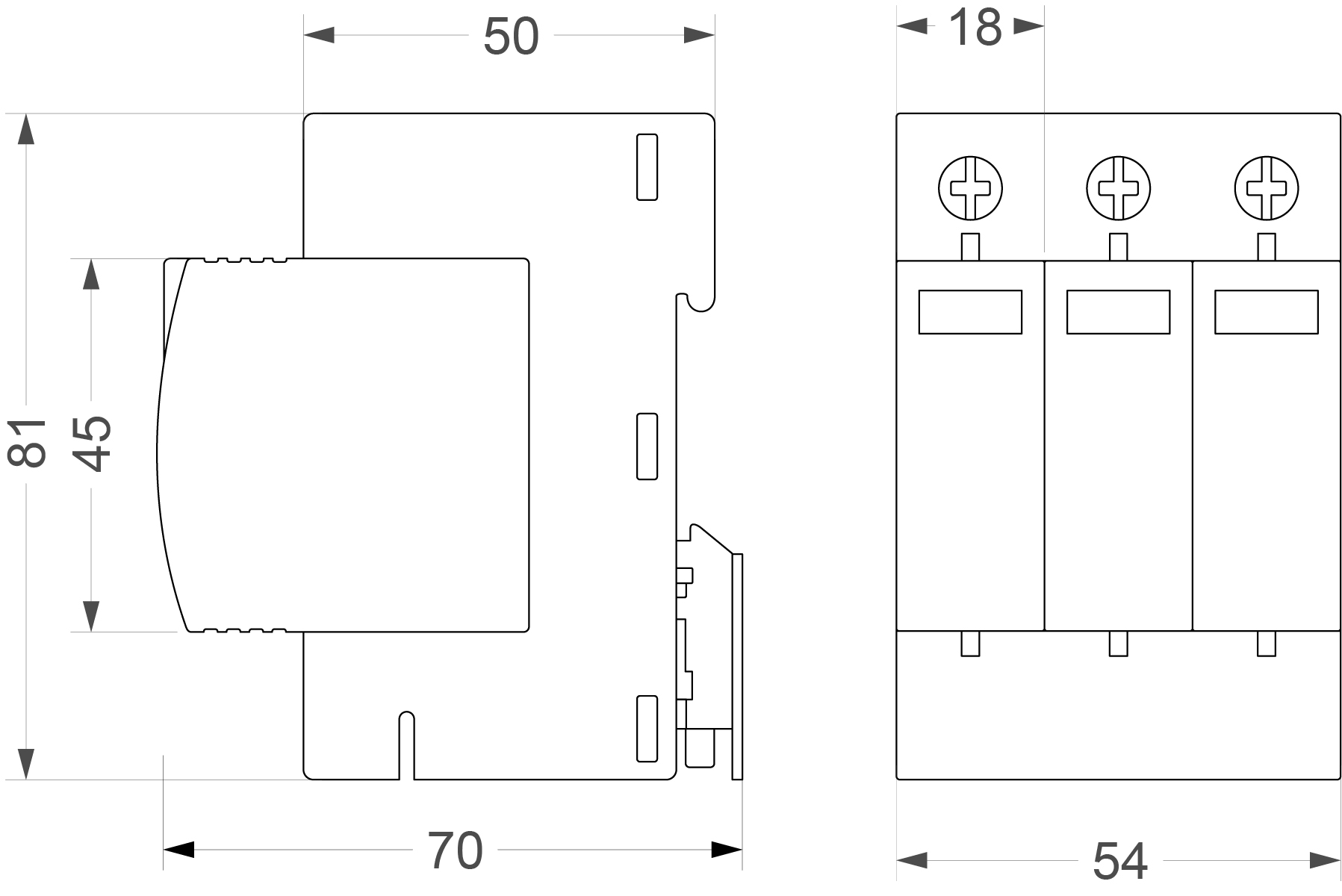

| Construction size: | 3 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Remote signalling: | no |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Degree of protection (IP): | IP20 |
