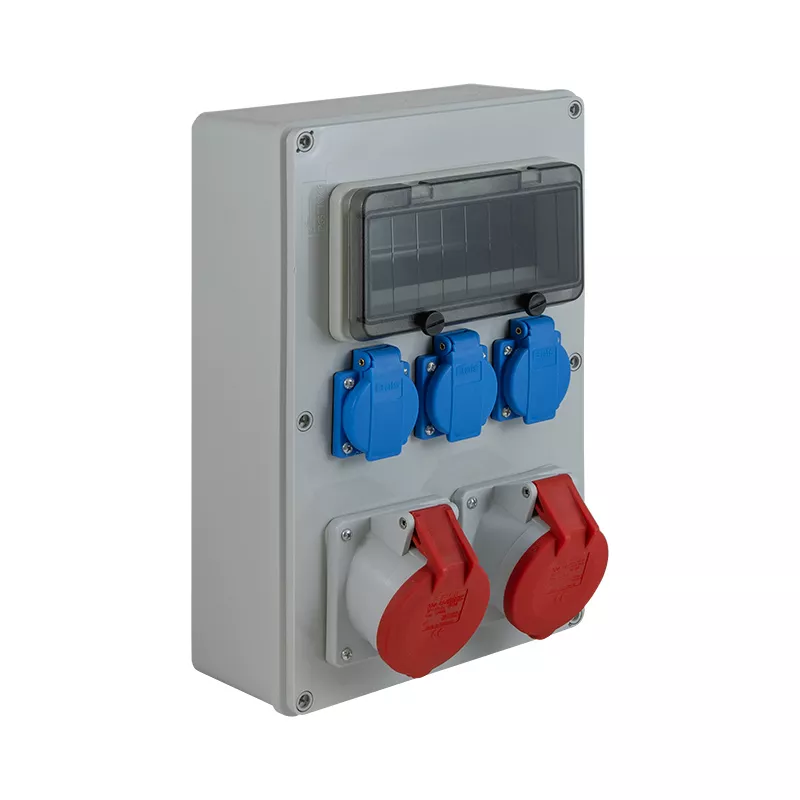

Rozdzielnica budowlana RB-3232 IP44 1x32A/5P,1x32A/5P,3xGS szara
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 65.3232 |
| GTIN(EAN) | 5901769011953 |
| Price unit | piece |
| Catalog price | 252,19 zł (205,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

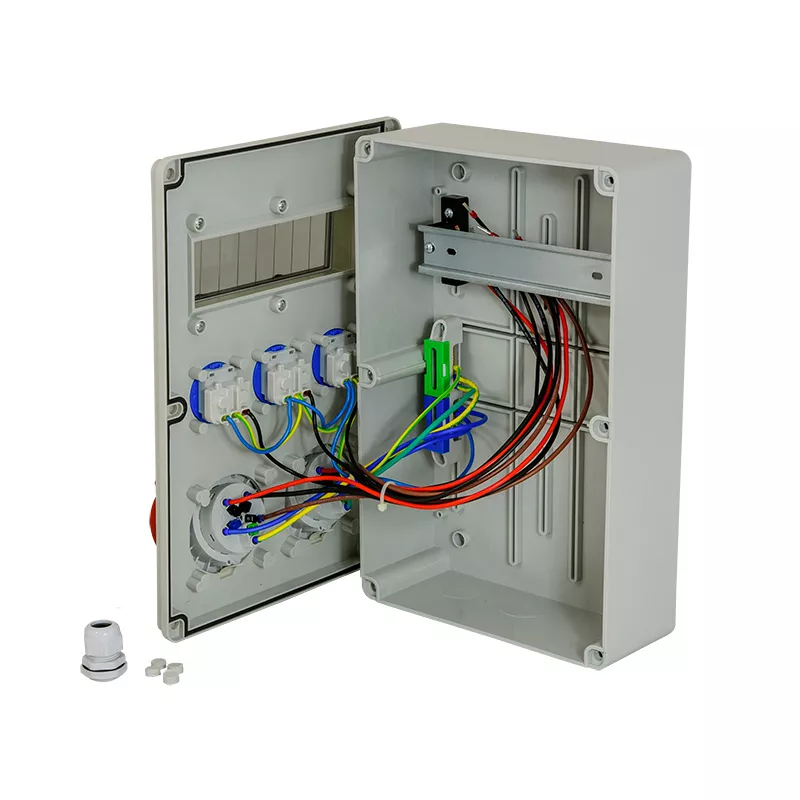

Rozdzielnica budowlana wyposażona jest w dwa gniazda 32/5P oraz trzy gniazda 230V+Z. Posiada okienko pod zabudowę dla 9 modułów. gniazda są oprzewodowane i przygotowane do podpięcia pod zabezpieczenia nadmiarowo-prądowe, Przewody N oraz PE są połączone na wspólnej listwie LZ dla układu sieci TN-S. W zestawie znajduje się dławik PG16 oraz cztery zaślepki wkrętów montażowych . Wszystkie elementy składowe rozdzielnicy posiadają niezbędne badania według obowiązujących norm.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,13 kg |
| ETIM class: | Energy distributor for construction site |
| Model: | Distributor cabinet |
| Rated voltage: | 230/400 V |
| Rated current: | 32 A |
| Connected load: | 12.5 kVA |
| Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): | 3 |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): | 2 |
| Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F): | 0 |
| Number of socket outlets Swiss standard type 13: | 0 |
| Number of socket outlets Swiss standard type 15: | 0 |
| Number of socket outlets Swiss standard type 23: | 0 |
| Number of socket outlets Swiss standard type 25: | 0 |
| Number of meter panels: | 0 |
| Main switch: | None |
| Main switch rated current: | 0 A |
| Number of poles main switch: | 0 |
| Number of miniature circuit breakers (MCB): | 0 |
| Number of earth leakage switches 10 mA: | 0 |
| Number of earth leakage switches 30 mA: | 0 |
| Number of earth leakage switches 300 mA: | 0 |
| Degree of protection (IP): | IP44 |
| Housing material: | Plastic |

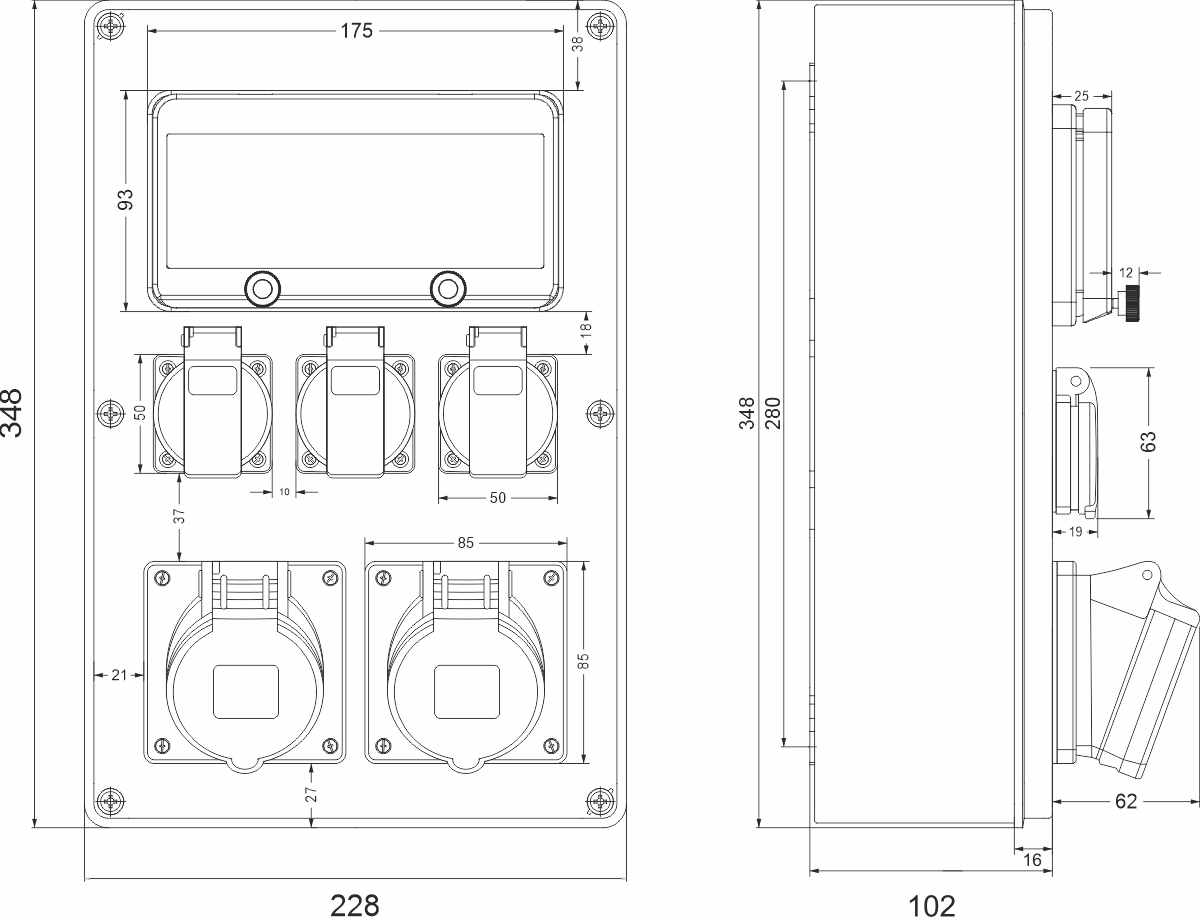

| Width: | 228 mm |
| Height: | 348 mm |
| Depth: | 170 mm |
