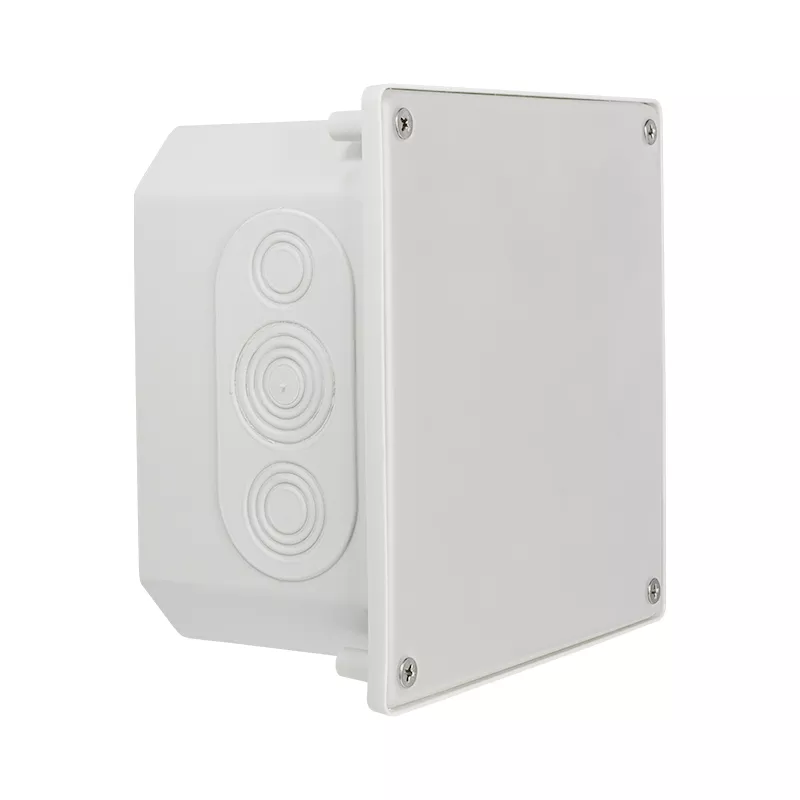

Puszka Podtynkowa Elewacyjna Hermetyczna Ppt-EH161 szara
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 64.161 |
| GTIN(EAN) | 5905548282350 |
| Price unit | piece |
| Catalog price | 35,67 zł (29,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszki podtynkowe Pp/t wykonane są z tworzyw sztucznych o wysokiej wytrzymałości mechanicznej jak i elektrycznej. Puszki te mają zastosowanie w podtynkowych instalacjach elektrycznych. Wewnątrz puszek możliwy jest montaż płytek odgałęźnych, płyty montażowej lub szyny TH. Puszki posiadają dławice membranowe oraz zaopatrzone są w kołnierz wokół korpusu ułatwiający montaż puszek. Puszka wyposażona jest również w zaślepkę tekturową, która chroni jej wnętrze przed zabrudzeniem w czasie prac budowlanych.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 270 g |
| Gross weight: | 280 g |
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Mounting method: | Flush-mounted |
| Shape: | Square |
| Construction type: | Built-in installation box (device box) |
| Model: | Single |
| Provided with revolving ring: | no |
| Couplable: | no |
| Equipped with: | Other |
| Diameter: | 0 mm |

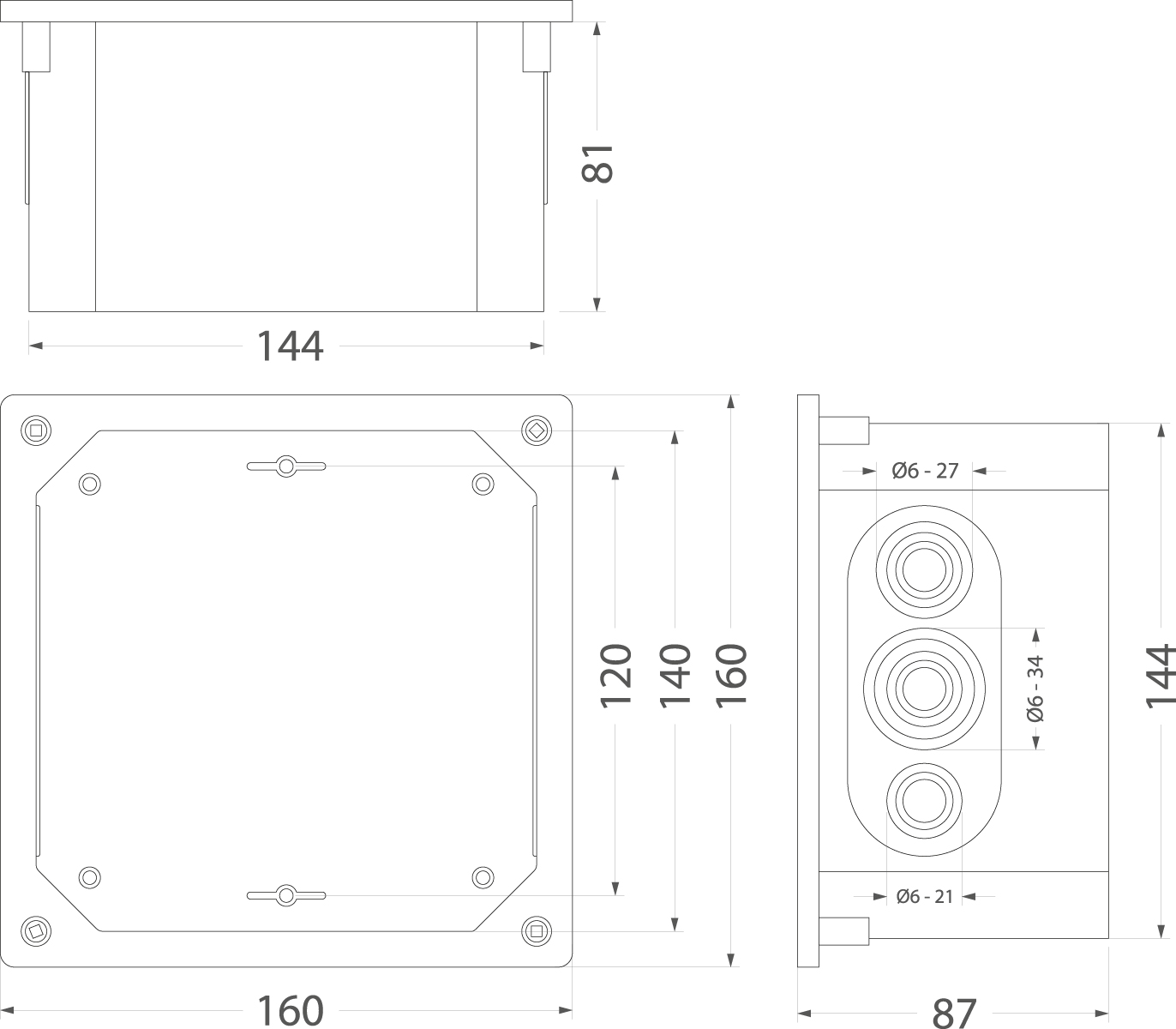

| Length: | 160 mm |
| Width: | 160 mm |
| Depth: | 88 - 88 mm |
| Inner depth: | 76 mm |
| For number of electric fittings: | 4 |
| Mounting switching equipment: | Screwing |
| With screws: | no |
| Number of non-adjustable device fixing lugs: | 0 |
| Number of adjustable device fixing lugs: | 0 |
| Housing feed-through by break-out opening: | yes |
| Housing feed-through by seal membrane: | yes |
| Housing feed-through by nozzle: | yes |
| Housing feed-through by step membrane: | yes |
| For tube diameter: | 32 mm |
| Suitable for cable diameter: | 8 - 32 mm |
| Pipe locking: | no |
| Pipe locking optional: | no |
| Inlet from the rear: | no |
| Number of inlets: | 6 |
| Number of included spouts: | 6 |
| Material: | Plastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Colour: | Grey |
| Degree of protection (IP): | IP65 |
| Degree of protection (NEMA): | 4X |
| Cover model: | Suitable for snap-in connector (manufacturer specific) |
| Transparent cover: | no |
| Cover attachment: | Screwed |
| Sealable: | no |
| Circuit integrity: | None |
| With screening: | no |
| Air tight: | yes |
| Max. conductor cross section: | 32 mm² |
| Number of poles of the clamp: | 0 |
| Clamp position fixed: | no |
| Luminaire hook mounting: | no |
| Nozzle: | Other |
| Special application: | Other |
| With partition panel: | no |
