PI-M666 IP66 3P Puszka instalacyjna natynkowa czarna
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 63.66 |
| GTIN(EAN) | 5905548289977 |
| Price unit | piece |
| Catalog price | 9,74 zł (7,92 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

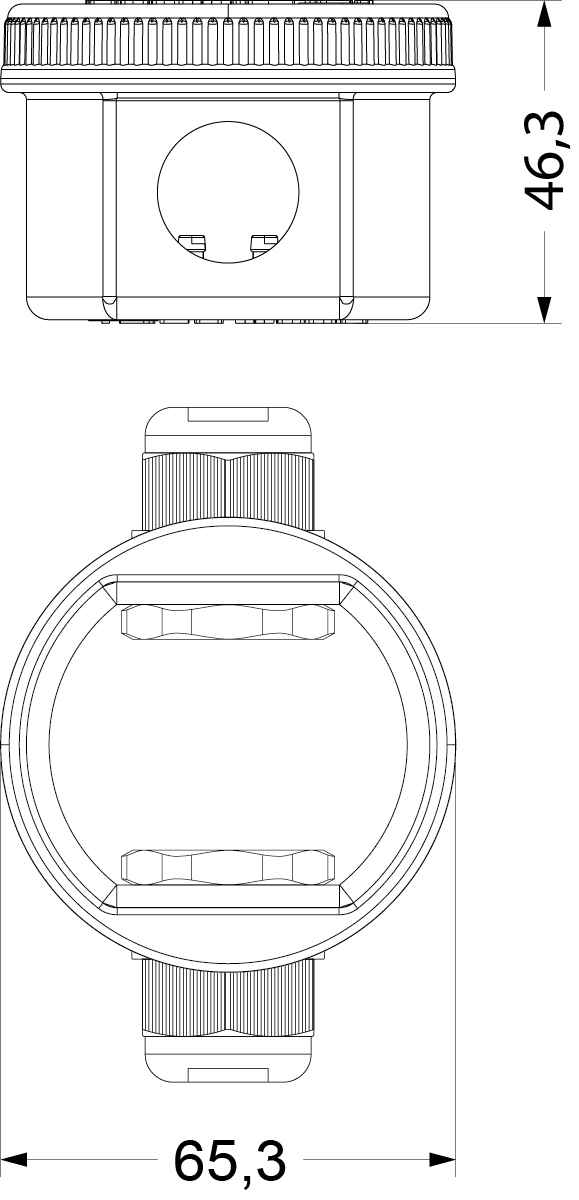

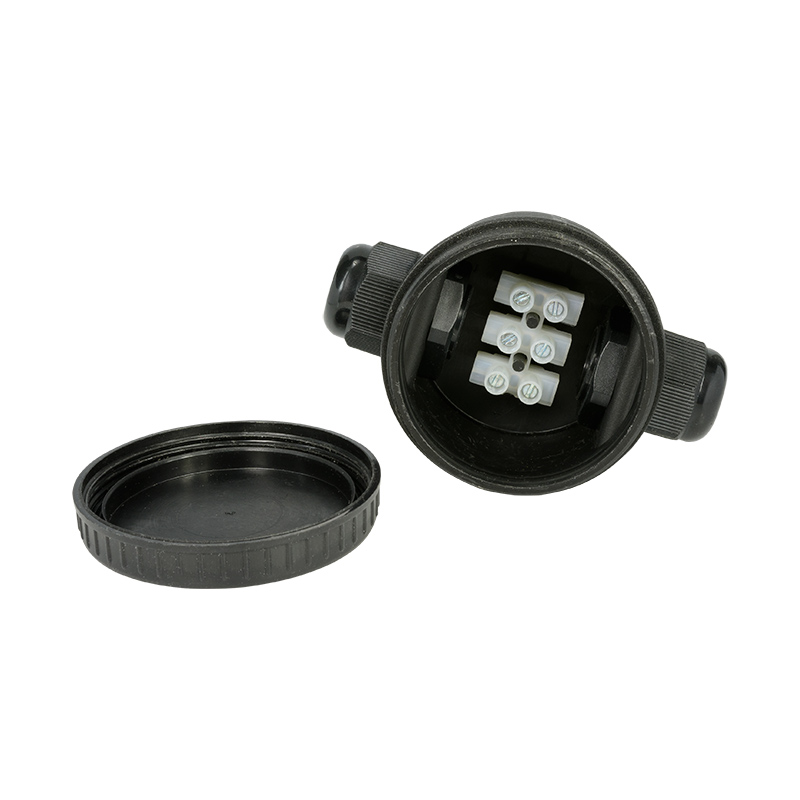

Puszka instalacyjna natynkowa PI-M666 hermetyczna to produkt, który charakteryzuje się wysoką jakością wykonania oraz niezwykłą odpornością na działanie czynników zewnętrznych. Jest to puszka o średnicy 64mm i głębokości 48 mm z pokrywką zakręcaną na gwint oraz wyposażona w dwie dławice skręcane dla kabli od 5mm do 10mm. Klasa szczelności IP66, co oznacza, że jest całkowicie chroniona przed pyłem oraz wodą podczas krótkotrwałego zanurzenia.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Model: | Mounting box |
| Max. conductor cross section: | 10 mm² |
| Equipped with: | Screwed terminal |
| Shape: | Round |
| Mounting method: | Universal |
| Mounting in the soil: | no |
| Mounting under water: | no |
| For tube diameter: | Other |
| Inlet from the rear: | no |
| Depth: | 48 mm |
| Diameter: | 64 mm |
| Tackable: | no |
| Number of inlets: | 2 |
| Type of housing feed-through: | Thread and closing membrane |
| Material: | Plastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Colour: | Black |
| Degree of protection (IP): | IP66 |
| Degree of protection (NEMA): | 4X |
| Cover model: | Suitable for snap-in connector (manufacturer specific) |
| Transparent cover: | no |
| Cover attachment: | Other |
| Castable: | no |
| With casting compound: | no |
| Sealable: | no |
| Rated insulation voltage Ui: | 250 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | yes |
| Operating temperature: | -40 - 85 °C |
| Explosion-tested version: | yes |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
