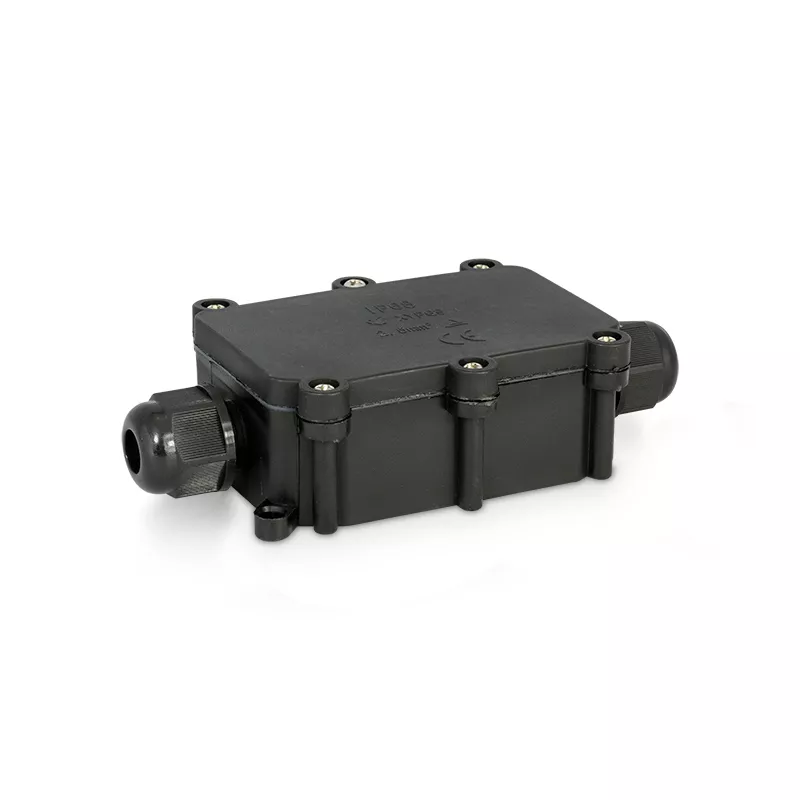

PI2P puszka IP68 PG9-2P czarna
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 63.2 |
| GTIN(EAN) | 5905548284583 |
| Price unit | piece |
| Catalog price | 11,02 zł (8,96 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

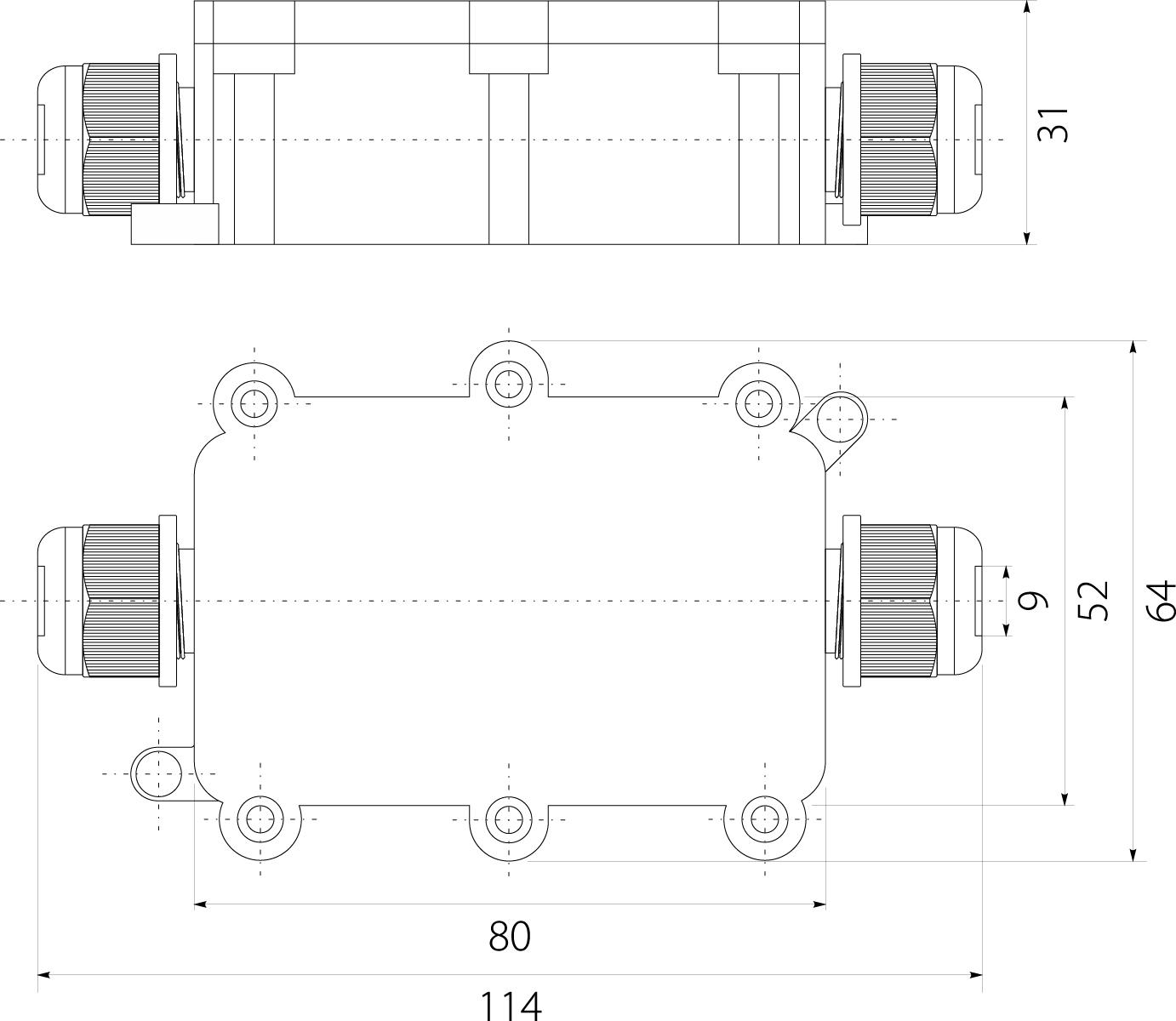

Puszki Instalacyjne PI2P i PI3P zabezpieczone uszczelkami są w pełni hermetyczne, posiadają stopień ochrony IP68. Wyposażone są w listwy do przewodów 4x2.5mm² (zaciski śrubowe). Puszki są wykonane z solidnego tworzywa w kolorze czarnym, posiadają zewnętrzne uchwyty montażowe i pokrywy z uszczelką mocowane na wkręty. Model PI2P ma dwa wloty kablowe z dławikami PG9, puszka PI3P ma ich trzy. Wymiary puszek to 80x52x31mm (bez dławików). Napięcie maksymalne wynosi AC 450V, prąd maksymalny to 24A. Pozytywnie przeszły test certyfikacyjny CE.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 78 g |
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Max. conductor cross section: | 2.5 mm² |
| Equipped with: | Other |
| Shape: | Rectangular |
| Mounting method: | Universal |
| Mounting in the soil: | yes |
| Mounting under water: | yes |
| Length: | 80 mm |
| Width: | 52 mm |
| Depth: | 31 mm |
| Tackable: | no |
| Number of inlets: | 2 |
| Type of housing feed-through: | Thread and closing membrane |
| Halogen free: | yes |
| Colour: | Black |
| Degree of protection (IP): | IP68 |
| Cover attachment: | Screwed |
| Castable: | yes |
| With casting compound: | no |
| Rated insulation voltage Ui: | 250 V |
| Operating temperature: | -40 - 85 °C |
