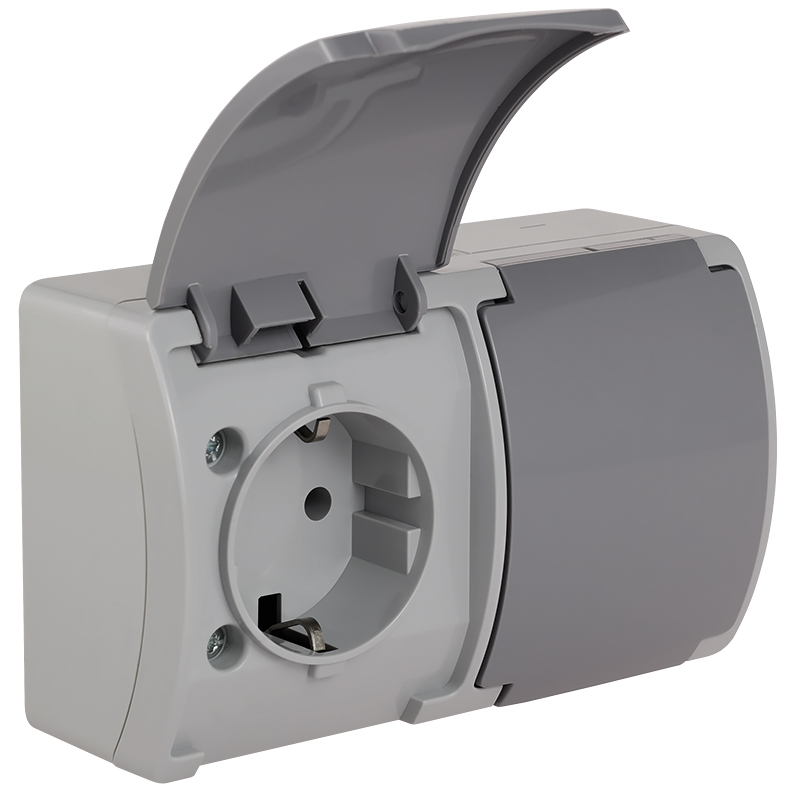

Koala Gniazdo podwójne 2x2P+Z SCHUKO n/t IP44 popiel z klapk.grafit VG 182-08
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 61.399 |
GTIN(EAN) | 5901769016255 |
Price unit | piece |
Catalog price | 34,59 zł (28,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 148 g |
Gross weight: | 161 g |
ETIM class: | Socket outlet |
Number of active contacts (round): | 4 |
Number of active contacts (flat): | 0 |
With signal lamp: | no |
Number of units: | 2 |
Number of modules (module system): | 0 |
Number of socket outlets switchable: | 0 |
Number of phases: | 1 |
Imprint/indication: | None |
Connection type: | Screwed terminal |
With hinged lid: | yes |
With enhanced contact protection: | no |
Label space/information surface: | no |
Colour: | Grey |
Transparent: | no |
Lockable: | no |
Eject-mechanism: | no |
Insulated mounting: | yes |
With function lighting: | no |
With orientation lighting: | no |
Over voltage protection: | no |
Fault current protection: | no |
With miniature fuse: | no |
Special power supply: | Other |
Mounting method: | Surface mounted |
Type of fastening: | Mounting with screw |
Material: | Plastic |
Material quality: | Thermoplastic |
Halogen free: | yes |
Surface protection: | Untreated |
Surface finishing: | Glossy |
Anti-bacterial treatment: | no |
With loop through function: | no |
With on/off switch: | no |
Rotated central insert: | no |
Nominal current: | 16 A |
Nominal voltage: | 250 V |
Frequency: | 45 - 55 Hz |
Rated fault current: | 30 mA |
Suitable for degree of protection (IP): | IP44 |

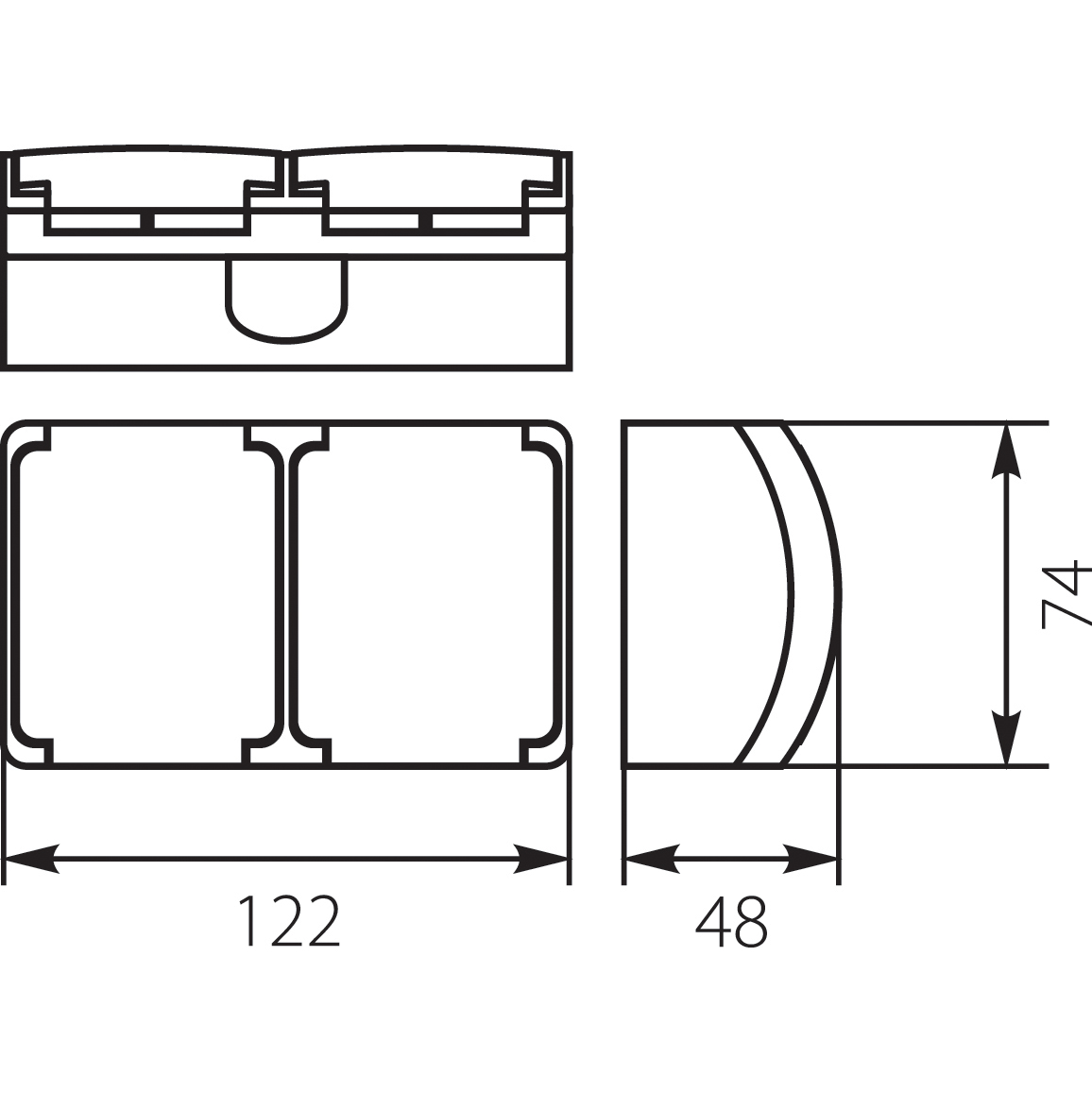

Device width: | 122 mm |
Device height: | 74 mm |
Device depth: | 48 mm |
Min. depth of built-in installation box: | 0 mm |
