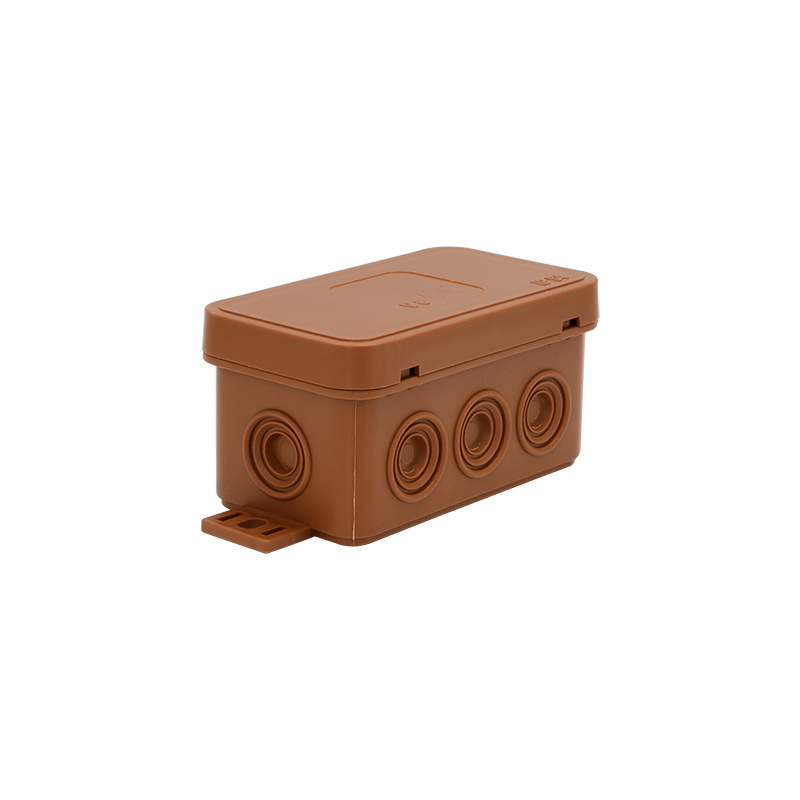

Puszka n/t 80x45x41 IP54 8-wl V8 brązowa
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 61.3802 |
| GTIN(EAN) | 5901769018938 |
| Price unit | piece |
| Catalog price | 5,26 zł (4,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka instalacyjna natynkowa V8 dostępna w czterech kolorach: białym, brązowym, szarym oraz czarnym. Jej atutem jest wysoki stopień bryzgoszczelności IP54 i odporność na uderzenia IK07 przy niewielkich wymiarach 45x80x41 mm. Puszka jest wyposażona w zewnętrzne uchwyty do montażu natynkowego Wykonana z tworzywa PP (polipropylen) posiada 8 gumowych dławnic (bezgwintowych) oraz dekielek na zatrzask (tzw. klik-klak), nie jest wyposażona w zaciski. Przystosowana do pracy z napięciem do 400V.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 30 g |
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Max. conductor cross section: | 4 mm² |
| Shape: | Rectangular |
| Mounting method: | Universal |
| Mounting in the soil: | no |
| Mounting under water: | no |
| For tube diameter: | 16/19 mm |
| Inlet from the rear: | no |

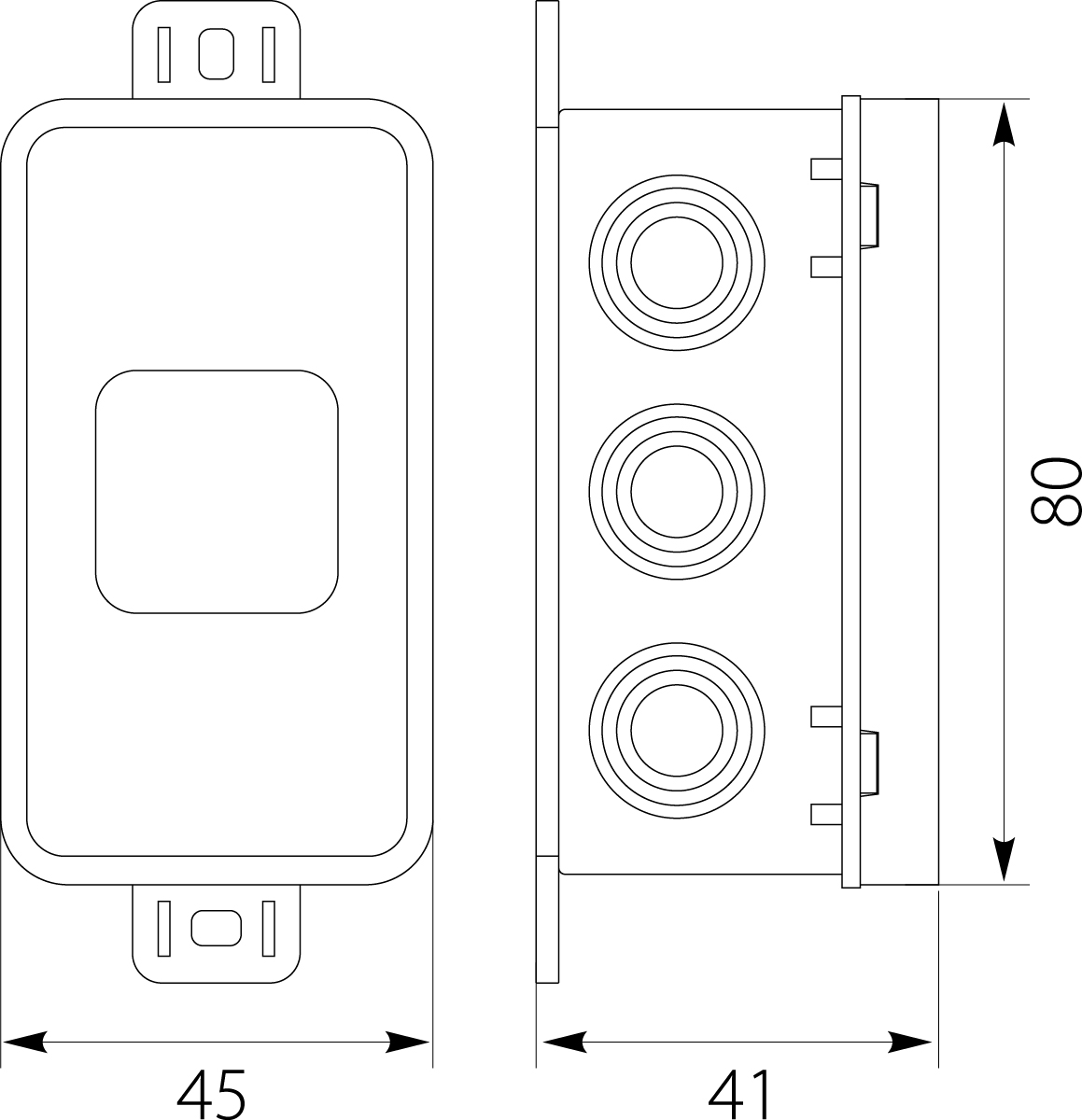

| Length: | 80 mm |
| Width: | 45 mm |
| Depth: | 41 mm |
| Number of inlets: | 8 |
| Type of housing feed-through: | Preembossing |
| Material: | Plastic |
| Halogen free: | yes |
| Degree of protection (IP): | IP54 |
| Cover model: | Blind cover |
| Transparent cover: | no |
| Cover attachment: | Snapped on |
| Rated insulation voltage Ui: | 400 V |
| Weatherproof: | no |
| Explosion-tested version: | no |
