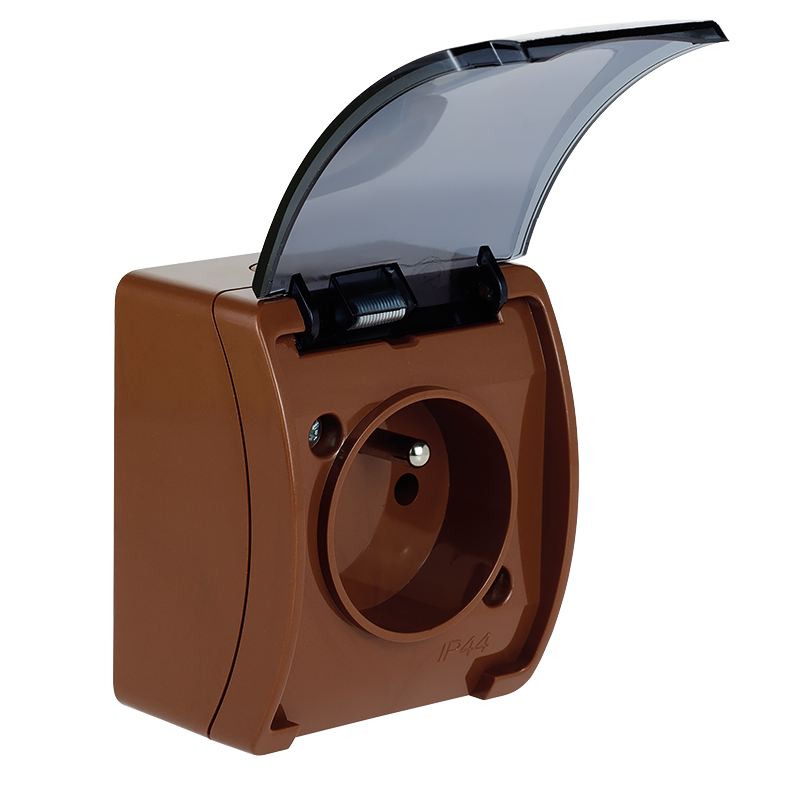

Koala Gniazdo pojedyncze z uziemieniem (2P+Z) n/t IP44 brąz z klapką dymną VG 161-52
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 61.377 |
| GTIN(EAN) | 5901769016033 |
| Price unit | piece |
| Catalog price | 19,59 zł (15,93 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 78 g |
| Gross weight: | 87 g |
| ETIM class: | Socket outlet |
| Model: | Earthing pin |
| Number of active contacts (round): | 2 |
| Number of active contacts (flat): | 0 |
| With signal lamp: | no |
| Number of units: | 1 |
| Number of modules (module system): | 0 |
| Number of socket outlets switchable: | 0 |
| Number of phases: | 1 |
| Imprint/indication: | None |
| Connection type: | Screwed terminal |
| With hinged lid: | yes |
| With enhanced contact protection: | no |
| Label space/information surface: | no |
| Colour: | Brown |
| Transparent: | yes |
| Lockable: | no |
| Eject-mechanism: | no |
| Insulated mounting: | yes |
| With function lighting: | no |
| With orientation lighting: | no |
| Over voltage protection: | no |
| Fault current protection: | no |
| With miniature fuse: | no |
| Special power supply: | Other |
| Mounting method: | Surface mounted |
| Type of fastening: | Mounting with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Surface finishing: | Glossy |
| Anti-bacterial treatment: | no |
| With loop through function: | no |
| With on/off switch: | no |
| Rotated central insert: | no |
| Nominal current: | 16 A |
| Nominal voltage: | 250 V |
| Frequency: | 45 - 55 Hz |
| Rated fault current: | 30 mA |
| Suitable for degree of protection (IP): | IP44 |

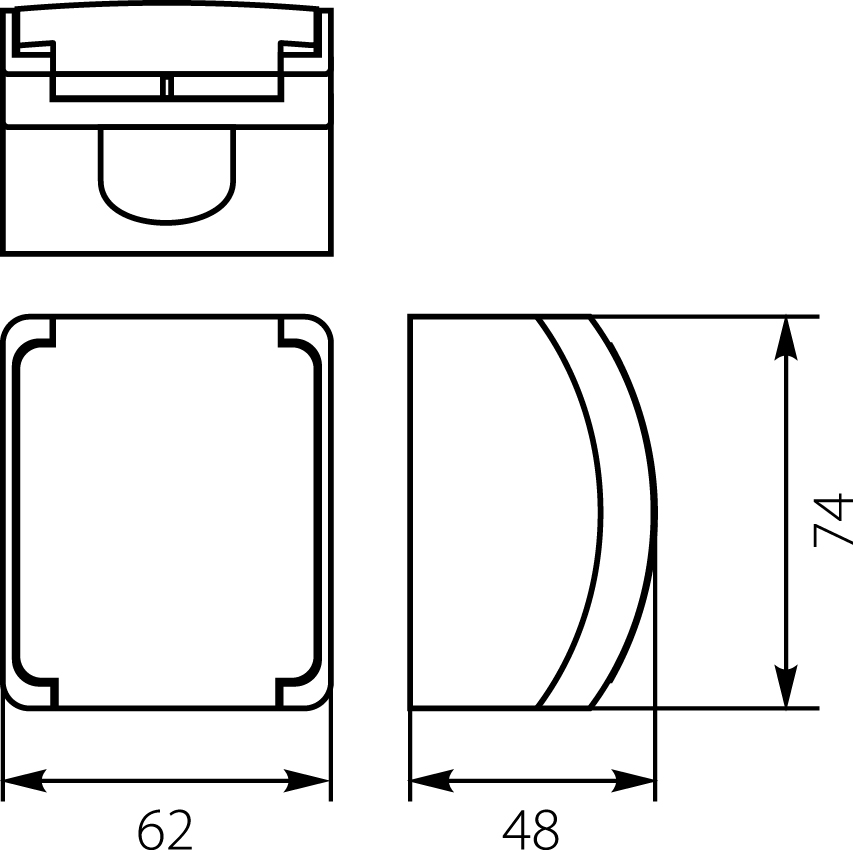

| Device width: | 62 mm |
| Device height: | 74 mm |
| Device depth: | 48 mm |
| Min. depth of built-in installation box: | 0 mm |
