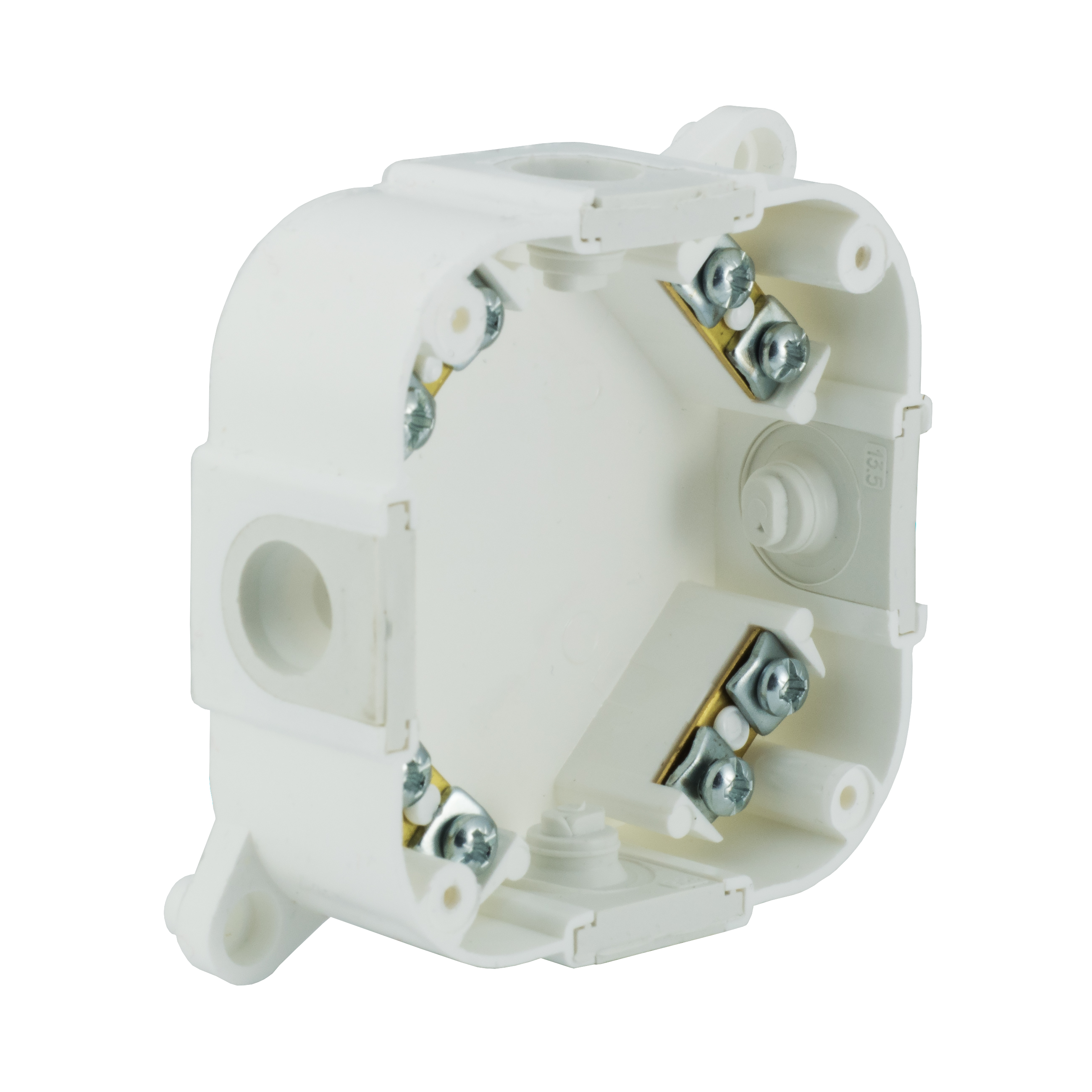

Puszka n/t 88x88x40mm IP44 400V z zac. biała VP 074-51
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 61.175 |
GTIN(EAN) | 5901769015159 |
Price unit | piece |
Catalog price | 9,58 zł (7,79 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 98 g |
Gross weight: | 98 g |
ETIM class: | Box/housing for surface mounting on the wall/ceiling |
Max. conductor cross section: | 4 mm² |
Shape: | Oval |
Mounting method: | Wall-/ceiling mounting |
Mounting in the soil: | no |
Mounting under water: | no |
For tube diameter: | 16/20 mm |
Inlet from the rear: | no |

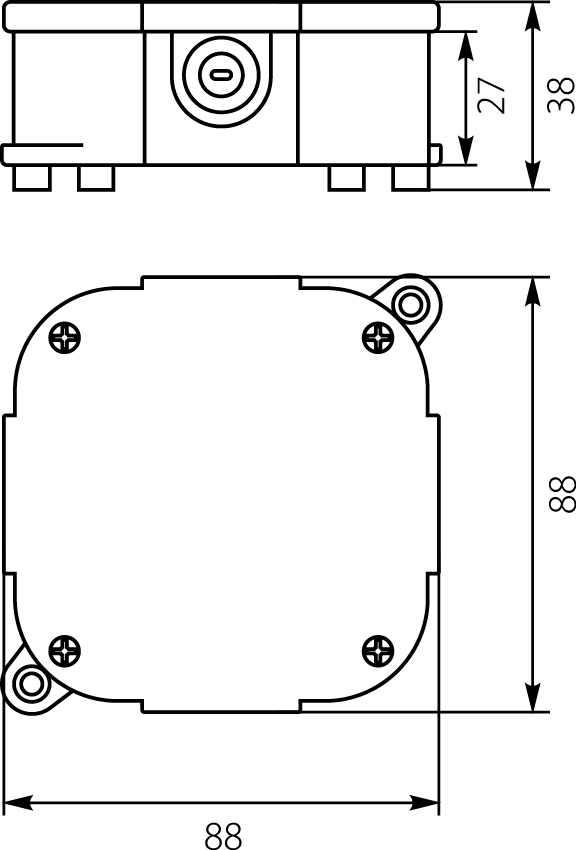

Length: | 88 mm |
Width: | 88 mm |
Depth: | 38 mm |
Diameter: | 0 mm |
Tackable: | no |
Number of inlets: | 4 |
Type of housing feed-through: | Seal membrane |
Material: | Plastic |
Halogen free: | yes |
Surface protection: | Untreated |
Colour: | White |
Degree of protection (IP): | IP44 |
Degree of protection (NEMA): | 2 |
Cover model: | Blind cover |
Transparent cover: | no |
Cover attachment: | Screwed |
Castable: | no |
With casting compound: | no |
Sealable: | no |
Rated insulation voltage Ui: | 400 V |
Circuit integrity: | None |
With screening: | no |
Weatherproof: | no |
Explosion-tested version: | no |
For Ex-zone gas: | None |
For Ex-Zone dust: | None |
