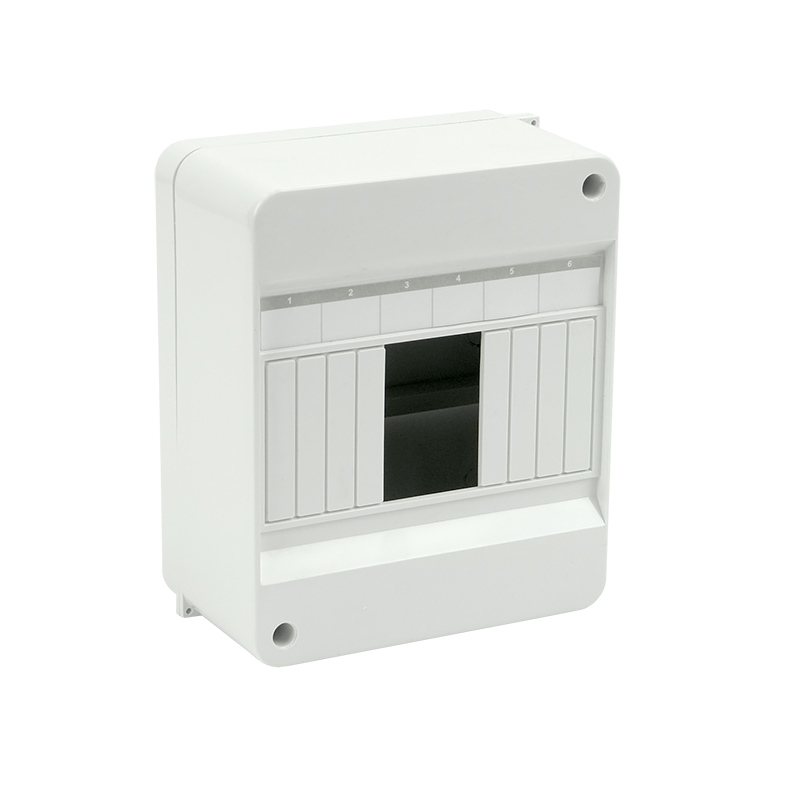

Rozdzielnica natynkowa - RNO-6 biała
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 5.6 |
| GTIN(EAN) | 5903978376991 |
| Price unit | piece |
| Catalog price | 10,68 zł (8,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
The switchgears are made of ABS plastic. They are adapted for indoor use. The switchgears have a closed box casing and are adapted to sealing. In the side parts of the housing, they have embossing for easy insertion of wires or installation pipes. The switchboards are equipped with descriptive labels. They also have N+PE terminal blocks. The mounting element in the switchgear is the TH 35/7.5 bracket (Eurorail), which allows for the installation of overcurrent protections, residual current circuit breakers and other electrical apparatus. In accordance with current standards, switchgears should be placed on flame-retardant walls by suitably qualified persons.
Fire Resistance Classification according to EN 13501-1 - "C"
Additional features:
| Information | Value |
|---|---|
| Net weight: | 140 g |
| Country of origin | Polska |
| ETIM class: | Small distribution board |
| Mounting method: | Surface mounted |
| Number of rows: | 1 |
| Width in number of modular spacings: | 6 |
| Type of covering: | None |
| Cover model: | With notch |
| With lock: | no |
| Housing material: | Plastic |
| Built-in depth: | 67 mm |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | no |
| EMC-version: | yes |
| Colour: | White |
| RAL-number: | 9 003 |
| Degree of protection (IP): | IP30 |

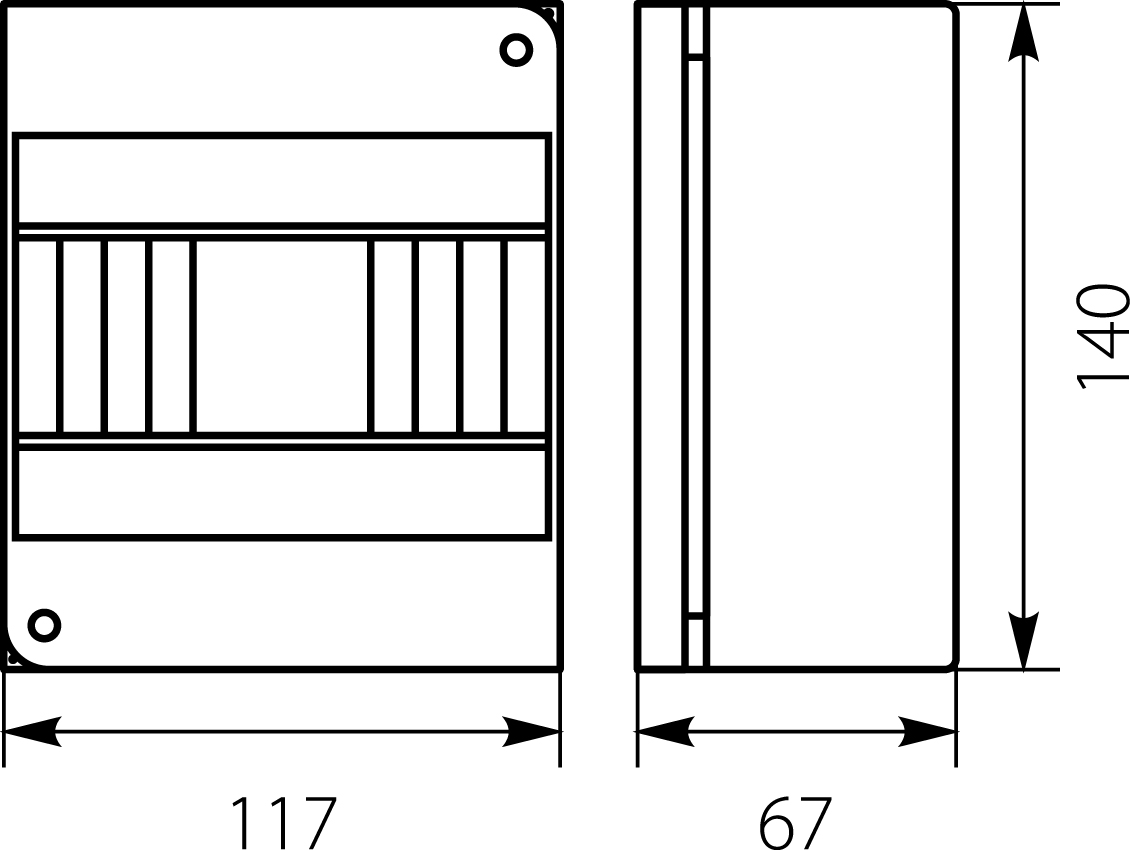

| Height: | 140 mm |
| Width: | 117 mm |
| Depth: | 67 mm |
| Built-in height: | 140 mm |
| Built-in width: | 117 mm |
| Earthing terminal block: | no |
| Neutral terminal block: | no |
