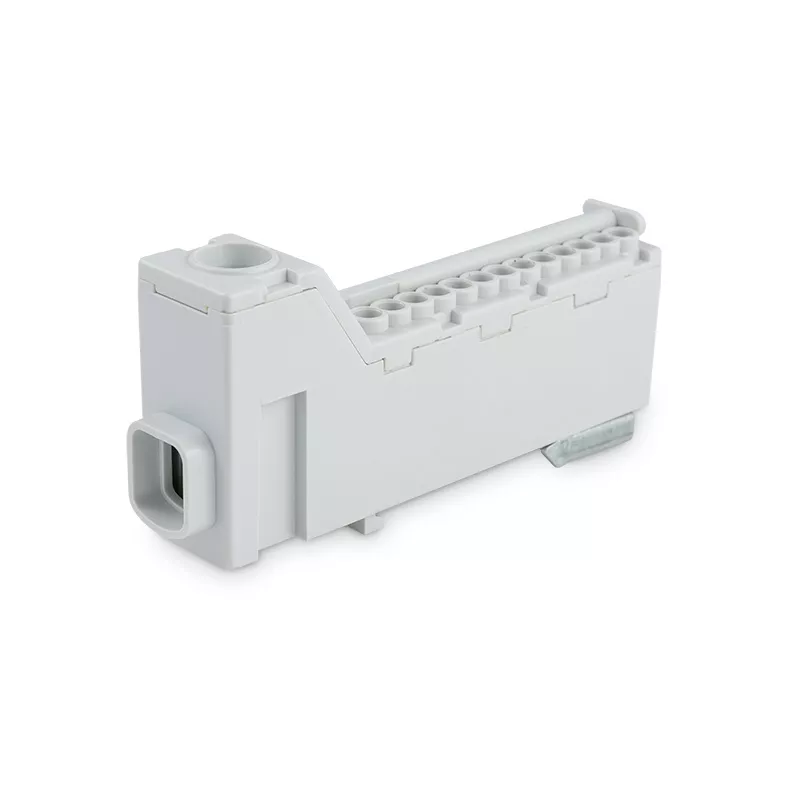

Blok bezgwintowy TLC14SZ 1,5-2,5 /25 szary
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 49.1401 |
| GTIN(EAN) | 5905548287379 |
| Price unit | piece |
| Catalog price | 36,57 zł (29,73 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok bezgwintowy TLC14 1,5-2,5 /25 służy do rozdziału punktu neutralnego (N) , do rozdziału przewodu ochronnego (PE) , lub można zastosować do rozdzielenia fazy (L). Blok do przewodów miedzianych sztywnych w zakresie 1,5-2,5mm2 .
Additional features:
| Information | Value |
|---|---|
| Net weight: | 50 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Nominal current: | 63 A |
| Connection type: | Screw-/spring clamp connection |
| Mounting method: | DIN rail |
| Number of inputs: | 1 |
| Number of outputs: | 13 |
| Suitable for solid conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | no |
| Conductor cross section, input: | 2.5 - 25 mm² |
| Conductor cross section, output: | 1.5 - 2.5 mm² |
| Contact safe: | yes |

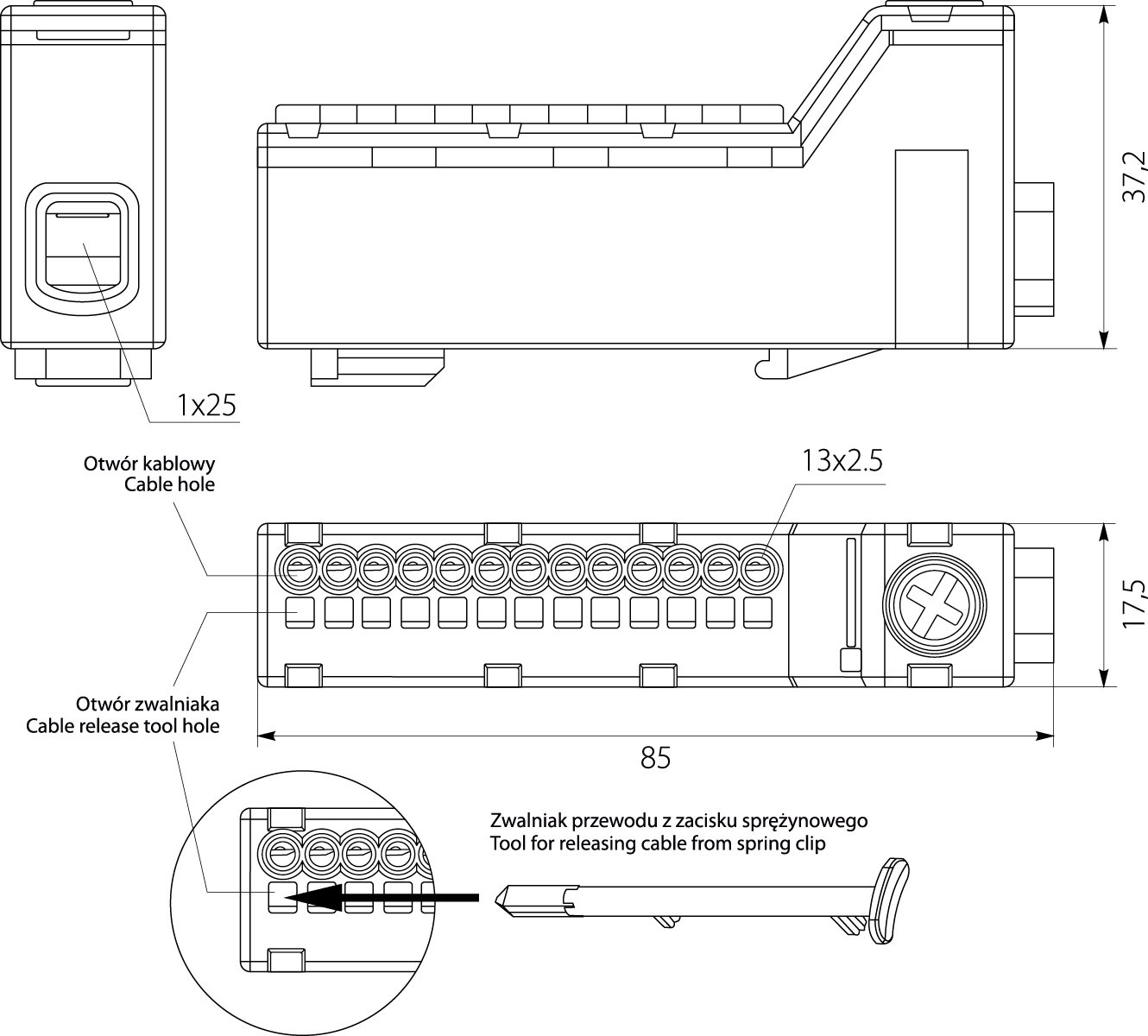

| Height: | 85 mm |
| Width: | 17.5 mm |
| Depth: | 37 mm |
Buy / order
Wholesaler
Address
Distance
Available
Actions
Grudziądz,
Droga Łąkowa 25
Distance:
Dostępność:
10 pc
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-29 12:51:10 |
| Files to download: |
