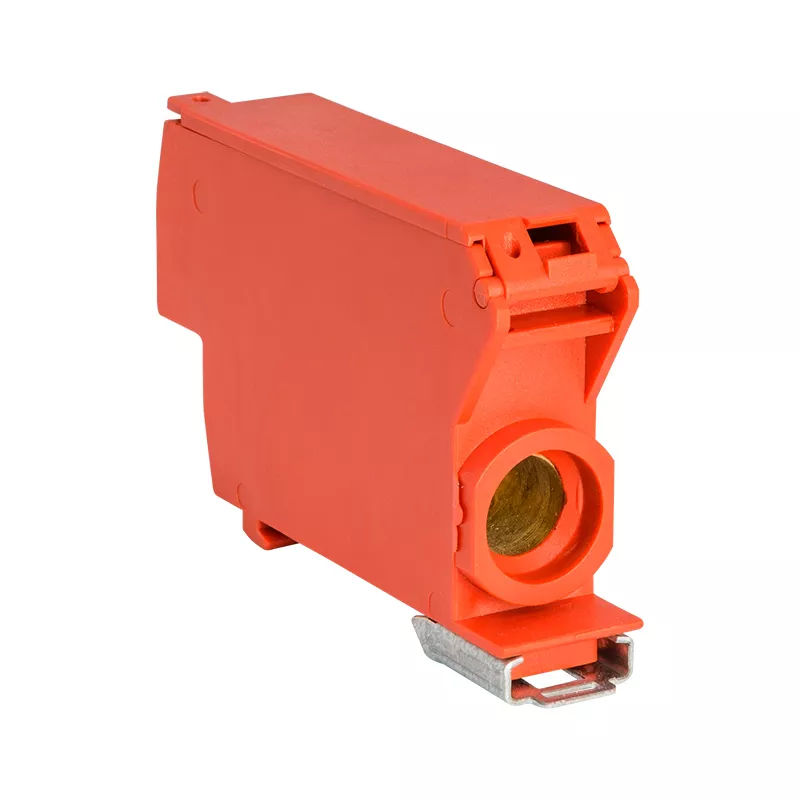

Blok rozdzielczy SDB-70/CZE czerwony
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 48.973 |
| GTIN(EAN) | 5901769011984 |
| Price unit | piece |
| Catalog price | 56,28 zł (45,76 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Bloki do zastosowań w połączeniach elektrotechnicznych w rozdzielnicach niskiego napięcia. Elementy zaciskowe gwintowane. Zakończenie przewodów nieobrobione lub przewody giętkie zakończone tulejką.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 112 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Nominal current: | 192 A |
| Connection type: | Screwing |
| Mounting method: | DIN rail |
| Number of inputs: | 1 |
| Number of outputs: | 4 |
| Suitable for solid conductors: | yes |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | no |
| Contact safe: | yes |
| Height: | 79.5 mm |
| Width: | 17.8 mm |
| Depth: | 50 mm |
