Blok rozdzielczy LK70/50-1P Z zielony
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 48.70503 |
| GTIN(EAN) | 5901769019171 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 34,54 zł / szt. (28,08 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

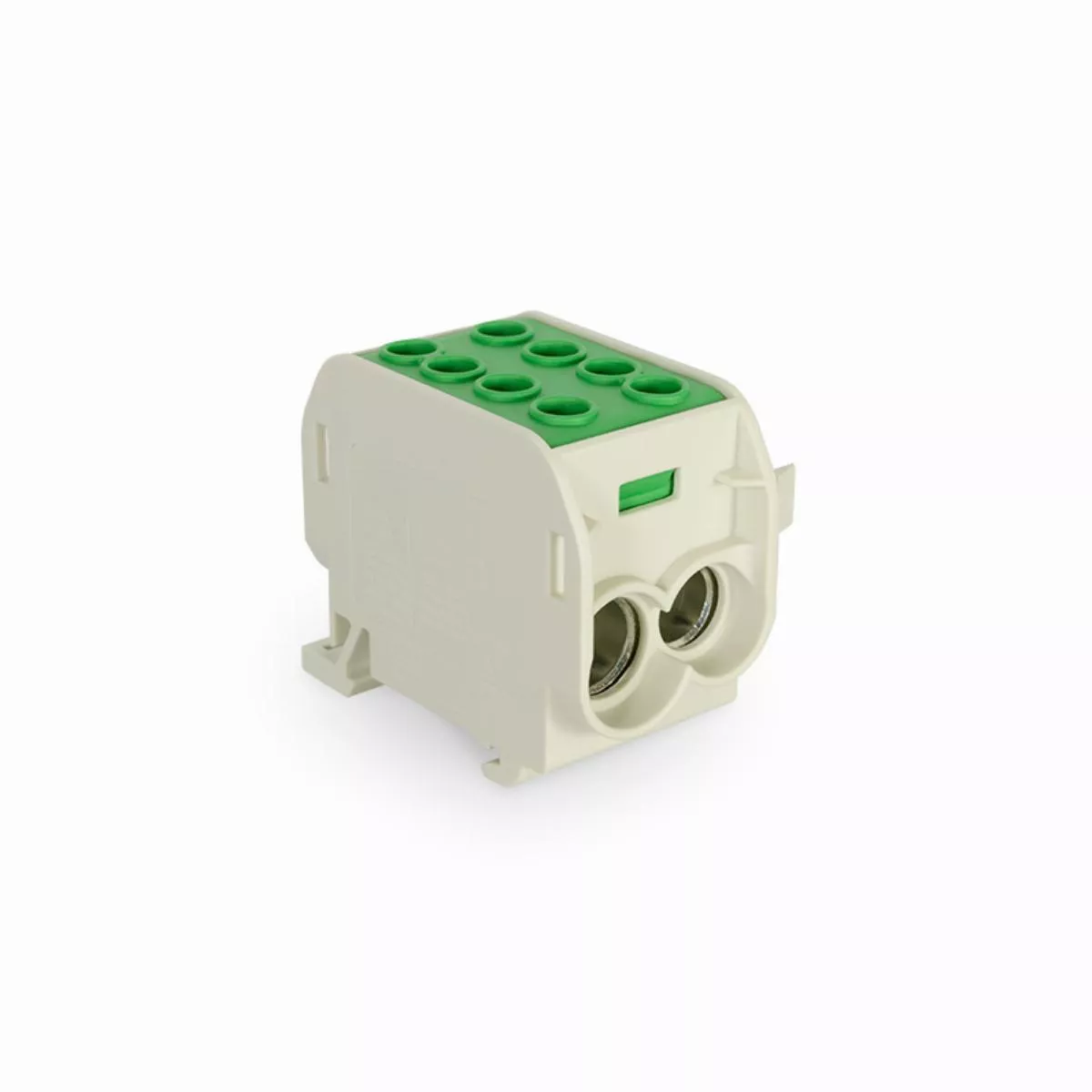

Bloki Rozdzielcze LK z cynowanymi wkładami mosiężnymi, przystosowane do montażu na euroszyne (TH35). Posiadają dwurzędowe zaciski śrubowe z kolorowymi pokrywami zabezpieczającymi. System modułowy pozwala na łączenie bloków ze sobą. Przeznaczone dla przewodów Al/Cu. Napięcie 1000V AC/DC Natężenie 192A Al 300A Cu.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 162 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Nominal current: | 192 A |
| Connection type: | Screwing |
| Mounting method: | DIN rail |
| Number of inputs: | 1 |
| Number of outputs: | 2 |
| Suitable for solid conductors: | yes |
| Suitable for fine strand conductors: | yes |
| Conductor cross section, input: | 10 - 70 mm² |
| Conductor cross section, output: | 6 - 50 mm² |
| Conductor cross section, input AWG: | 10 - 70 |
| Conductor cross section, output AWG: | 6 - 50 |
| Contact safe: | yes |

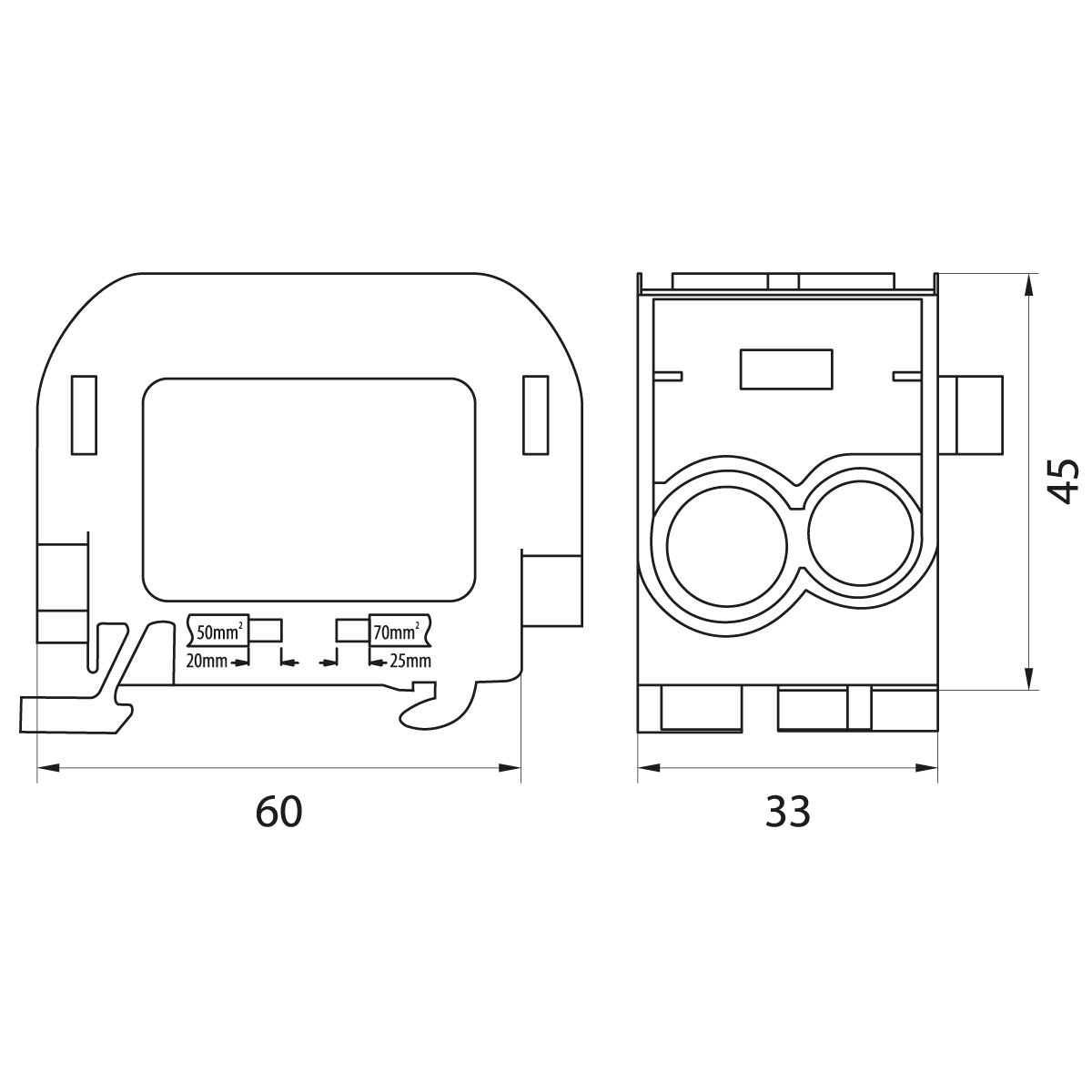

| Height: | 60 mm |
| Width: | 33 mm |
| Depth: | 45 mm |
